weBoost DRIVE 4G-X OTR User Manual

4
CELL PHONE SIGNAL BOOSTER
______

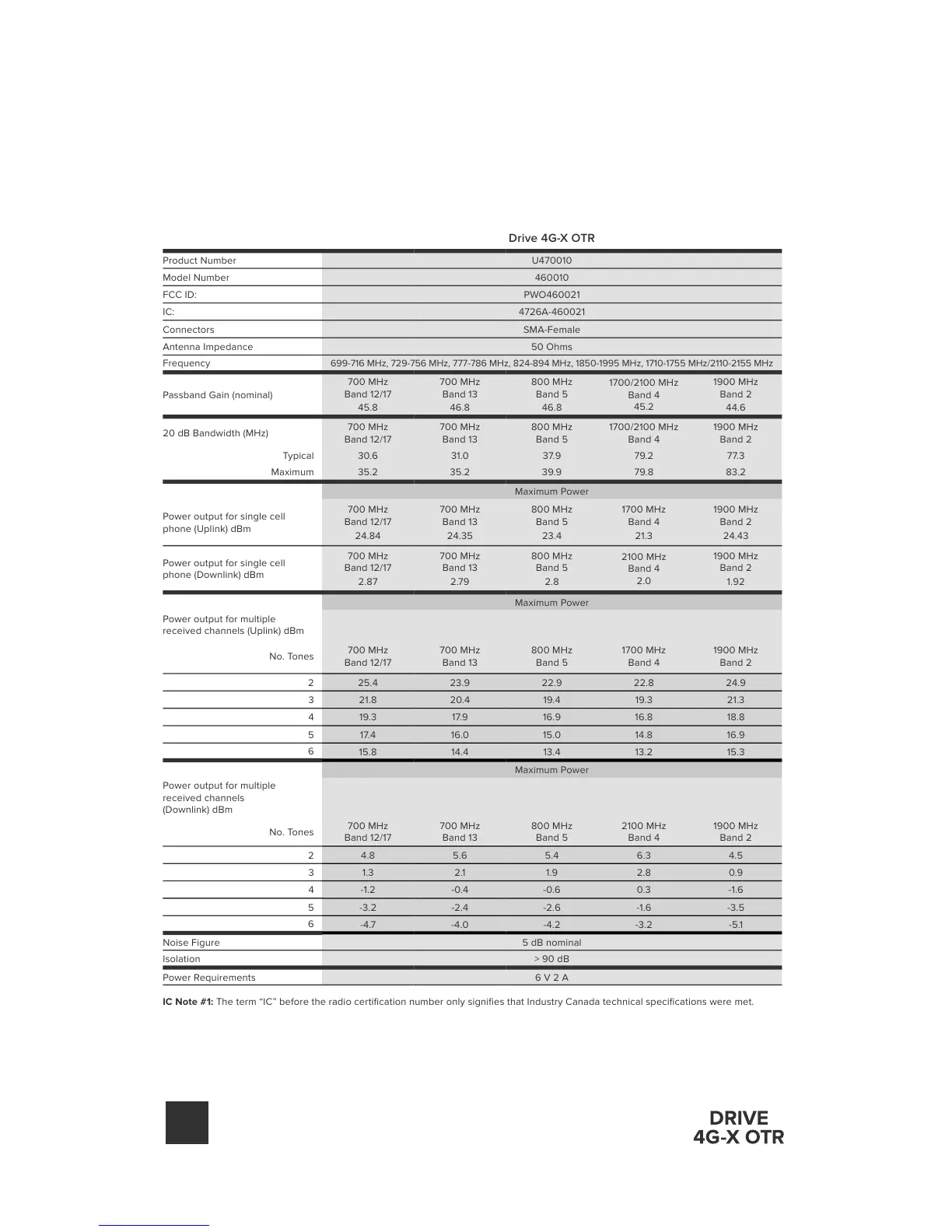

Specifications
Drive 4G-X OTR
Product Number U470010
Model Number 460010
FCC ID: PWO460021
IC: 4726A-460021
Connectors SMA-Female
Antenna Impedance 50 Ohms
Frequency
699-716 MHz, 729-756 MHz, 777-786 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755 MHz/2110-2155 MHz
Passband Gain (nominal)
700 MHz
Band 12/17
45.8
700 MHz
Band 13
46.8
800 MHz
Band 5
46.8
1700/2100 MHz
Band 4
45.2
1900 MHz
Band 2
44.6
20 dB Bandwidth (MHz)
700 MHz
Band 12/17
700 MHz
Band 13
800 MHz
Band 5
1700/2100 MHz
Band 4
1900 MHz
Band 2
Typical 30.6 31.0 37.9 79.2 77.3
Maximum 35.2 35.2 39.9 79.8 83.2
Maximum Power
Power output for single cell
phone (Uplink) dBm
700 MHz
Band 12/17
24.84
700 MHz
Band 13
24.35
800 MHz
Band 5
23.4
1700 MHz
Band 4
21.3
1900 MHz
Band 2
24.43
Power output for single cell
phone (Downlink) dBm
700 MHz
Band 12/17
2.87
700 MHz
Band 13
2.79
800 MHz
Band 5
2.8
2100 MHz
Band 4
2.0
1900 MHz
Band 2
1.92
Maximum Power
Power output for multiple
received channels (Uplink) dBm
No. Tones
700 MHz
Band 12/17
700 MHz
Band 13
800 MHz
Band 5
1700 MHz
Band 4
1900 MHz
Band 2
2 25.4 23.9 22.9 22.8 24.9
3 21.8 20.4 19.4 19.3 21.3
4 19.3 17.9 16.9 16.8 18.8
5 17.4 16.0 15.0 14.8 16.9
6
15.8 14.4 13.4 13.2 15.3
Maximum Power
Power output for multiple
received channels
(Downlink) dBm
No. Tones
700 MHz
Band 12/17
700 MHz
Band 13
800 MHz
Band 5
2100 MHz
Band 4
1900 MHz
Band 2
2 4.8 5.6 5.4 6.3 4.5
3 1.3 2.1 1.9 2.8 0.9
4 -1.2 -0.4 -0.6 0.3 -1.6
5 -3.2 -2.4 -2.6 -1.6 -3.5
6
-4.7 -4.0 -4.2 -3.2 -5.1
Noise Figure
5 dB nominal
Isolation > 90 dB
Power Requirements 6 V 2 A
IC Note #1: The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met.

weBoost DRIVE 4G-X OTR Specifications

General

Brand	weBoost
Model	DRIVE 4G-X OTR
Category	Extender
Language	English
