8
CELL PHONE SIGNAL BOOSTER HOME MULTIROOM
______

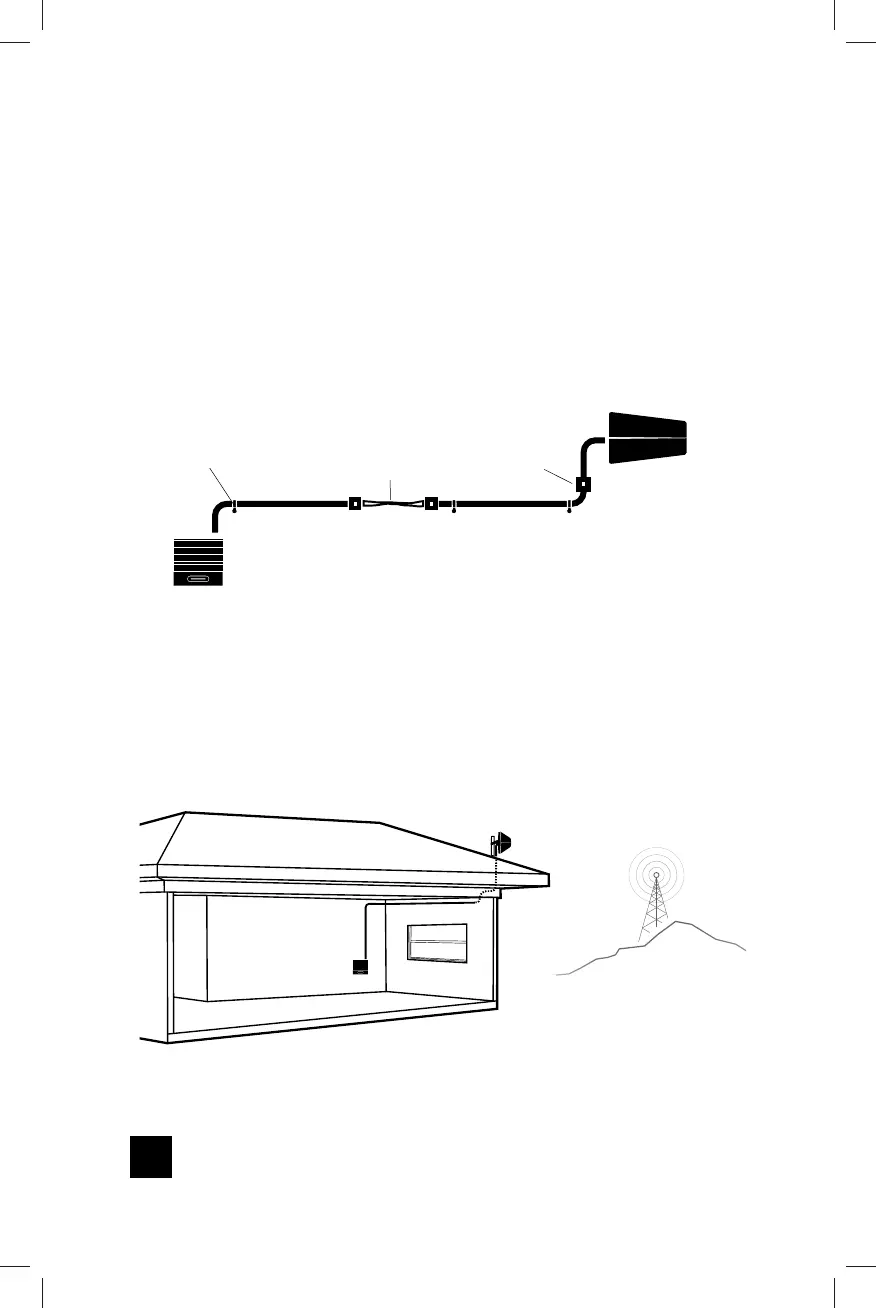

Step 3-A: Route & Connect
Outside Antenna To Booster
The greater the separation, the better
the Booster performance
Connect the white RG-6 Cable to Outside Antenna and route cable
into the home. A Window Entry Cable is provided to help make cable
entry easier. All connections should be finger tightened only.
Route cable to the Home MultiRoom Booster and connect to the port
labeled ‘OUTSIDE ANTENNA’.
Outside
Antenna
connection
Window Entry
Cable
15’ RG-6 Cable15’ RG-6 Cable
Outside
Antenna
Cell
Tower
Booster
Booster
Cable Mounting Clips
provided
BU-GDE000144-003-012120.indd 8BU-GDE000144-003-012120.indd 8 1/21/2020 3:34:14 PM1/21/2020 3:34:14 PM
