7
Theextensioncordusedtoreachthe
power source must be:
D Specifically marked as suitable for out-
door use. The cord must be marked with
thesuffix“W-A”(inCanada“W”).
D Heavy enough to carry full current from
the power source to the unit. Otherwise,
loss of power and overheating can occur
causing damage to unit. Refer to table for
minimum wire ga uge recommendations.
The cord must be marked with the proper
wire gauge. (Appropriate extension cords
are available.) Do not use multiple cords.
D In good condition. Cord insulation must
be intact with no cracks or deterioration.
Plug connectors must be undamaged.
DO NOT use multiple cords.
MINIMUM WIRE GAUGE
RECOMMENDATIONS
VOL TS
25 FT. 50 FT. 100 FT.
120 16
A.W.G.*
16
A.W.G.*
*American Wire Gauge
14
A.W.G.*

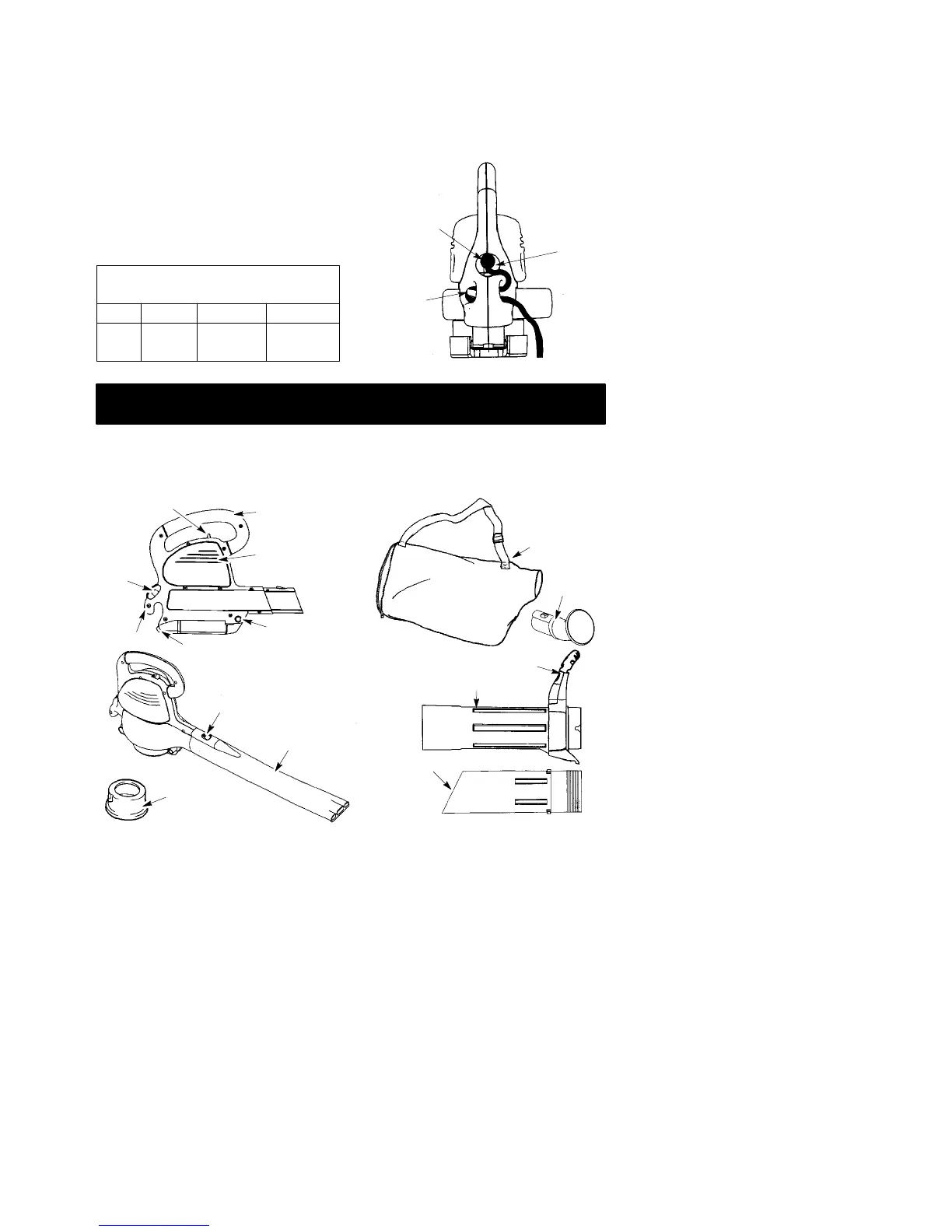

Secur e the extension cord t o the unit by
threading the cord through the cord re-
tainer (see illustration). Insert the cord
re ceptacle into the rece sse d plug.
CAUTION: Failuretousecordretain-
er could result in damage to the unit,
extension cord, or both.
Cord
Retainer
Cord
Receptacle
Recessed
Plug
on Unit
USING YOUR UNIT
KNOW YOUR ELECTRIC BLOWER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT.
Compare the illustrations to your unit to familiarize yourself with the location of
the various controls and adjustments. Save this man ual for futu re reference.
Top Handle
Air V ents
ON
OFF Switch
Inlet Cover
Latch
Rear
Handle
Upper V acuum T ube
Lower Vacuum Tube
Collection Bag
Blower Tube
Cord
Retainer
Inlet Restrictor
Vacuum Assist Handle
Tube Release Button
Elbow
Tube
Upper Vacuum Tube
Retaining Post
ON/OFF SWITCH
The
ON/OFF SWITCH is used to activate
the motor.
INLET COVER LATCH
The INLET COVER LATCH is used to open
and close the inlet cover and to secure
the upper vacuum tube to the blower
unit.
