Weed Eater VIP HDF550A - Handle Assembly

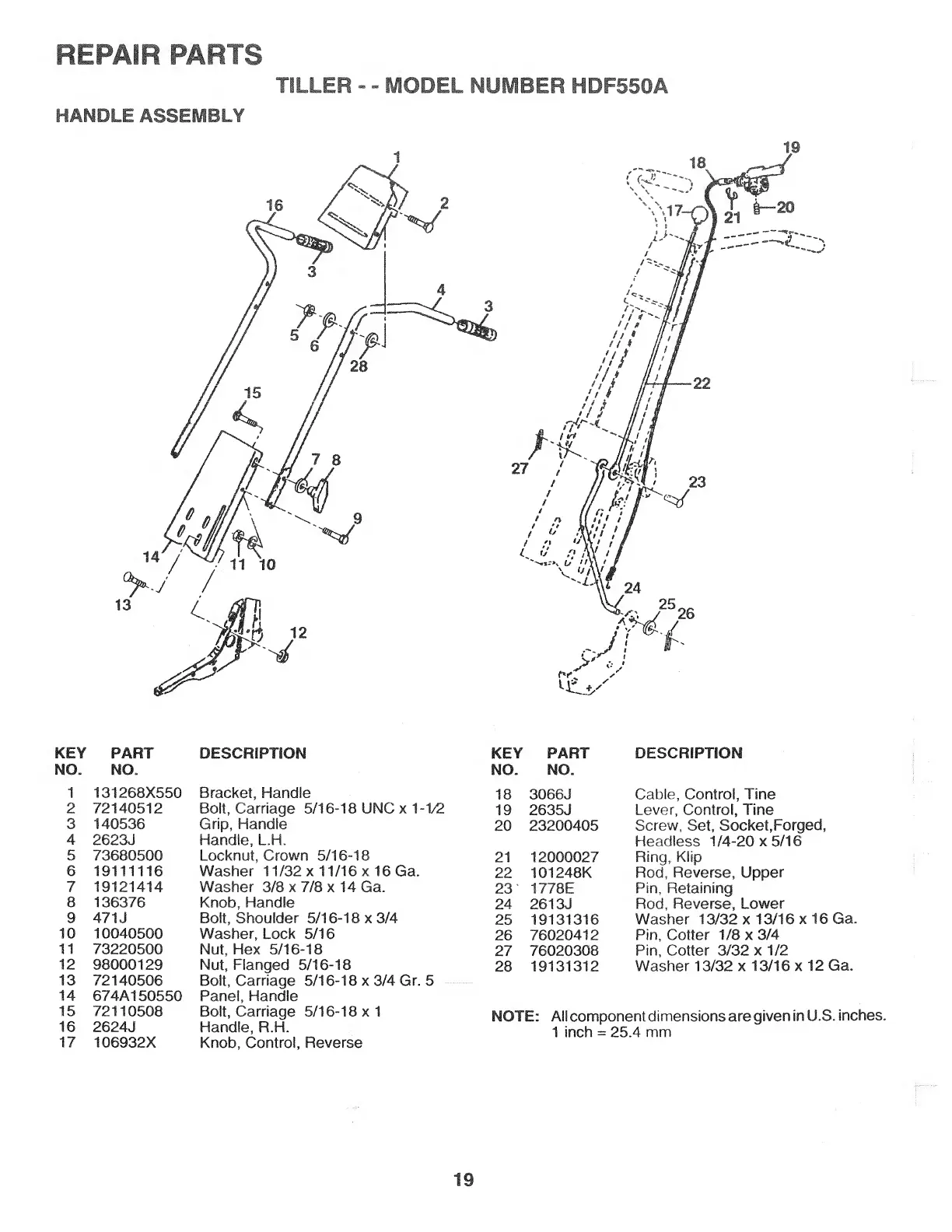

HANDLE ASSEMBLY
TILLER " - MODEL NUMBER HDF 550 A
KEY PART DESCRIPTION
NO. NO.
1 131268X550 Bracket, Handle
2 72140512 Bolt, Carriage 5/16-18 UNC x 1-1/2
3 140536 Grip, Handle
4 2623J Handle, L.H.
5 73680500 Locknut, Crown 5/16-18
6 19111116 Washer 11/32 x 11/16 x 16 Ga.
7 19121414 Washer 3/8 x 7/8 x 14 Ga.
8 136376 Knob, Handle
9 471J Bolt, Shoulder 5/16-18x3/4
10 10040500 Washer, Lock 5/16
11 73220500 Nut, Hex 5/16-18
12 98000129 Nut, Flanged 5/16-18
13 72140506 Bolt, Carriage 5/16-18 x 3/4 Gr. 5
14 674A150550 Panel, Handle
15 72110508 Bolt, Carriage 5/16-18x1
16 2624J Handle, R.H.
17 106932X Knob, Control, Reverse
KEY PART DESCRIPTION
NO. NO.
18 3066J Cable, Control, Tine
19 2635J Lever, Control, Tine
20 23200405 Screw, Set, Socket,Forged,
Headless 1/4-20x5/16
21 12000027 Ring, Klip
22 101248K Rod, Reverse, Upper
23 1778E Pin, Retaining
24 2613J Rod, Reverse, Lower
25 19131316 Washer 13/32 x 13/16 x 16 Ga.
26 76020412 Pin, Cotter 1/8 x 3/4
27 76020308 Pin, Cotter 3/32 x 1/2
28 19131312 Washer 13/32 X 13/16 X 12 Ga.
NOTE: All component dimensions are given in U.S. inches.
1 inch = 25.4 mm
19
