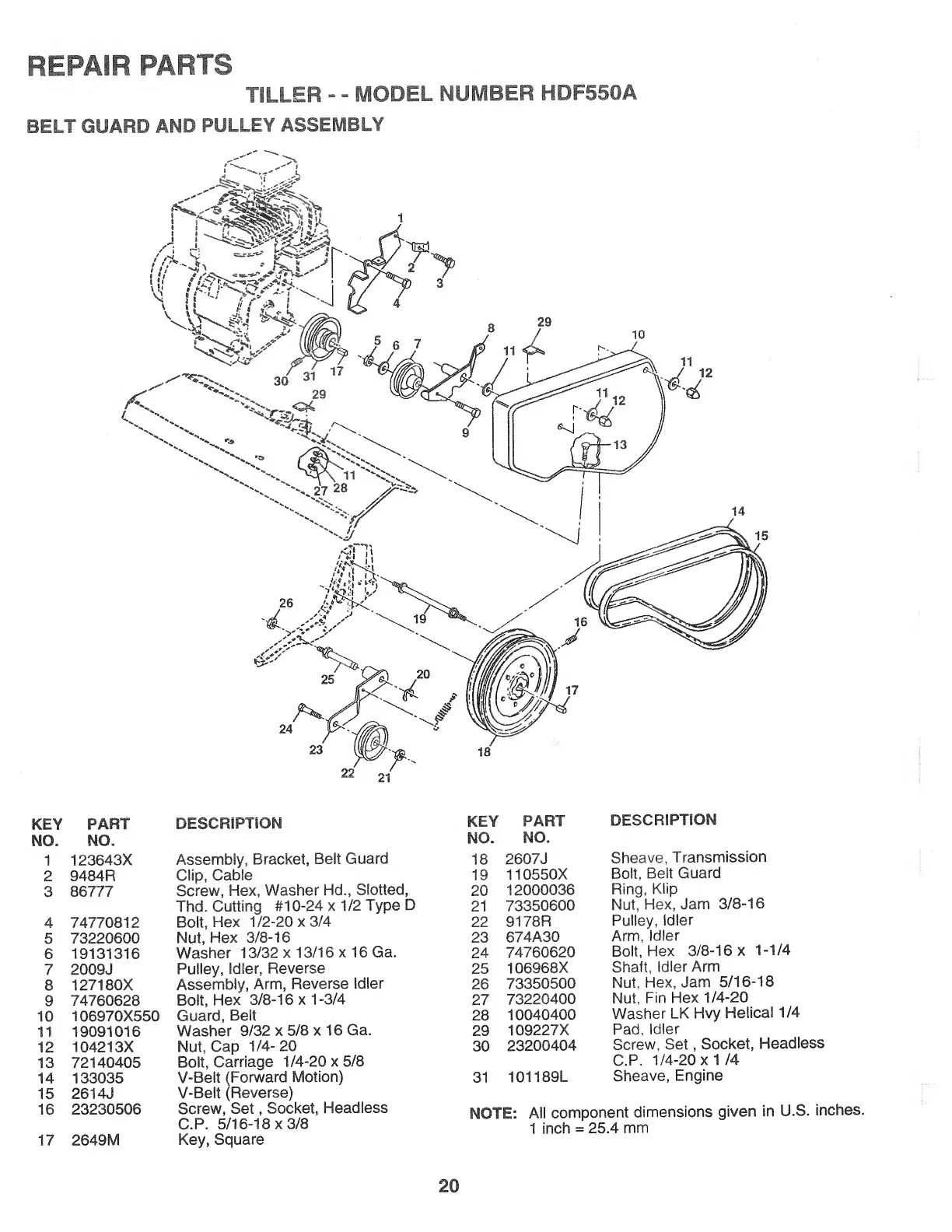

REPAIR PARTS
TILLER - - MODEL NUMBER HDF550A
BELT GUARD AND PULLEY ASSEMBLY
NO.
PART
NO.
DESCRIPTION
1 123643X
Assembly, Bracket, Belt Guard
2 9484R
Clip, Cable
3
86777
Screw, Hex, Washer Hd., Slotted,
Thd. Cutting #10-24 x 1/2 Type D
4 74770812
Bolt, Hex 1/2-20x3/4
5 73220600
Nut, Hex 3/8-16
6 19131316
Washer 13/32 x 13/16 x 16 Ga.
7 2009J
Pulley, Idler, Reverse
8
1271BOX
Assembly, Arm, Reverse Idler
9
74760628
Bolt, Hex 3/8-16x1-3/4
10
106970X550
Guard, Belt
11
19091016
Washer 9/32 x 5/8 x 16 Ga.
12
104213X
Nut, Cap 1/4-20
13
72140405
Bolt, Carriage 1/4-20 x 5/8
14 133035
V-Belt (Forward Motion)
15
2614J
V-Belt (Reverse)
16
23230506
Screw, Set, Socket, Headless
C.P. 5/16-18x3/8
17
2649M
Key, Square
KEY
NO.
PART
NO.
DESCRIPTION
18
2607J
Sheave, Transmission
19
110550X
Bolt, Belt Guard
20
12000036
Ring, Klip
21
73350600
Nut, Hex, Jam 3/8-16
22
9178R
Pulley, Idler
23
674A30
Arm, Idler
24
74760620
Bolt, Hex 3/8-16 X 1-1/4
25
106968X
Shaft, Idler Arm
26
73350500
Nut, Hex, Jam 5/16-18
27
73220400
Nut, Fin Hex 1/4-20
28
10040400
Washer LK Hvy Helical 1/4
29
109227X
Pad, Idler
30
23200404
Screw, Set, Socket, Headless
C.P. 1/4-20x1/4
31
101189L
Sheave, Engine
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
20
