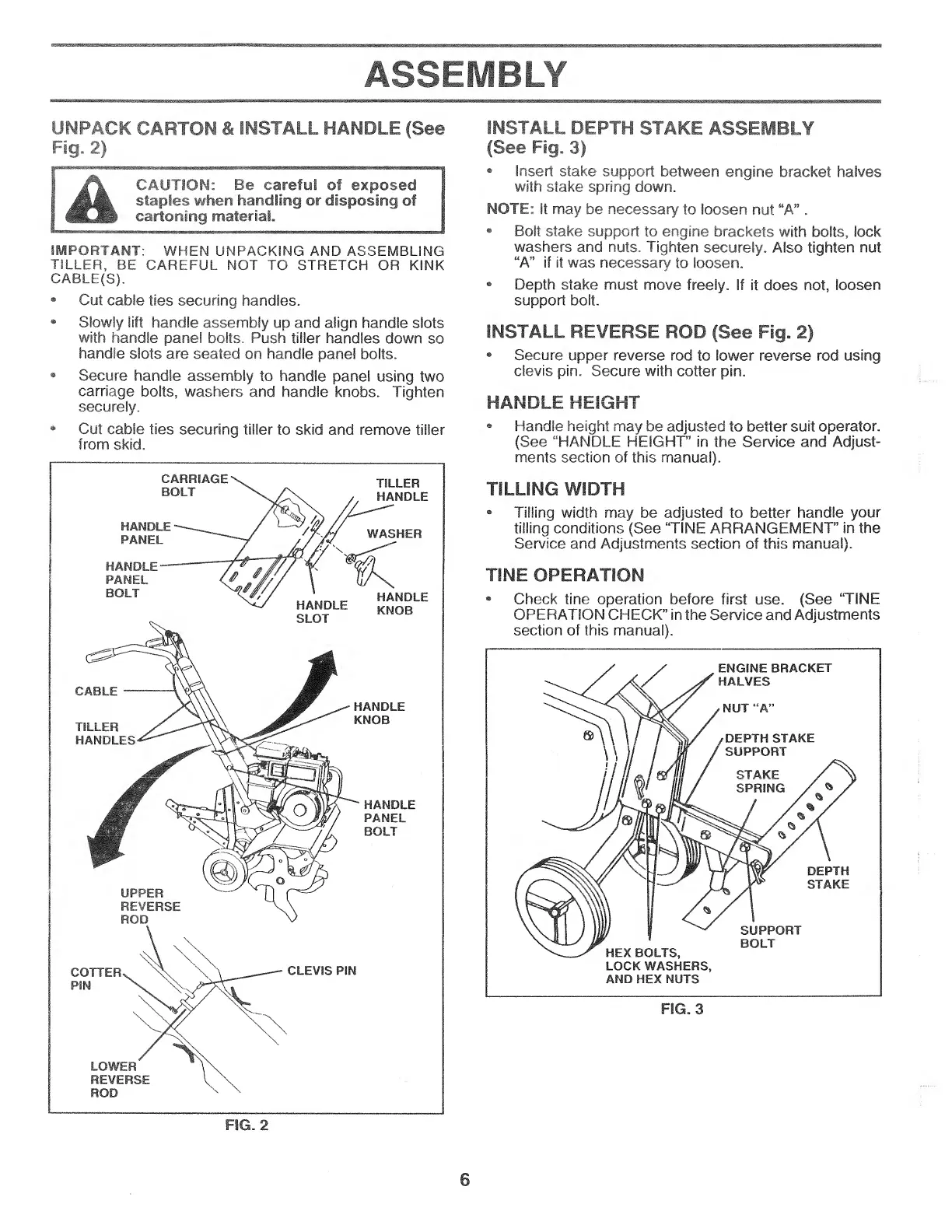

UNPACK CARTON & INSTALL HANDLE (See
Fig^ 2 )
I CAUTION: Be careful of exposed
I staples when hancifing or disposing of
j cartoning material.
iWPORTANT: WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE(S).
® Cut cable ties securing handles.
» Slowly lift handle assembly up and align handle slots
with handle panel bolts. Push tiller handles down so
handle slots are seated on handle panel bolts.
» Secure handle assembly to handle panel using two
carriage bolts, washers and handle knobs. Tighten
securely.
Cut cable ties securing tiller to skid and remove tiller
from skid.
CARRIAGE'
BOLT
HANDLE
PANEL
BOLT
TILLER
/X HANDLE
WASHER
HANDLE
HANDLE
TILLER
HANDLES
UPPER
REVERSE
ROD
o
HANDLE
KNOB
' HANDLE
PANEL
BOLT
COTTER
PIN
LOWER
REVERSE
ROD
CLEVIS PIN
FIG. 2
INSTALL DEPTH STAKE ASSEMBLY
(See Fig, 3)
® Insert stake support between engine bracket halves
with slake spring down.
MOTE: It may be necessary to loosen nut “A”
® Bolt stake support' to engine brackets with bolts, lock
washers and nuts. Tighten securely. Also tighten nut
“A” if it was necessary to loosen.
® Depth stake must move freely. If it does not, loosen
support, bolt.
INSTALL REVERSE ROD (See Fig, 2)
® Secure upper reverse rod to lower reverse rod using
clevis pin. Secure with cotter pin.
u ^ ik.nr\i r“ iL.jir*i
OiZi^Jiri I
® Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and AdjusE
ments section of this manual).
TILLING WIDTH
® Tilling width may be adjusted to better handle your
tilling conditions (See “TINE ARRANGEyENT” in the
Service and Adjustments section of this manual).
TINE OPERATION
® Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
FIG. 3
6
