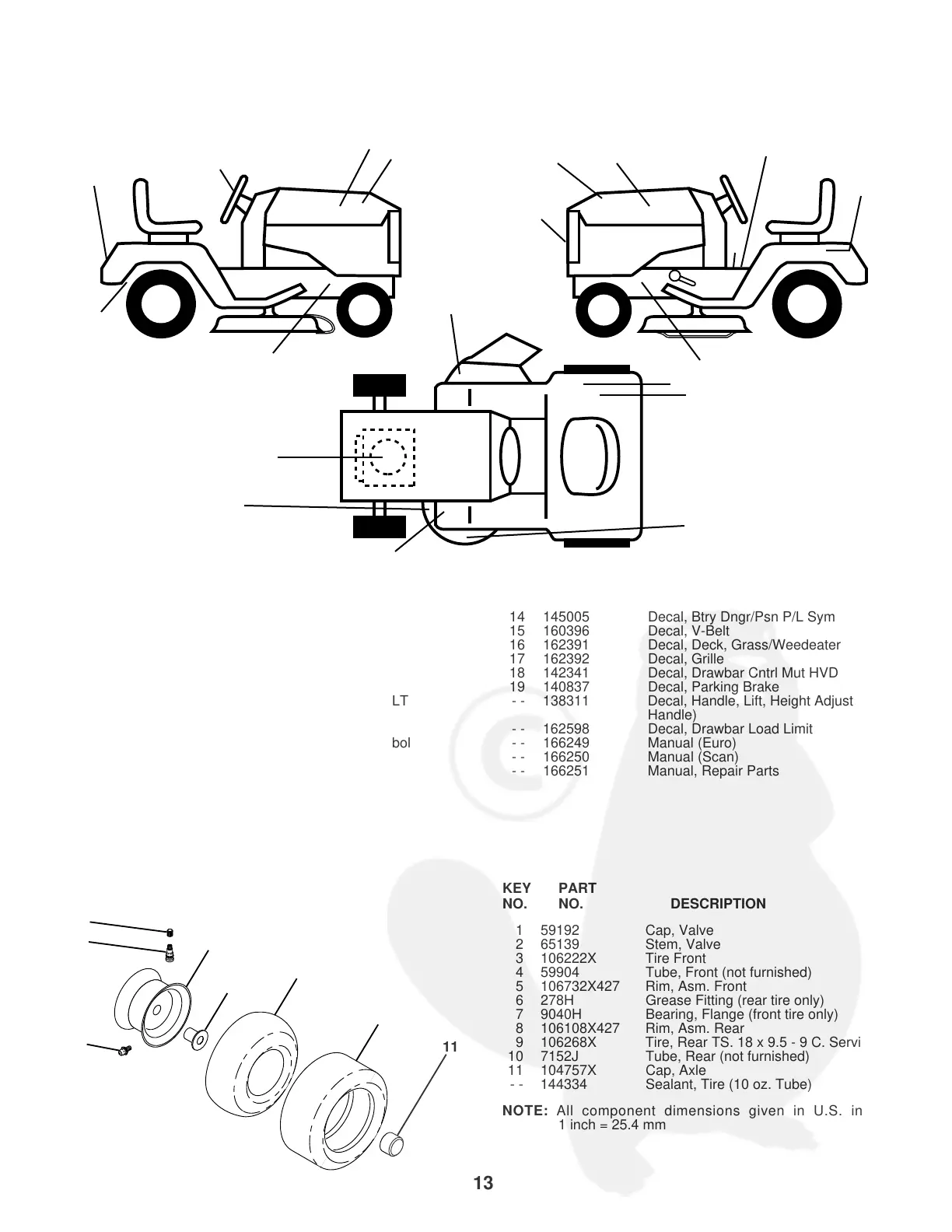

REPAIR PARTS
TRACTOR - - MODEL NUMBER WEX145H42B
DECALS
TIRES AND WHEELS
KEY PART
NO. NO. DESCRIPTION
3
2
5
4
14
19
11
KEY PART
NO. NO. DESCRIPTION
15
17
5
18
13
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap, Valve
2 65139 Stem, Valve
3 106222X Tire Front
4 59904 Tube, Front (not furnished)
5 106732X427 Rim, Asm. Front
6 278H Grease Fitting (rear tire only)
7 9040H Bearing, Flange (front tire only)
8 106108X427 Rim, Asm. Rear
9 106268X Tire, Rear TS. 18 x 9.5 - 9 C. Service
10 7152J Tube, Rear (not furnished)
11 104757X Cap, Axle
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
16
8
6
2
1
5,8
4,10
3,9
11
7
9
1
14 145005 Decal, Btry Dngr/Psn P/L Sym
15 160396 Decal, V-Belt
16 162391 Decal, Deck, Grass/Weedeater
17 162392 Decal, Grille
18 142341 Decal, Drawbar Cntrl Mut HVD
19 140837 Decal, Parking Brake
- - 138311 Decal, Handle, Lift, Height Adjust (Lift
Handle)
- - 162598 Decal, Drawbar Load Limit
- - 166249 Manual (Euro)
- - 166250 Manual (Scan)
- - 166251 Manual, Repair Parts
1 145498 Decal, Instruction, Operation
2 162395 Decal, Fender Logo
3 162389 Decal, Hood Rh
4 162390 Decal, Hood Lh
5 163441 Decal, Panl Sd
6 159736 Decal, Chassis Hot Muffler
7 159737 Decal, Brake/Clutch Symbol LT
8 145437 Decal, Europe Stand CE
9 165352 Decal, HP Engine
11 145494 Decal, Mower Cutfinger Symbol
12 126187X Decal 100 DBA
13 162398 Decal, Wheel Steering
