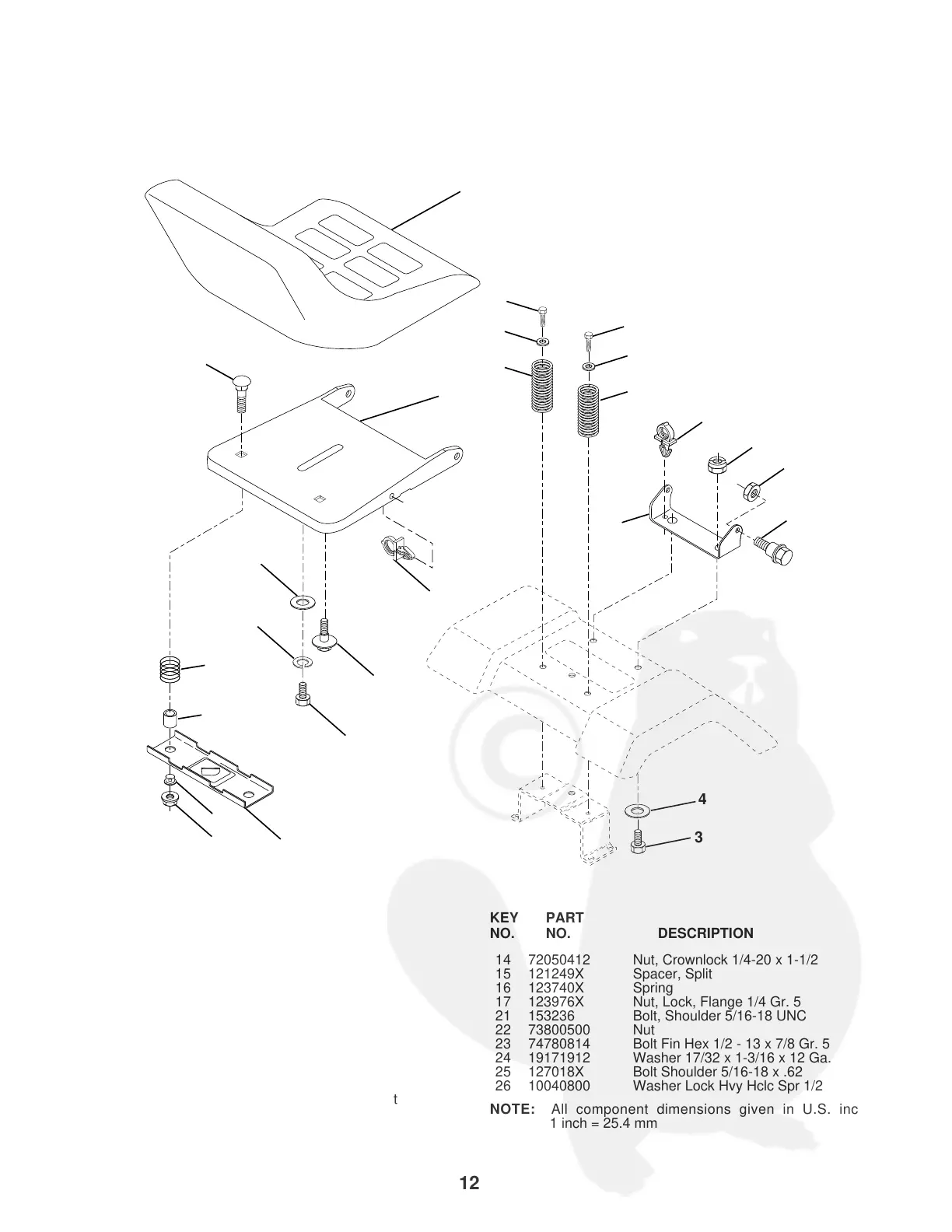

REPAIR PARTS
TRACTOR - - MODEL NUMBER WEX145H42B
SEAT
1 127429 Seat
2 140551 Bracket, Pivot, Seat
3 74760616 Bolt
4 19131610 Washer 13/32 x 1 x 10 Ga.
5 145006 Clip, Push-in
6 73800600 Nut
7 124181X Spring, Seat
8 17490616 Screw, Thdrol 3/8-16 x 1
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 155925 Pan, Seat
12 121246X Bracket, Mounting, Switch, Seat
13 121248X Bushing, Nylon
14 72050412 Nut, Crownlock 1/4-20 x 1-1/2
15 121249X Spacer, Split
16 123740X Spring
17 123976X Nut, Lock, Flange 1/4 Gr. 5
21 153236 Bolt, Shoulder 5/16-18 UNC
22 73800500 Nut
23 74780814 Bolt Fin Hex 1/2 - 13 x 7/8 Gr. 5
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x .62
26 10040800 Washer Lock Hvy Hclc Spr 1/2
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
6
22
21
5
10
5
14
