_ Wfag Nut
Shield
Gearbox
PIVOT

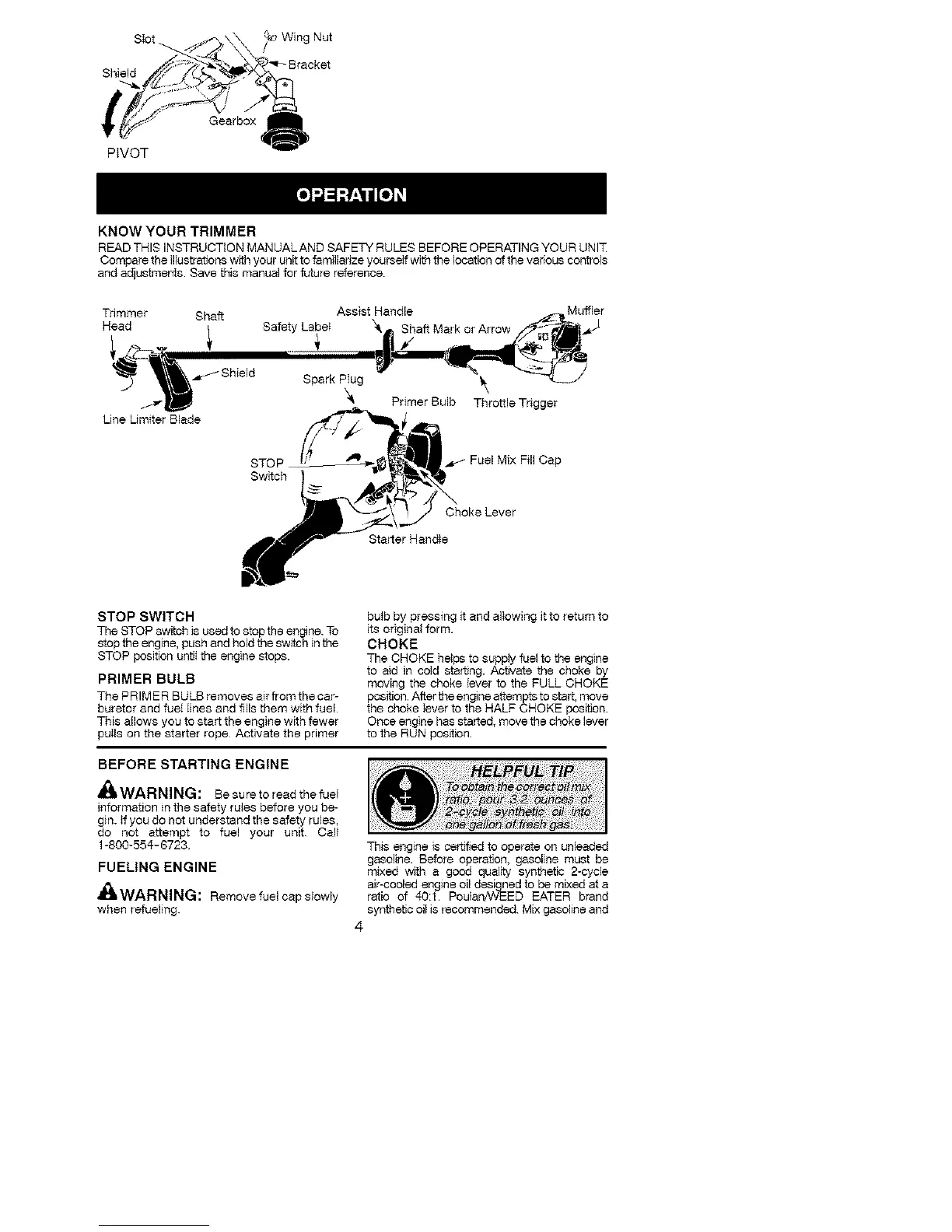

KNOW YOUR TRIMMER
READTHIS INSTRUCTION MANUALAND SAFETY RULES BEFORE OPERATINGYOUR UNIT
Compare the illustra_onswith your unitto familiarizeyourself withthe locationofthe various controls
and adjustments. Save this manual for future reference.
Trimmer Shaft Assist Handle Muffler
Headl _ 1 Safety_ ___j_r- j
A_J Shield Spark PIug
Primer Bulb Throttle Trigger
Line Umiter Blade
STOP _
Switch
Fuel Mix Fill Cap
Choke Lever
Starter Handte
STOP SWITCH
The STOP switch is used to stop the engine. To
stop the engine, push and hold the switch in the
STOP position untit the engine stops.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel Iines and fills them with fuel.
This aflows you to start the engine with fewer
pulis on the starter rope Activate the primer
butb by pressing it and alfawing it to return to
its original form
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Ac_vate the choke by
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke faver to the HALF CHOKE position.
Once engine has started, move the choke lever
to the RUN position
BEFORE STARTING ENGINE
,,_ WARNING: Be sure to read the fuel
information in the safety rules before you be-
gin. if you do not understand the safety rules,
do not attempt to fuel your unit Call
1-800-554-6723
FUELING ENGINE
_ik WARNING: Remove fuel cap sfawly
when refueling.
This engine is certified to operate on unleaded
gasefine. Before operefJon, gasoline must be
m_xed with a good quality synthetic 2-cycle
air-cooled engine oil designed to be mixed at a
ratio of 40:1. Poulan/WEED EATER brand
synthetic oil is recommended. Mix gasoline and
4
