WEG CFW100 - IOADR - Appendix A - Figures; Figure A1: Installation of Accessory

Appendix A - Anexo A
CFW100 | 29
APPENDIX A – FIGURES
ANEXO A – FIGURAS

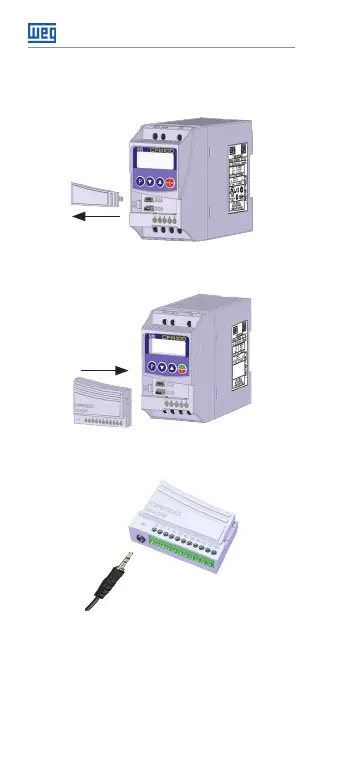

(a) Removal of front cover and accessory
(a) Remoción de la tapa frontal y del accesorio
(a) Remoção da tampa frontal e de acessório
(b) Accessory connection
(b) Conexión del accesorio
(b) Conexão de acessório
(c) IR receiver connection
(c) Conexión de receptor IR
(c) Conexão do receptor IR
Figure A1: (a) to (c) Installation of accessory
Figura A1: (a) a (c) Instalación del accesorio
Figura A1: (a) a (c) Instalação de acessório
