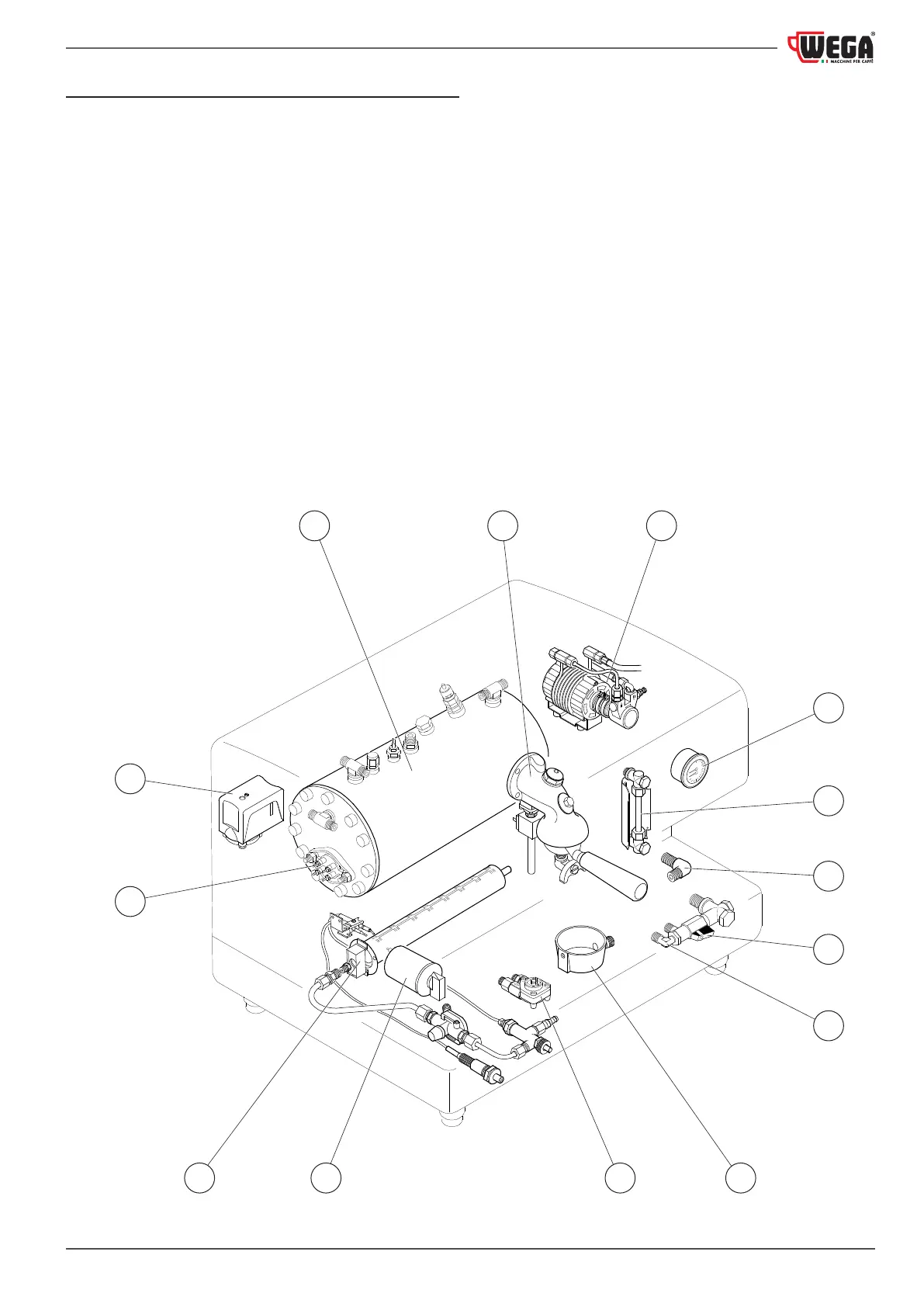

2.7 Internal components
1. Heating unit
2. Dispensing group
3. Internal motor pump (*)
4. Heating unit/motor pump pressure gauge
5. Heating unit level-check window
6. Internal pump water attachment connection (*)
7. Manual water pump
8. External pump water attachment connection
9. Drain tray
10. Volumetric dosing device (EVD)
11. Machine power switch
12. Gas system (*)
13. Electric heating element
14. Pressure switch
15. Transformer
16. Work surface LED light
1 2 3
4
5
6
7
8
9101112
13
14
17. Heating unit thermostat
18. Heating unit pressure switch
(*) Optional device
