WEICHAI R6160 Series User Manual

--
R660系列柴油机维修保养手册
Maintenace Manual For R660 Series Diesel Engine
4．飞轮螺栓
Flywheel bolts

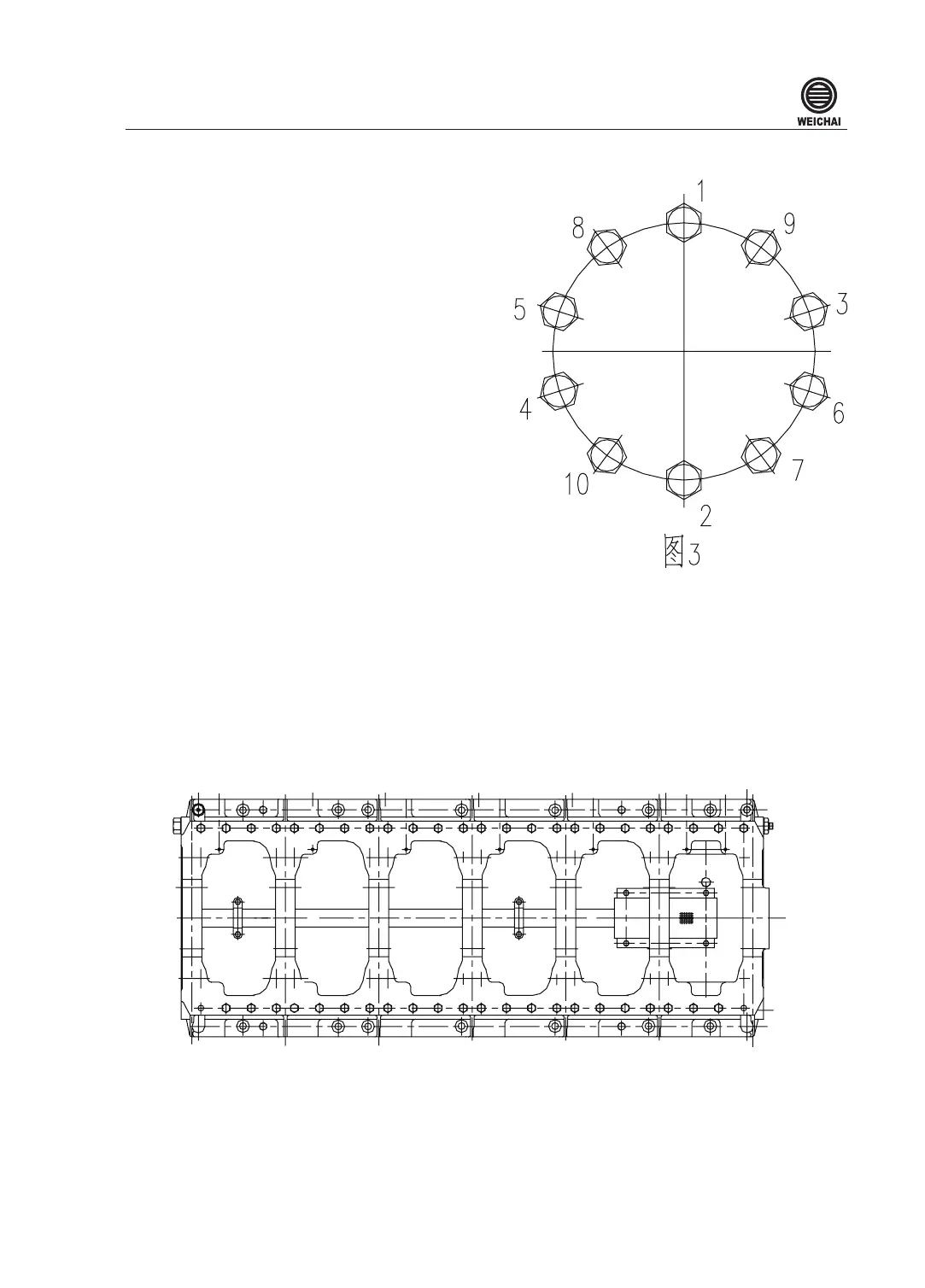

规格为 M24，共 8 个，拧紧次序按
右图所示
Size: M24, 8 used; and tightening order is
shown in the right Figure.
拧 紧 步骤 如下： 第一 次：30N.m；
第二次：430N.m ～ 470 N.m；
First time: 30N.m; second time: 430N.
m～470N.m.
拧入前螺纹表面涂乐泰 262 密封胶。
Before the bolts are screwed in, apply
LOCTITE 262 sealant on their thread.
5．机体与机座连接紧固螺栓
Connecting bolts between cylinder block and bed plate
规格为 M14，共 70 个，拧紧力矩为 90 N.m ～ 130N.m。分 2 次对称拧紧，步骤如下：
Size: M14, 70 in all, tightening torque: 90N.m～130N.m, tighten them symmetrically in 2 times:
第一次：用风动扳手拧紧 第二次：90 ～ 130N.m。
First time: tighten with pneumatic spanner; second time: 90～130N.m.
