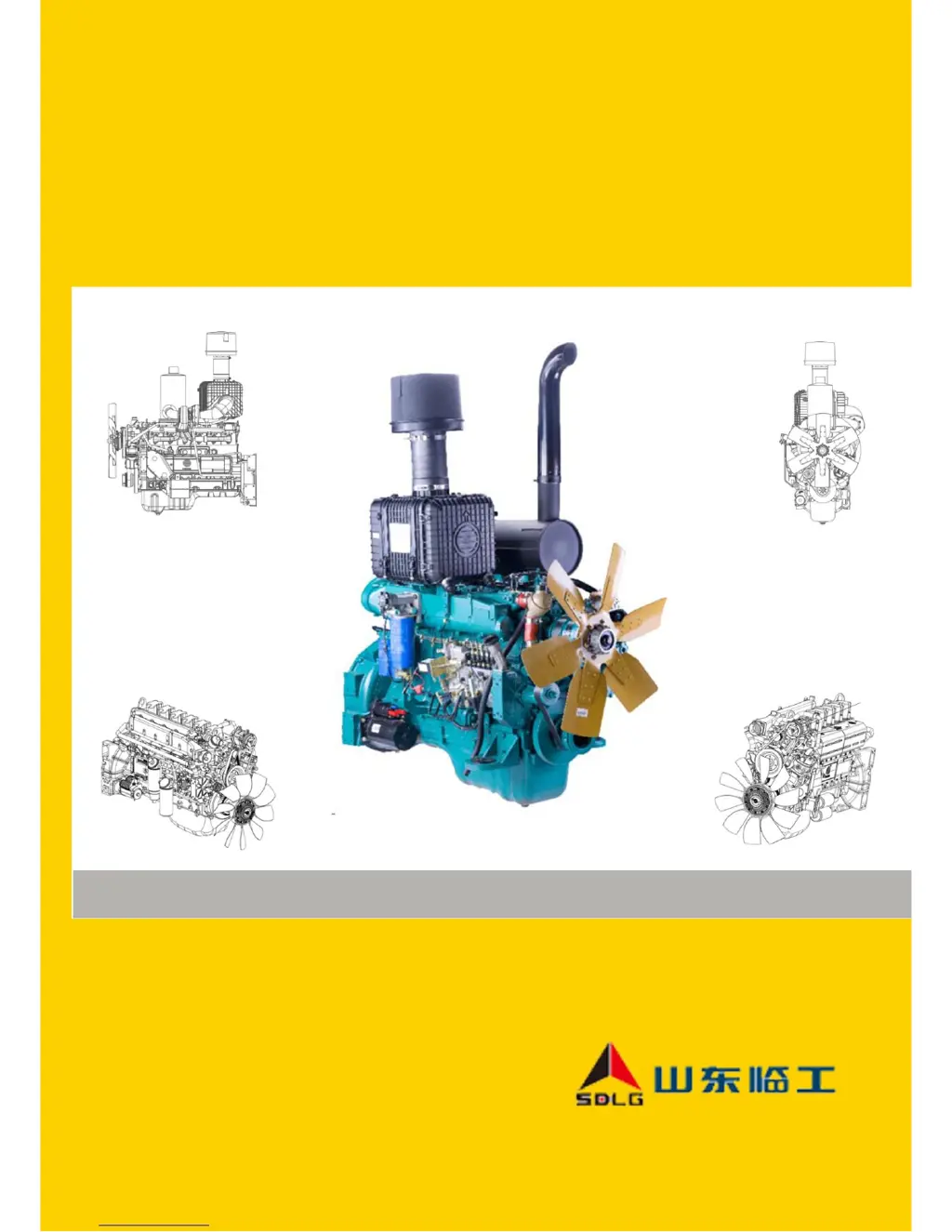

WEICHAI WD10 - Service Manual

Other manuals for WEICHAI WD10

Manual75 pages

Questions and Answers

S
Suzanne GarciaAug 23, 2025
Why WEICHAI WD10 has underpowered starter motor?
- J
  Jay TorresAug 23, 2025
  If the starter motor of WEICHAI Engine is underpowered, it could be due to an undercharged battery, so check, recharge, or replace the battery. Bearing sleeve wear can also reduce the motor's power, so replace the assembly. Bad contact of the electric brush can limit current flow, so clean the brush or replace it. A dirty or burnt commutator can also reduce performance, so wipe out oil dirt and polish it with abrasive paper or replace it. Loose weld of terminals can increase resistance, so re-weld. Bad contact of the switch can also limit power, so check the switch and replace it. Finally, a worn clutch slipping can reduce the effective power, so adjust the working torque of the clutch or replace it.
J
Jacob WilsonAug 27, 2025
What to do if WEICHAI WD10 stops soon after starting?
- T
  Timothy ThomasAug 27, 2025
  If your WEICHAI Engine stops soon after starting, it could be due to several reasons. A blocked fuel filter could be the cause, so disassemble the filter body to clear up any water and dirt, and replace the filter element if needed. Air in the fuel system can also cause this, so expel the air, check the airtightness of joints, and ensure the air bleed screw is tightened. Check the fuel delivery pump piston and valves, cleaning and repairing them if necessary, as the fuel delivery pump may not be working. The use of inferior fuel with high water content could be another reason, so clean the fuel filter and replace the fuel. Lastly, a low idling speed could be the issue, so readjust it.
B
Brandon AvilaSep 1, 2025
Why WEICHAI Engine's turbocharger intake port and intake pipe are accumulated with engine oil?
- J
  jperezSep 1, 2025
  If the WEICHAI Engine's turbocharger intake port and intake pipe are accumulated with engine oil, it could be due to a turbocharger sealing failure, requiring repair or replacement of the turbocharger. Another possible cause is oil-gas separator failure, which would necessitate replacement. Additionally, a high engine oil level in the oil sump can contribute to this issue, so check the oil dipstick and drain any redundant engine oil.
D
Daniel HahnSep 12, 2025
What to do if starter motor of WEICHAI Engine doesn’t work?
- D
  david78Sep 12, 2025
  If the starter motor of WEICHAI Engine doesn’t work, it could be due to an undercharged battery, so check, recharge, or replace the battery. Bad contact can also prevent the starter motor from working, so clear up the circuit and tighten all terminals. A blown fuse can interrupt the circuit, so replace the fuse. Bad contact of the electric brush can also be the cause, so clean the brush or replace it. Finally, a short circuit in the starter motor can prevent it from working, so overhaul the motor or replace it.
A
Amanda DanielsSep 12, 2025
Why WEICHAI WD10 Engine's generator generates nothing?
- P
  Patricia CollinsSep 12, 2025
  If the generator of WEICHAI Engine generates nothing, it could be due to an open circuit, short circuit, or loose terminals, so check the wiring of the generator and ampere meter, and repair. An open circuit, short circuit, or grounding of the rotor coil or stator coil can also prevent generation, so repair or replace the assembly. Damage to the rectifier tube can also cause this issue, so replace the assembly. Destruction of terminal paper insulation or a disconnected wire can interrupt the circuit, so repair. If the regulator adjusting voltage is too low, adjust it. Finally, burn out of the regulator contactor can prevent generation, so repair or replace the assembly.
E
Eric KhanSep 14, 2025
Why WEICHAI WD10 Engine's generator is undercharging?
- L
  leahfletcherSep 14, 2025
  If the generator of WEICHAI Engine is undercharging, it could be due to an open circuit, short circuit, or loose terminals, so repair. An open circuit, short circuit, or grounding of the rotor coil or stator coil can also cause undercharging, so repair or replace the assembly. A loose generator belt can reduce output, so check and tighten the belt. Damage to the rectifier tube or bad contact of the battery can also cause this issue, so repair. If the regulator adjusting voltage is too low, adjust it. A disconnected regulator field coil or resistance wiring can also lead to undercharging, so repair or replace. Finally, a low battery acid level or aged battery can affect charging, so add acid or replace the battery.
B
Brandon TaylorSep 15, 2025
Why WEICHAI WD10 Engine has unstable charging voltage?
- B
  Billy OwensSep 16, 2025
  If the charging voltage of WEICHAI Engine is unstable, it could be because the rotor coil or stator coil is about to be in an open circuit or short circuit, so repair or replace. Bad contact of the electric brush can also cause this issue, so repair. Loose terminals or bad contact can also lead to unstable voltage, so repair. A damaged voltage regulator can cause fluctuations, so repair. Finally, if the voltage is improperly adjusted, check and adjust it.
C
codyrasmussenSep 17, 2025
Why WEICHAI WD10 Engine's generator is overcharging?
- E
  elizabeth61Sep 18, 2025
  If the generator of WEICHAI Engine is overcharging, it could be due to a short circuit in the battery, so repair or replace. If the regulator adjusting voltage is too high, repair and adjust it. Bad grounding of the regulator can also cause overcharging, so repair. Finally, regulator contactor failure or contamination, or a disconnected voltage coil or resistance wiring can lead to this issue, so repair or replace.
B
Brenda NelsonSep 18, 2025
Why WEICHAI WD10 Engine's generator produces abnormal sound?
- M
  Michael OlsenSep 19, 2025
  If the generator of WEICHAI Engine produces abnormal sound, it could be due to an improperly installed generator, so repair. Bearing damage can also cause noise, so replace the bearing. If a rotating part is interfered with a fixed part, repair or replace it. A short circuit of the rectifier can also generate abnormal sound, so replace. Finally, a short circuit of the stator coil can cause this issue, so repair or replace.
A
Alexander JamesNov 20, 2025
Why WEICHAI WD10 is underpowered?
- J
  Jason BakerNov 20, 2025
  If the WEICHAI Engine is underpowered, several factors could be responsible. Start by checking the air filter and intake pipe for blockage, repairing or replacing the filter element if necessary. A high exhaust back pressure could be the reason, so check the valve timing and exhaust pipe for blockages, adjusting and repairing as needed. Underpressure of the supercharging system can also cause this issue, so check for and eliminate any leakage in pipes and joints. Other potential causes include a malfunctioning turbocharger (replace the assembly), blockage of the air compressor and turbine passageway (clean or replace), float bearing failure (replace), too much carbon deposit in the turbine and air compressor back gap (clean), or a damaged or leaking intercooler (replace or repair). Additio...

Summary

Usage Instructions for Diesel Engine

Diesel Engine Main Technical Parameters

Lists key technical specifications like displacement, compression ratio, and ignition order.

Preparation before Starting Engine

Steps to check coolant, fuel, oil levels, and system connections before startup.

Maintenance Guidelines for Diesel Engine

Daily Maintenance

Routine checks and inspections to be performed daily for engine health.

Periodic Maintenance

Scheduled maintenance tasks to be performed at regular intervals.

Diagnosis and Troubleshooting of Diesel Engine Common Faults

Fault Causes and Elimination Methods

Lists common engine problems with their potential causes and solutions.

Disassembly & Assembly of Diesel Engine

Safety Signs

Explains various safety signs and their meanings for user protection.

Explode View of the Whole Engine

Illustrated diagram showing all major components of the engine.

Cylinder Cover Assembly

Detailed steps for the disassembly and assembly of the cylinder cover.

WEICHAI WD10 Specifications

General

Cylinder Count	6
Displacement	9.726 L
Fuel System	Common Rail
Cooling System	Water-cooled
Aspiration	Turbocharged
Engine Model	WD10
Engine Type	Diesel
Bore x Stroke	126 x 130 mm
