Service Manual for WD10 Diesel Engine
100
(4) Remove generator, generator support, crankshaft pulley and damper.
(5) Remove thermostat, refer to disassembly of thermostat for details.
(6) Remove air compressor and hydraulic pump.
(7) Remove pipe joints of water pump and take down the pump, refer to disassembly of water
pump for details.
4813 Steps to Assemble Cooling System
Assembling steps are contrary to disassembling ones.
482 Disassembly, Inspection, Maintenance and Assembly of Fan

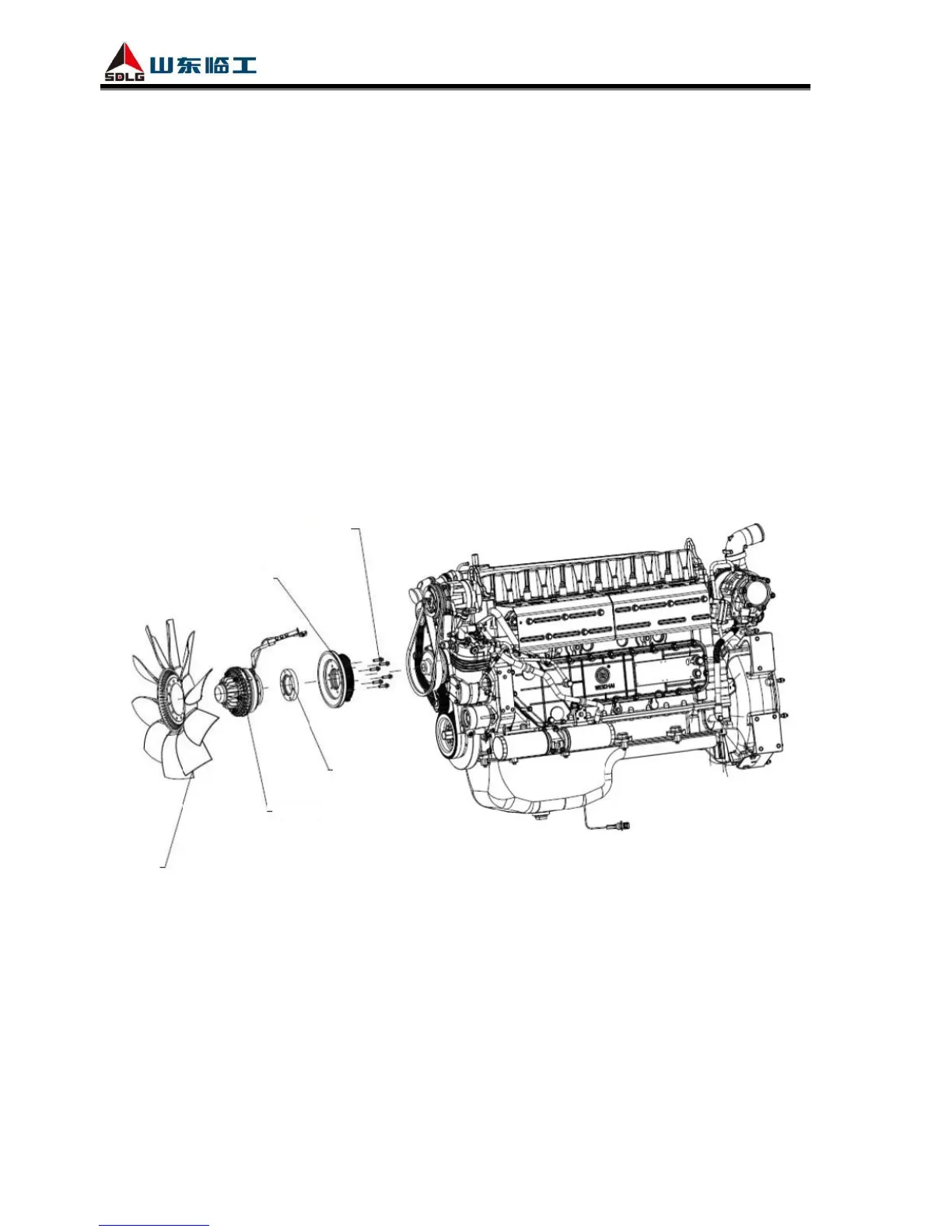

4821 Exploded View of Fan
Fig. 4-62 Exploded view of fan
4822 Steps to Disassemble Fan
As shown in Fig. 4-62:
(1) Remove the nuts that connecting fan and clutch, take down the fan.
(2) Remove fan clutch.
(3) Remove fan connecting plate.
(4) Take down the pulley.
