Fig. 4-26
Key point 2:
Assembling:
Apply sealant on fitting surfaces of flywheel housing and engine block, pay attention not to crash
flywheel housing during lifting.
4354 Steps to Assemble Flywheel Housing
Assembling steps are contrary to disassembling ones.
436 Disassembly, Inspection, Maintenance and Assembly of Oil Sump
4361 Exploded View of Oil Sump
Oil sump
Magnetic screw plug assembly
Seal ring
Oil sump support
block
Flat washer
Seal gasket
Hexagon flange
toothed bolt

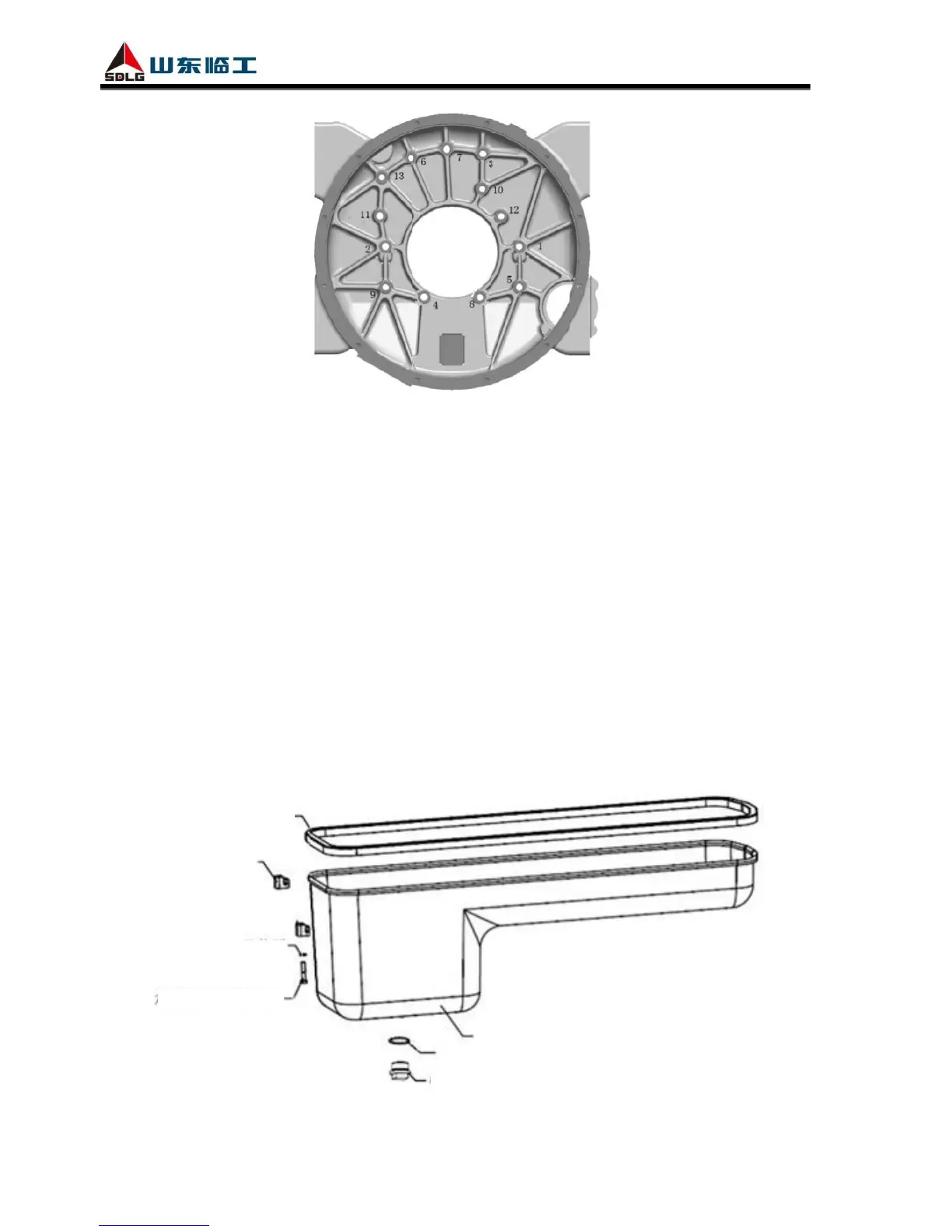

Fig. 4-27 Exploded view of oil sump
