Service Manual for WD10 Diesel Engine
61
4362 Steps to Disassemble Oil Sump
(1) Turn over the engine to keep oil sump upward (key point 1);
(2) Remove oil sump fastening bolts (key point 2);
(3) Remove oil sump support blocks;
(4) Take down oil sump and the seal ring;
(5) Remove the compound gasket and magnetic screw plug assembly.
4363 Inspection and Maintenance of Oil Sump
Key point 1:
Disassembling:
Before the disassembling, all engine oil should be drained out. Put an engine oil container under
drain screw plug of oil sump, screw off the plug with a plug wrench to drain oil out.
Key point 2:
Assembling:

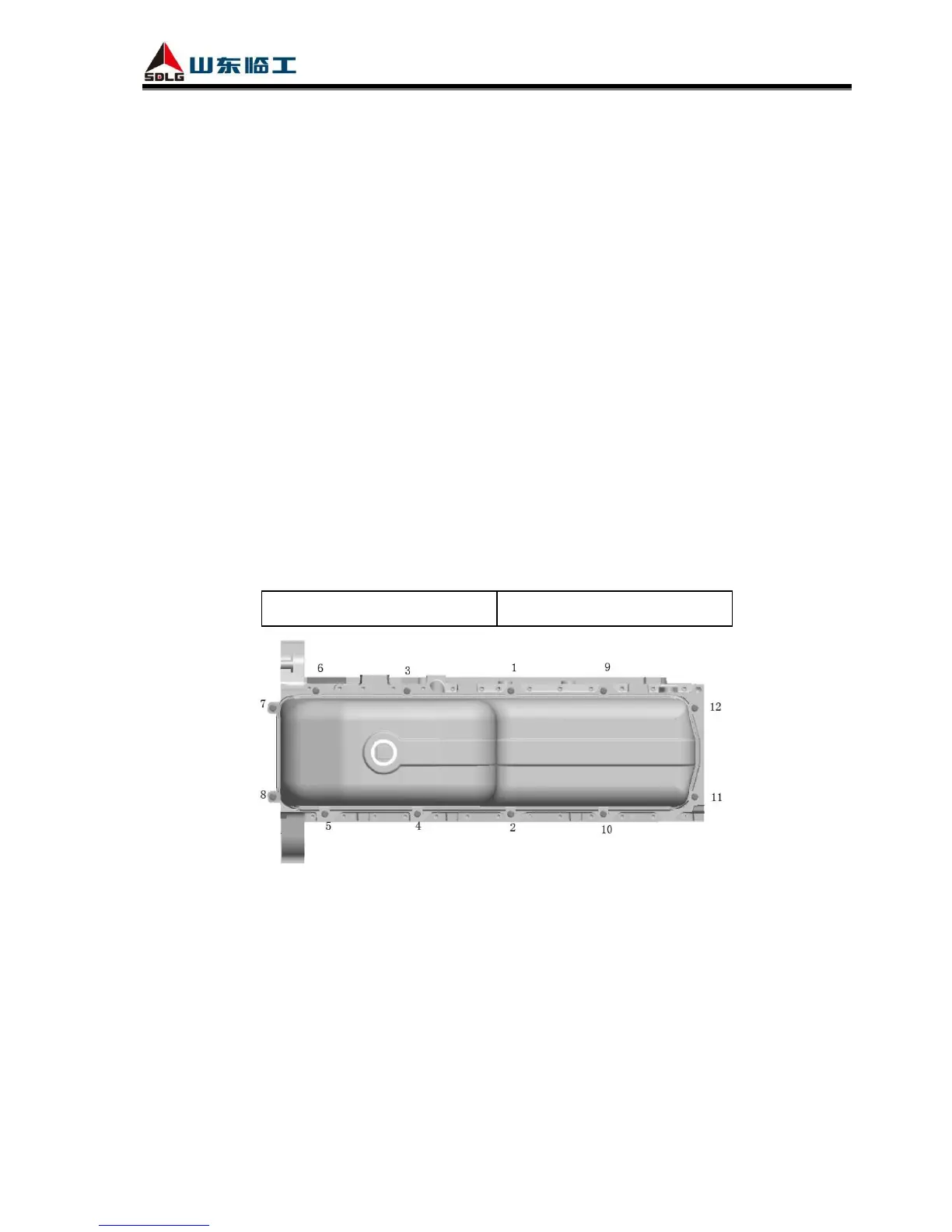

Tighten oil sump fastening bolts according to the order illustrated in the chart below.
Tightening torque
22~29Nm
Fig. 4-28
4364 Steps to Assemble Oil Sump
Assembling steps are contrary to disassembling ones.
