Weider 8507 - Pulley Station Attachments; Lat Bar to Low Pulley Connection

18

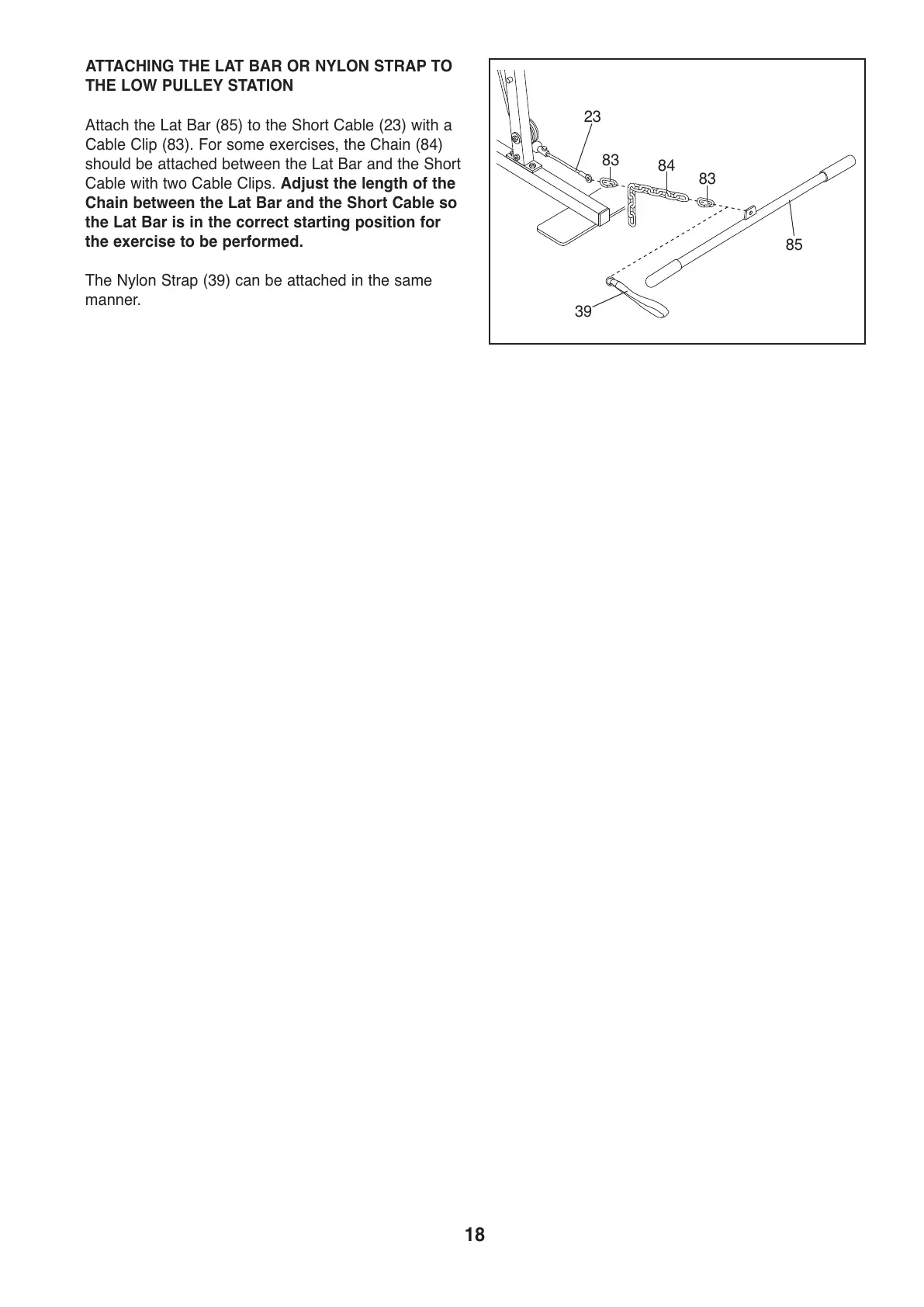

ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION
Attach the Lat Bar (85) to the Short Cable (23) with a
Cable Clip (83). For some exercises, the Chain (84)
s
hould be attached between the Lat Bar and the Short
Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the Short Cable so
the Lat Bar is in the correct starting position for
the exercise to be performed.
The Nylon Strap (39) can be attached in the same
manner.
39
85
23
83
84
83
