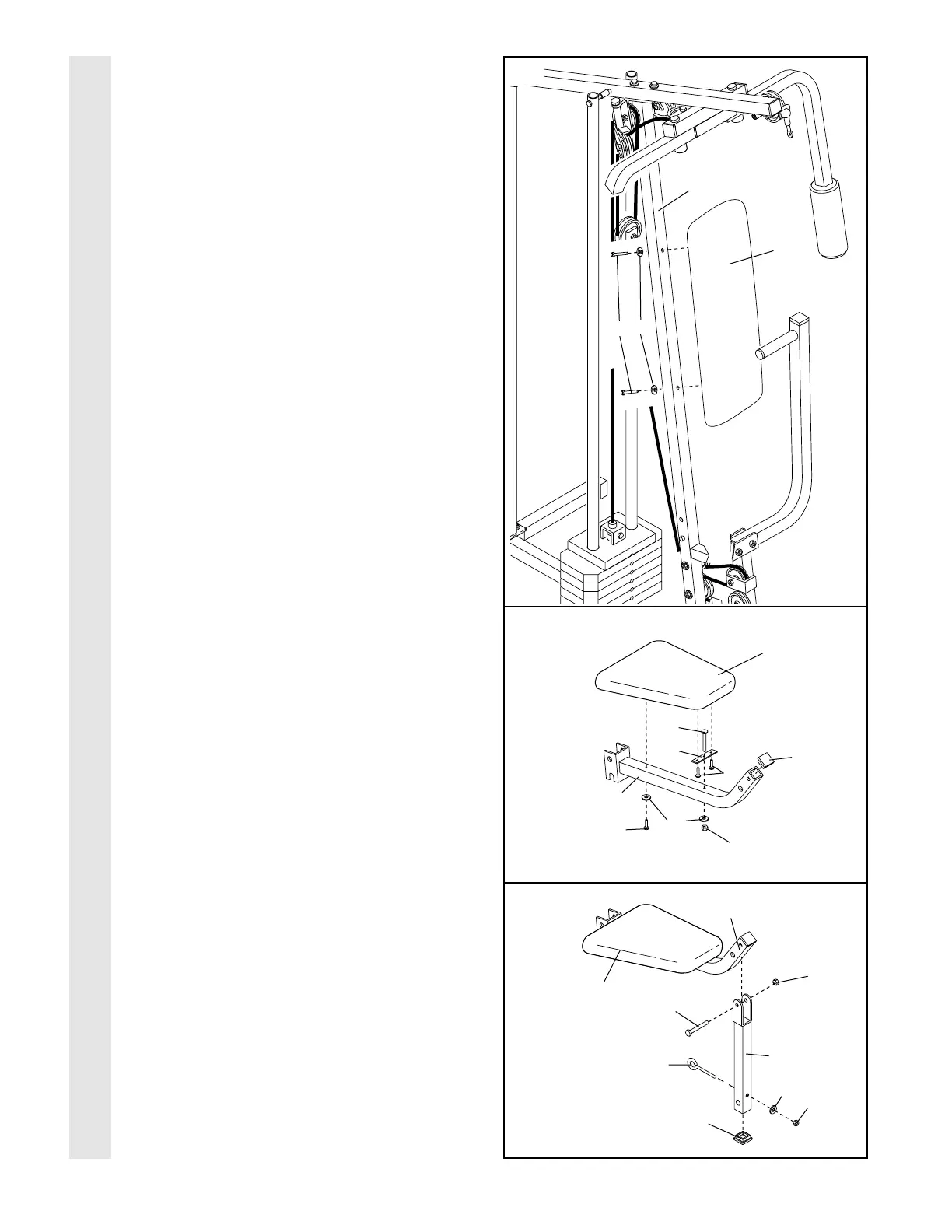

25. Attach the Backrest (41) to the Front Upright
(42) with two M6 x 65mm Screws (43) and
two 1/4” Flat Washers (10).
26. Press a 1 1/2” Square Inner Cap (32) into the
Seat Frame (36).
Insert the M6 x 50mm Carriage Bolt (38) into
the center hole in the Seat Plate (37). Attach
the Seat Plate to the Seat (13) with two M6 x
16mm Screws (18).
Insert the M6 x 50mm Carriage Bolt (38) into
the indicated hole in the Seat Frame (36).
Tighten an M6 Nylon Locknut (2) with a 1/4”
Flat Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Seat Frame (36) with a 1/4” Flat Washer (10)
and the M6 x 50mm Screw (24).
27. Press a 1 1/2” Square Inner Cap (32) into the
Leg Lever (29).
Lubricate the M8 x 57mm Bolt (33). Attach the
Leg Lever (29) to the Seat Frame (36) with
the M8 x 57mm Bolt and an M8 Nylon
Locknut (3). Do not overtighten the Nylon
Locknut. The Leg Lever must be able to
pivot freely.
Insert the M8 x 50mm Eyebolt (35) into the
Leg Lever (29) from the direction shown.
Tighten an M8 Nylon Locknut (3) with a 5/16”
Flat Washer (8) onto the Eyebolt.
25
26
27
SEAT ASSEMBLY
41
42
10
2
24
36
36
3
Lubricate–33
29
8
3
32
35
2
13
38
37
32
18
10
43
To Next Page
