Weider 8515 - Page 13

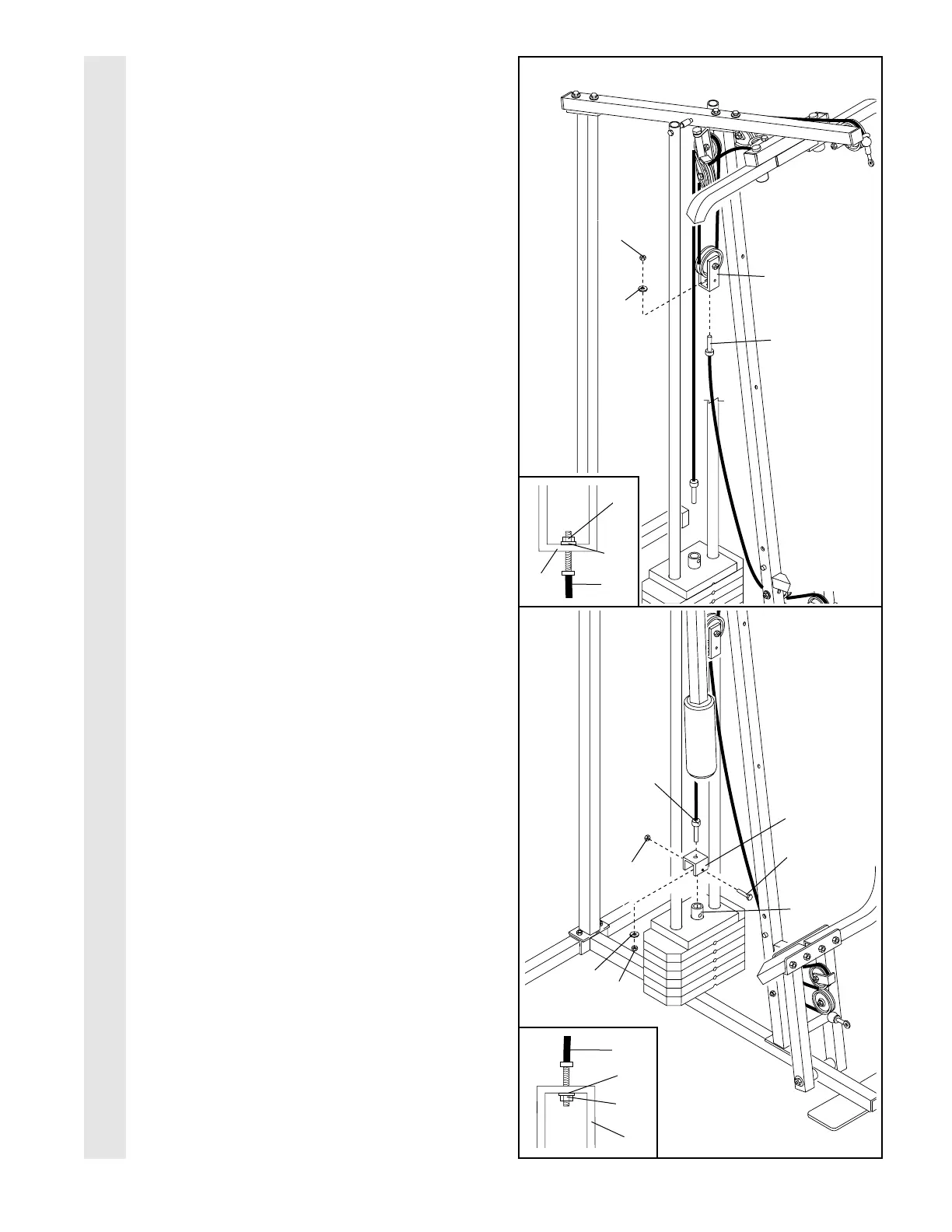

23. Attach the end of the Short Cable (58) to the
Long “U”-Bracket (57) with an M8 Nylon Lock-
nut (3) and a 5/16” Flat Washer (8). Do not
completely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable so only a couple of threads are
showing above the nut, as shown in the
inset drawing.
24. Attach the Long Cable (23) to the Small “U”-
Bracket (67) with an M8 Nylon Locknut (3)
and a 5/16” Flat Washer (8). Do not com-
pletely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable only a couple of turns, as shown in
the inset drawing.
Attach the Small “U”-Bracket (67) to the
Weight Tube (63) with the M8 x 45mm Bolt
(72) and an M8 Nylon Locknut (3).
23
24
CABLE ASSEMBLY
57
3
8
58
63
72
67
3
8
3
23
13
23
67
3
8
58
57
3
8
