9

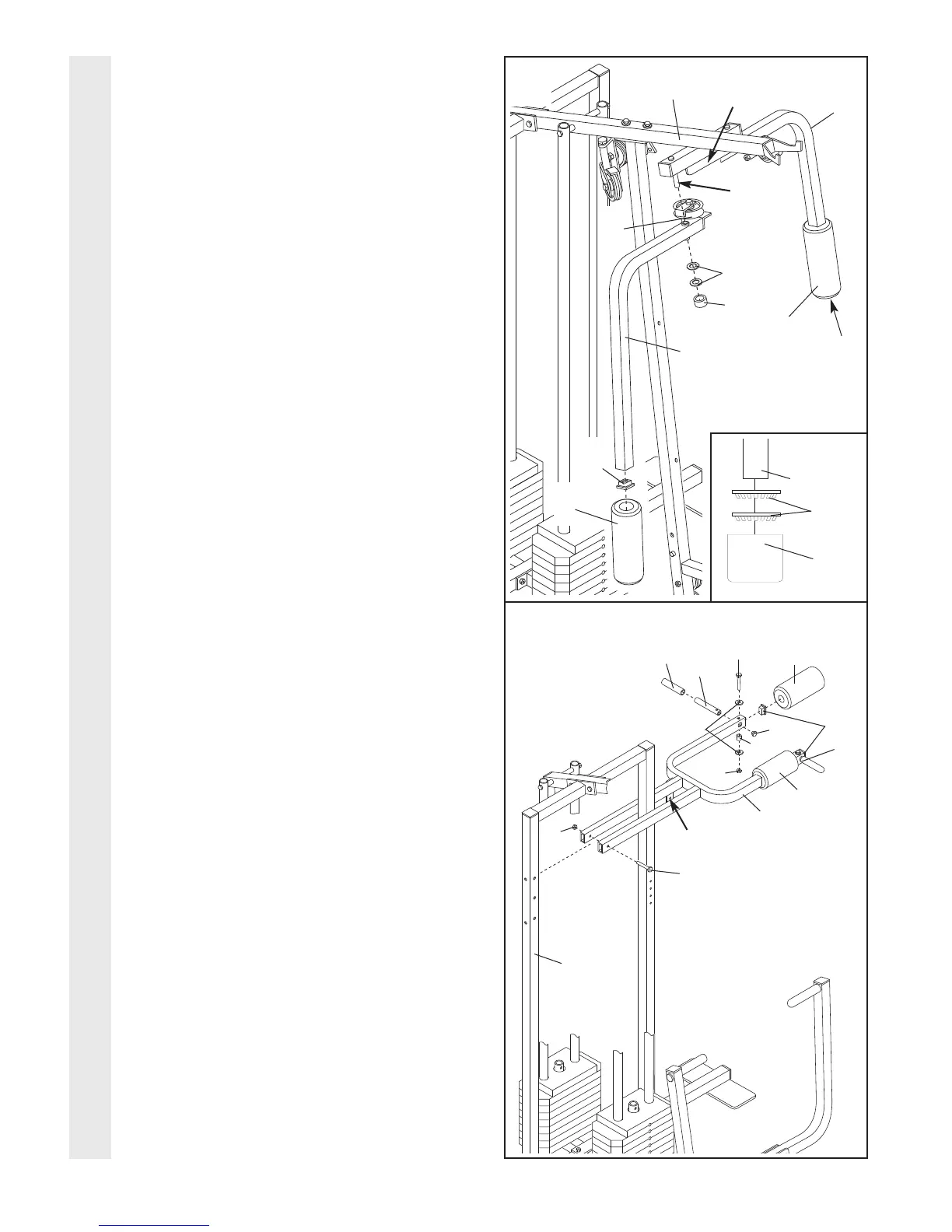

11. Lubricate both axles on the Top Frame (55).
Slide the Right
Arm (48) onto the right axle.
Be careful not to confuse the Right Arm
with the Left
Arm (47); note the position of
the “V” Pulley (50) to identify the Right
Arm. Be sure that the upper end of the
Right Arm is behind the indicated bracket
on the Top Frame (55).
Tap two 1” Retainers (69) and a 1” Round
Cover Cap (70) onto the axle.
Be sure that
the teeth on the Retainers bend toward the
Round Cover Cap, as shown in the inset
drawing.
Attach the Left Arm (47) in the same manner.
Press 1 3/4” Inner Caps (44) into the lower
ends of the Left and Right Arms (47, 48). Wet
the lower end of each Arm with soapy water.
Slide a 10” Pad (45) onto the lower end of
each Arm.
12. Press two 1” x 2” Inner Caps (87) into the
indicated end of the Squat Arm (84).
Attach the Squat Arm (84) to the VKR Upright
(74) with a 3/8” x 5 1/2” Bolt (93) and a 3/8”
Nylon Locknut (21).
Be sure that the indicat-
ed bracket is pointing down as shown.
Wet the ends of the Squat Arm (84) with
soapy water. Slide the two Squat Arm Pads
(85) onto the Squat Arm.
Attach a Handle (82) to one side of the Squat
Arm (84) with a 5/16” x 2 1/2” Bolt (22), two
5/16” Flat Washers (8), a 1/2” x 17/32” Spacer
(91), and a 5/16” Nylon Locknut (3).
Wet the Handle (82) with soapy water. Slide a
5” Plastic Grip (83) onto the Handle. Press a
1” Round Inner Cap (49) into the other end of
the Handle.
Assemble another Handle (82) to the other
side of the Squat
Arm (84) in the same man
-
ner
.
11
12
ARM ASSEMBLY
87
83
82
82
22
85
85
8
49
91
Bracket
84
93
21
3
74
69
70
Axle—
Lubricate
55
50
45
45
69
70
55—Axle
48
47
44
44
Bracket
