Weider 8530 - SEAT ASSEMBLY

14

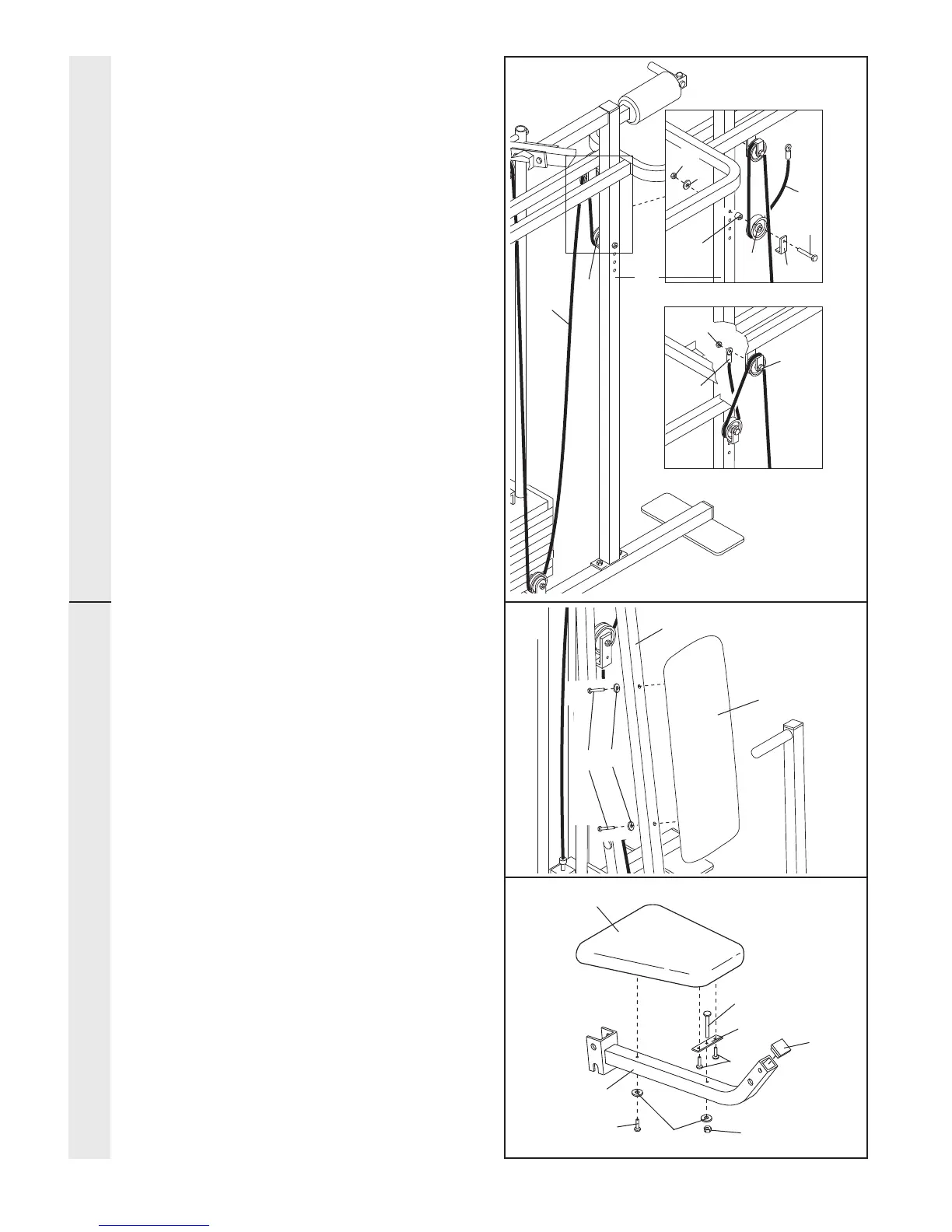

25. See inset drawing A. Note: The inset draw-
ing shows the view from the other side of
the Squat
Arm Upright (56). W
rap the Long
Cable (72) around a “V”-Pulley (50). Attach
the “V”-Pulley and a Long Cable
Trap (31) to
the top hole in the Squat Arm Upright with the
3/8” x 5” Bolt (67), the 5/8” x 3/8” Spacer (76),
a 3/8” Flat Washer (9), and a 3/8” Nylon
Locknut (21).
Position the Long Cable Trap
(31) as shown.
See inset drawing B. Note: The inset draw-
ing shows the view from the other side of
the Squat Arm Upright (56).
Slide the end of
the Long Cable (72) onto the end of the 3/8” x
2 1/4” Bolt (94). Thread another 3/8” Jam Nut
(92) onto the Bolt. Do not tighten the sec-
ond Jam Nut. There must be room
between the two Jam Nuts for the end of
the Cable to pivot.
26. Attach the Backrest (41) to the Front Upright
(42) with two 1/4” x 2 1/2” Screws (43) and
two 1/4” Flat Washers (10).
27. Press a 1 1/2” Inner Cap (32) into the Seat
Frame (36).
Insert a 1/4” x 2” Carriage Bolt (38) through
the center hole in the Seat Plate (37). Attach
the Seat Plate to the Seat (13) with two 1/4” x
3/4” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) through
the indicated hole in the Seat Frame (36).
Tighten a 1/4” Nylon Locknut (2) with a 1/4”
Flat Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Seat Frame (36) with a 1/4” Flat W
asher (10)
and a 1/4” x 2” Machine Screw (81).
27
25
26
CABLE ASSEMBLYSEAT ASSEMBLY
67
31
50
50
A
B
76
9
72
92
94
42
41
43
10
13
38
37
32
18
36
2
10
81
72
72
Insets show view
from other side
56
21
