13

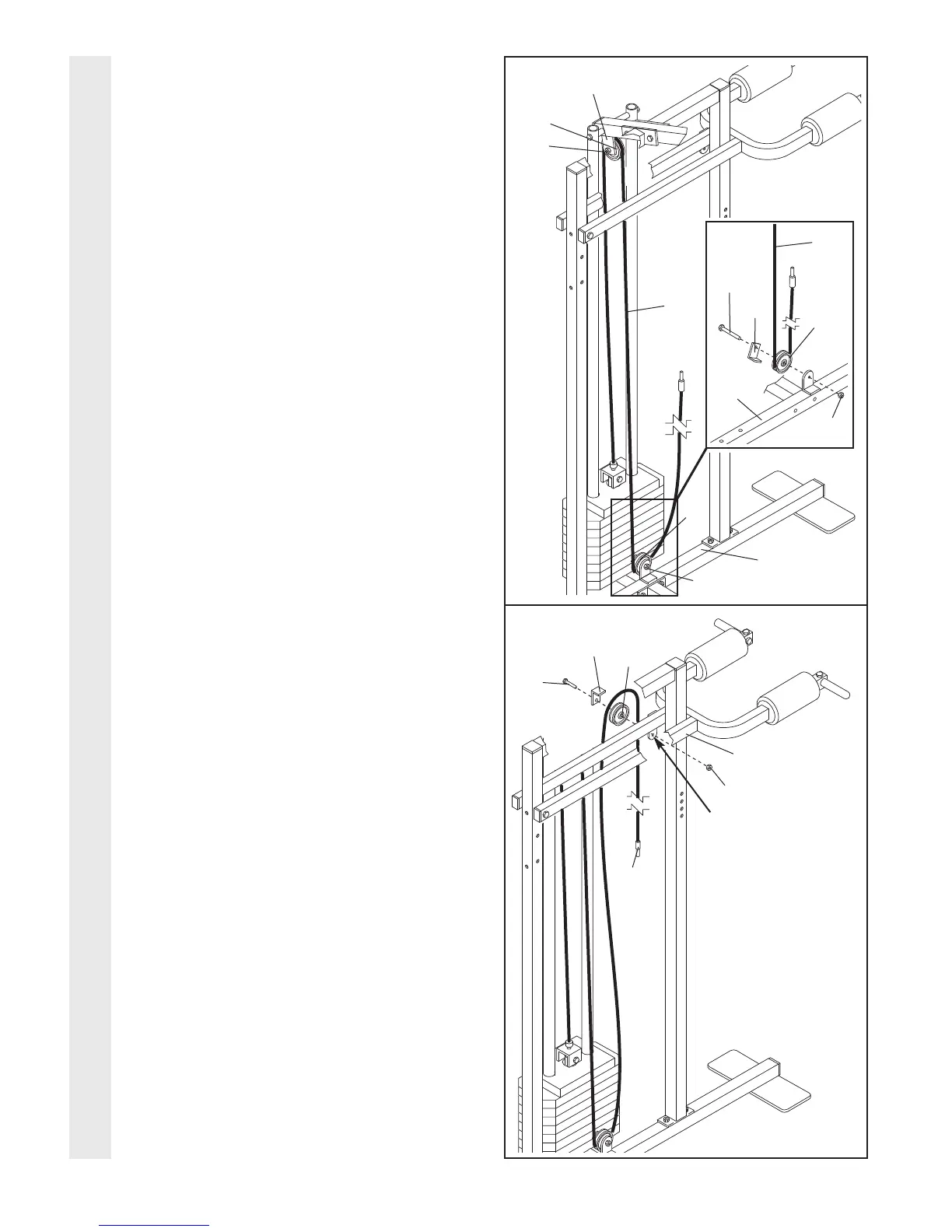

23. Route the Long Cable (72) around the 3 1/2”
Pulley (15) on the Top Frame (55). Tighten
the 3/8” Nylon Locknut (21) and the 3/8” x 2”
Bolt (not shown).
See inset drawing. Wrap the Long Cable (72)
around a 3 1/2” Pulley (15). Attach the Pulley
and a Cable Trap (66) to the bracket on the
Stabilizer (5) with a 3/8” x 2” Bolt (12) and a
3/8” Nylon Locknut (21).
Be sure that the
Cable Trap is turned to hold the Cable in
place.
24. Wrap the Long Cable (72) around a 3 1/2”
Pulley (15). Attach the Pulley and a Cable
Trap (66) to the Squat Arm (84) with the 3/8”
x 2 1/4” Bolt (94) and a 3/8” Jam Nut (92).
Be
sure that the 3/8” Jam Nut is on the side
shown and that the Cable Trap is posi-
tioned to hold the Cable in place.
23
24
CABLE ASSEMBLY
55
15
5
72
21
21
15
Bracket
84
66
92
94
72
15
72
15
21
5
66
12
