21. Attach the Medium Cable (58) to a Small “U”-
Bracket (71) with a 1/4” Nylon Locknut (2)
and a 1/4” Flat W
asher (10). Do not tighten
the 1/4” Nylon Locknut. It should be
threaded onto the Cable only a couple of
turns.
Attach the Small “U”-Bracket (71) to the indi-
cated Weight Tube (63) with a 5/16” x 1 3/4”
Bolt (24) and a 5/16” Nylon Locknut (3).
22.
Locate the Long Cable (72). Attach the Long
Cable to the other Small “U”-Bracket (71) with
a 1/4” Nylon Locknut (2) and a 1/4” Flat
Washer (10). Do not tighten the 1/4” Nylon
Locknut. It should be threaded onto the
Cable only a couple of turns.
Attach the Small “U”-Bracket (71) to the indi-
cated Weight Tube (63) with a 5/16” x 1 3/4”
Bolt (24) and a 5/16” Nylon Locknut (3).

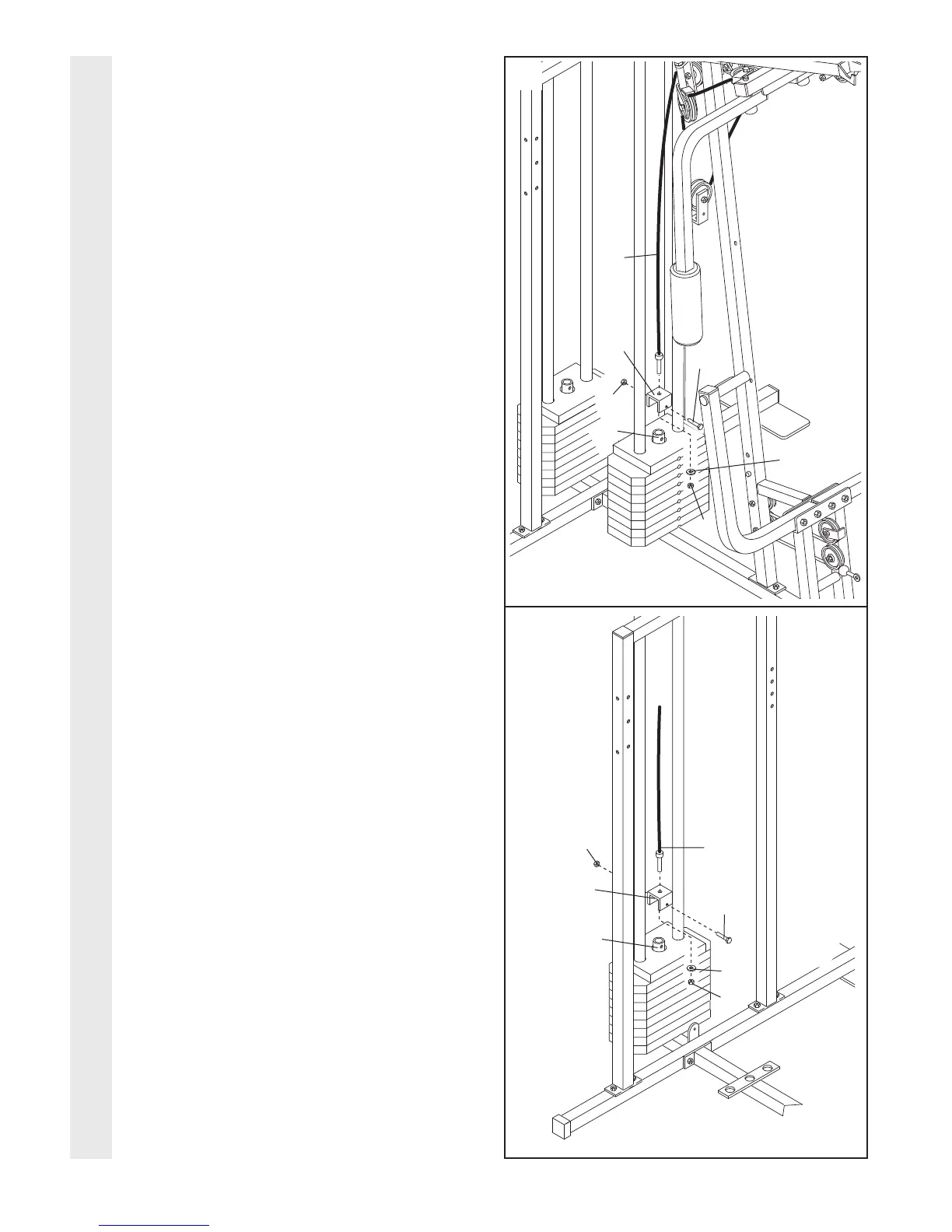

CABLE ASSEMBLY
72
71
24
63
10
2
3
63
71
24
10
2
58
22
21
3
