Weider 9250 - Page 10

10
13. Press two 38mm Square Inner Caps (32) into the
ends of the Leg Lever (29).
Lubricate an M10 x 60mm Bolt (7). Attach the Leg
Lever (29) to the Seat Frame (36) with the Bolt
and an M10 Nylon Locknut (21). Do not over-
tighten the Nylon Locknut; the Leg Lever
must be able to pivot easily.
14. Press a 50mm Square Inner Cap (44) into the
end of the Left Butterfly Arm (47). Press a Sleeve
(105) into the round tube on the Left Butterfly
Arm.
Wet the lower end of the Left Butterfly Arm (47)
with soapy water. Slide a Large Foam Pad (45)
onto the Left Butterfly Arm.
Repeat this step with the Right Butterfly Arm
(not shown).
13
14
32
32
29
36
21
7
Lubricate
47
105
45
44

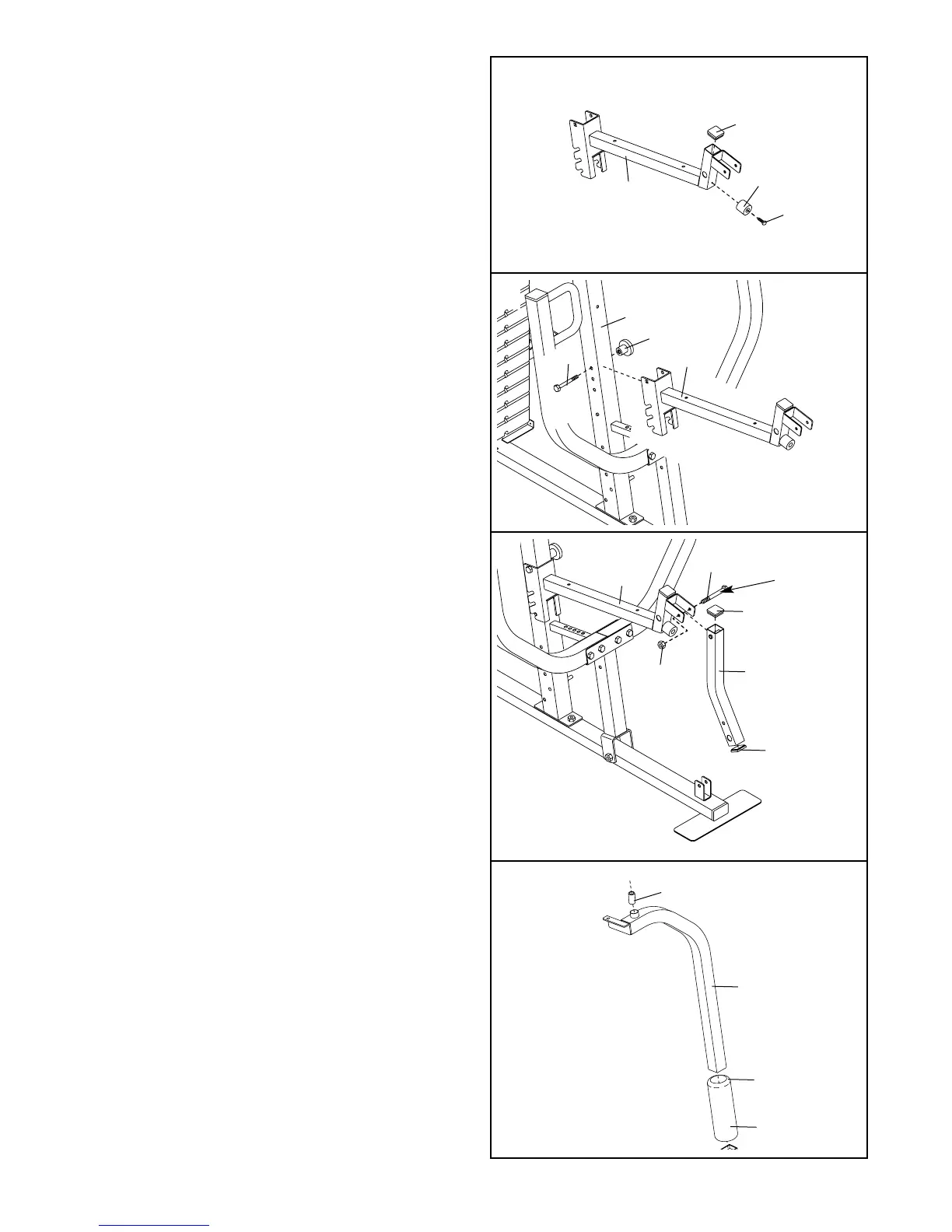

11. Press a 38mm Square Inner Cap (32) into the
end of the Seat Frame (36).
Attach the Bumper (87) to the Seat Frame (36)
with the M5 x 20mm Self-tapping Screw (80).
12. Attach the Seat Frame (36) to the Front Upright
(42) with the M10 x 80mm Carriage Bolt (99) and
the Seat Knob (49).
11
12
36
32
87
80
49
42
36
99
