Weider 9250 - Arm Assembly

9
9. Lubricate the M10 x 92mm Bolt (16). Attach the
Press Frame (17) to the Base (4) with the Bolt
and an M10 Nylon Locknut (21). Do not over-
tighten the Nylon Locknut; the Press Frame
must be able to pivot easily.
9
4
21
16
Lubricate
17

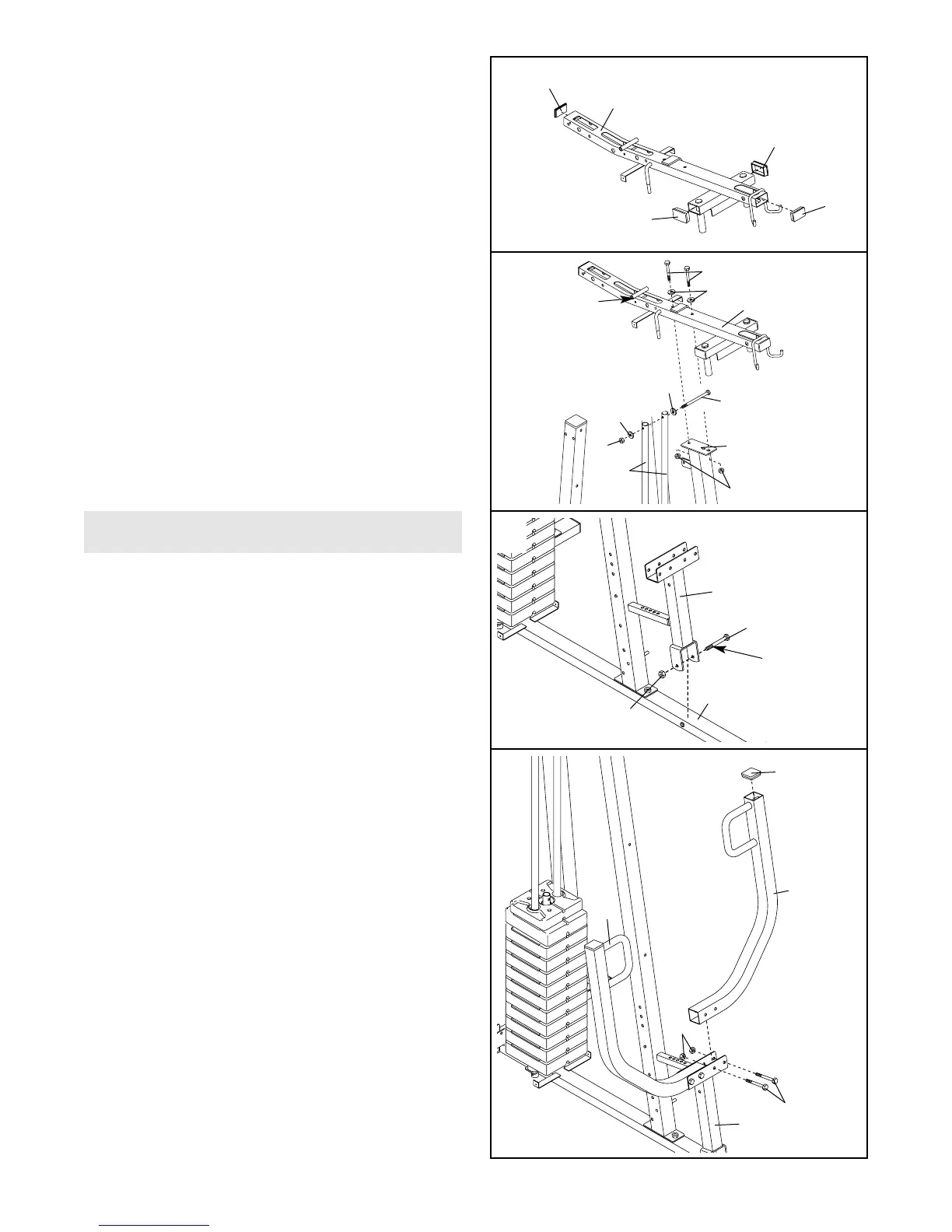

7. Press four 40mm x 60mm Inner Caps (27) into
the ends of the Top Frame (55).
8. Hold the Top Frame (55) on top of the Front
Upright (42) and between the Weight Guides (62).
Attach the Top Frame to the Front Upright with
two M10 x 60mm Bolts (7), two M10 Washers (9),
and two M10 Nylon Locknuts (21). Do not tight-
en the Nylon Locknuts yet.
Attach the Weight Guides (62) to the indicated
tube on the Top Frame (55) with an M10 x
155mm Bolt (60), two M10 Washers (9), and an
M10 Nylon Locknut (21).
7
8
27
55
62
42
Tube
21
21
60
9
7
9
55
27
27
27
10. Press a 50mm Square Inner Cap (44) into the top
of a Press Arm (46). Attach the Press Arm to the
Press Frame (17) with two M10 x 70mm Bolts
(22) and two M10 Nylon Locknuts (21).
Repeat this step with the other Press Arm
(46).
10
46
46
44
17
22
21
9
Arm Assembly
