Weider 9250 - Page 14

14

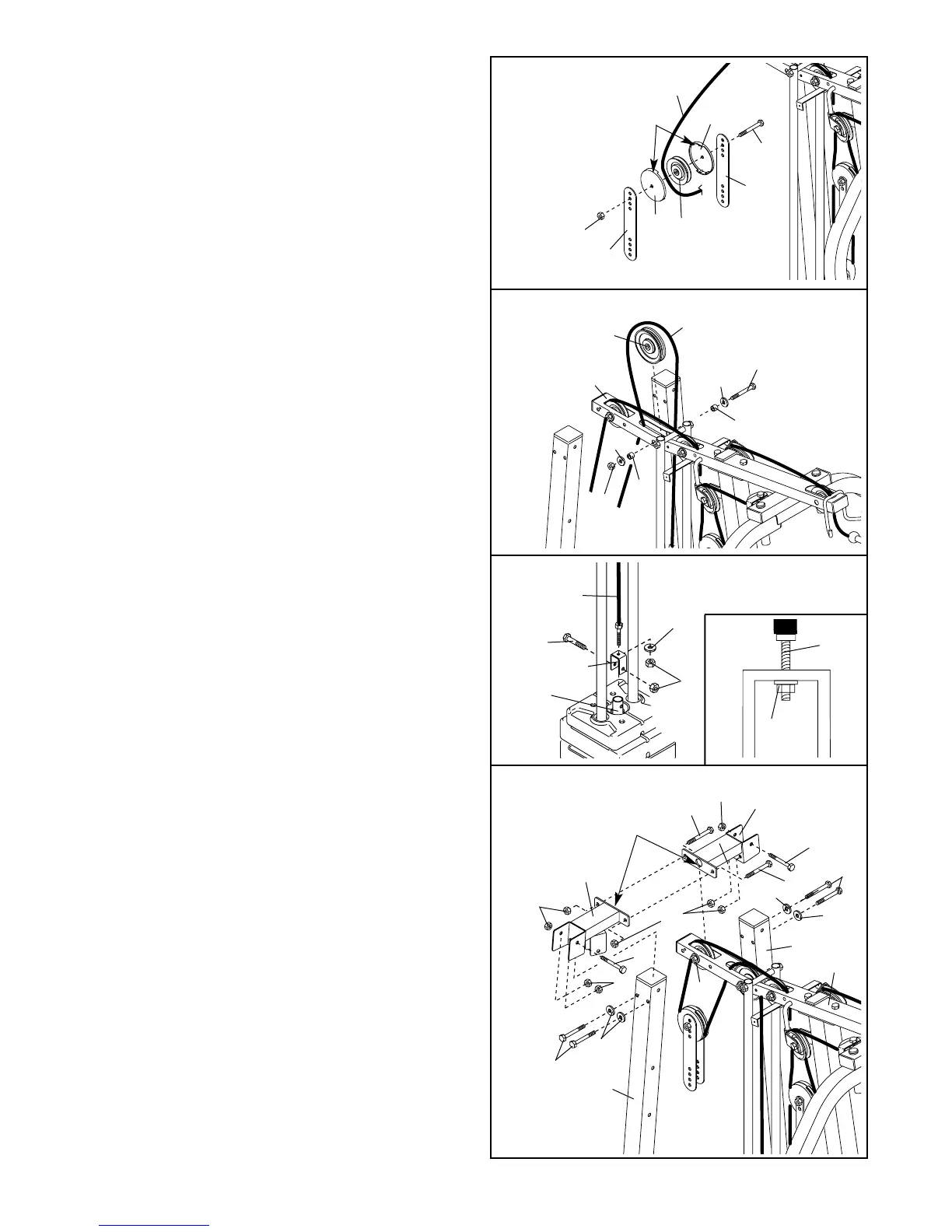

26. Wrap the Weight Cable (23) under a 90mm Pulley
(15). Attach the Pulley and a pair of Pulley
Covers (40) to the second set of holes from the
top of the two Large Pulley Plates (91) with an
M10 x 52mm Bolt (12) and an M10 Nylon Locknut
(21). Make sure the small tabs on the Pulley
Covers are on top.
27. Route the Weight Cable (23) up through the Top
Frame (55), around the 115mm Pulley (74), and
back down through the Top Frame. Attach the
Pulley inside the Top Frame with an M10 x 75mm
Bolt (76), two 17.5mm Spacers (77), two M10
Washers (9), and an M10 Nylon Locknut (21).
26
27
21
91
12
40
40
15
23
Small
Tabs
91
74
23
55
76
77
77
9
9
28. Attach the Weight Cable (23) to the “U”-Bracket
(57) with an M8 Washer (70) and an M8 Nylon
Locknut (3). Do not completely tighten the
Nylon Locknut; it should be threaded only two
turns onto the end of the Cable, as shown in
the inset drawing.
Attach the “U”-Bracket (57) to the Weight Tube
(63) with an M8 x 45mm Bolt (66) and an M8
Nylon Locknut (3).
29. Have another person hold the Right and Left
Upright Brackets (93, 94) between the Top Frame
(55) and the Carriage Upright (84) and the
Support Upright (88). The indicated holes in the
Upright Brackets should fit over the M10 x 80mm
Bolt (not shown) and the M10 Nylon Locknut (21)
used in step 25.
Attach the Upright Brackets (93, 94) to the Top
Frame (55) with two M10 x 80mm Bolts (8) and
two M10 Nylon Locknuts (21). Do not tighten the
Nylon Locknuts yet.
Attach the Right Upright Bracket (93) to the
Carriage Upright (84) with three M10 x 80mm
Bolts (8), two M10 Washers (9), and two M10
Nylon Locknuts (21). Attach the Left Upright
Bracket (94) to the Support Upright (88) in the
same way.
Tighten the four M10 Nylon Locknuts (21)
used in step 3, 8, and 29.
28
29
93
Hole
94
21
21
84
88
55
21
21
21
8
8
8
8
8
8
9
9
9
23
23
66
63
57
70
3
3
21
