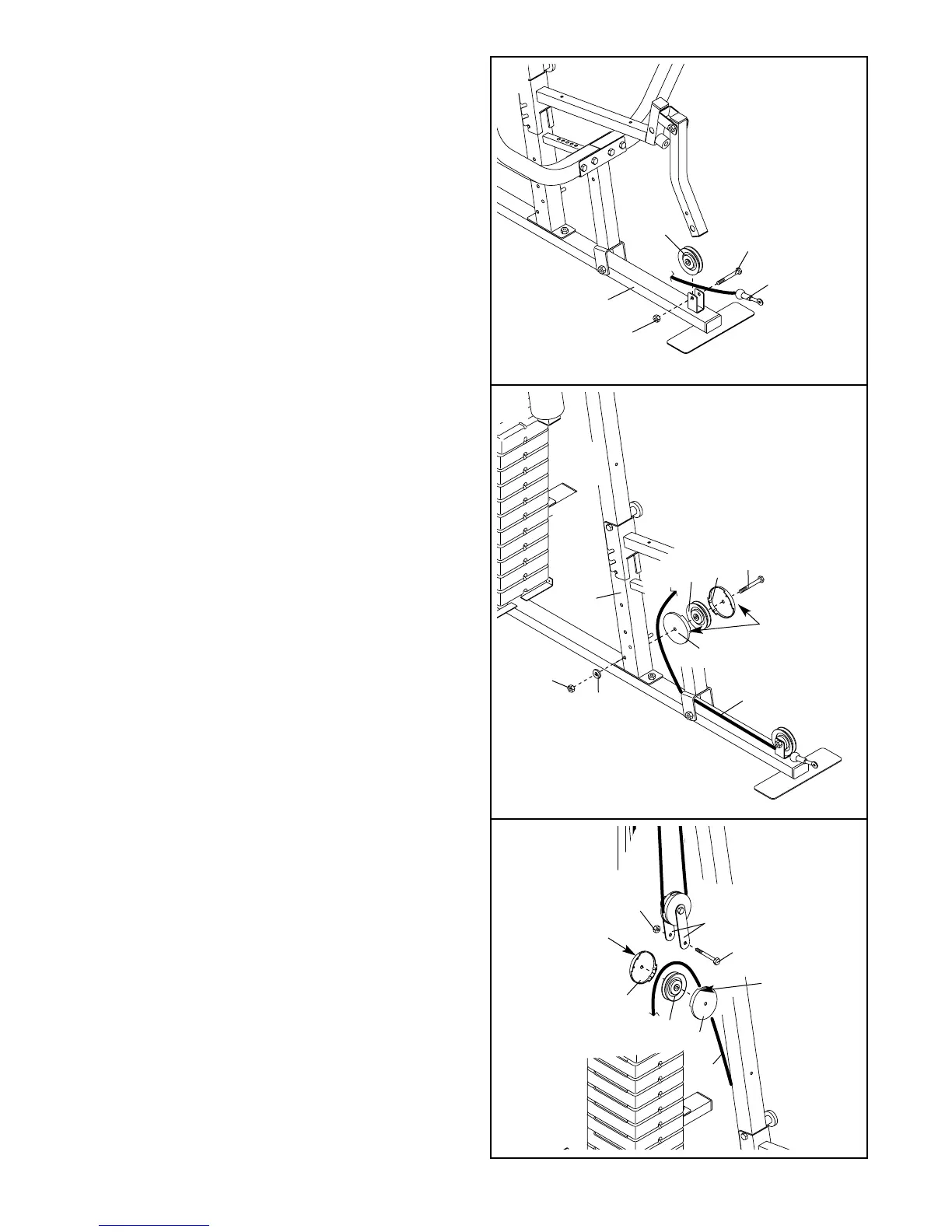

31. Wrap the Low Cable (69) around a 90mm Pulley
(15). Attach the Pulley and a pair of Pulley
Covers (40) to the bottom hole in the Front
Upright (42) with an M10 x 110mm Bolt (64), an
M10 Washer (9), and an M10 Nylon Locknut (21).
Make sure the large tabs on the Pulley Covers
are on the side shown.
32. Wrap the Low Cable (69) around a 90mm Pulley
(15). Attach the Pulley and a pair of Pulley
Covers (40) to the Pulley Plates (58) with an M10
x 52mm Bolt (12) and an M10 Nylon Locknut
(21). Make sure the large tabs on the Pulley
Covers are on top.
30. Locate the Low Cable (69), which has a ball on
each end. Rest the Cable in the bracket on the
Base (4). Attach a 90mm Pulley (15) inside the
bracket with an M10 x 45mm Bolt (100) and an
M10 Nylon Locknut (21).
