18

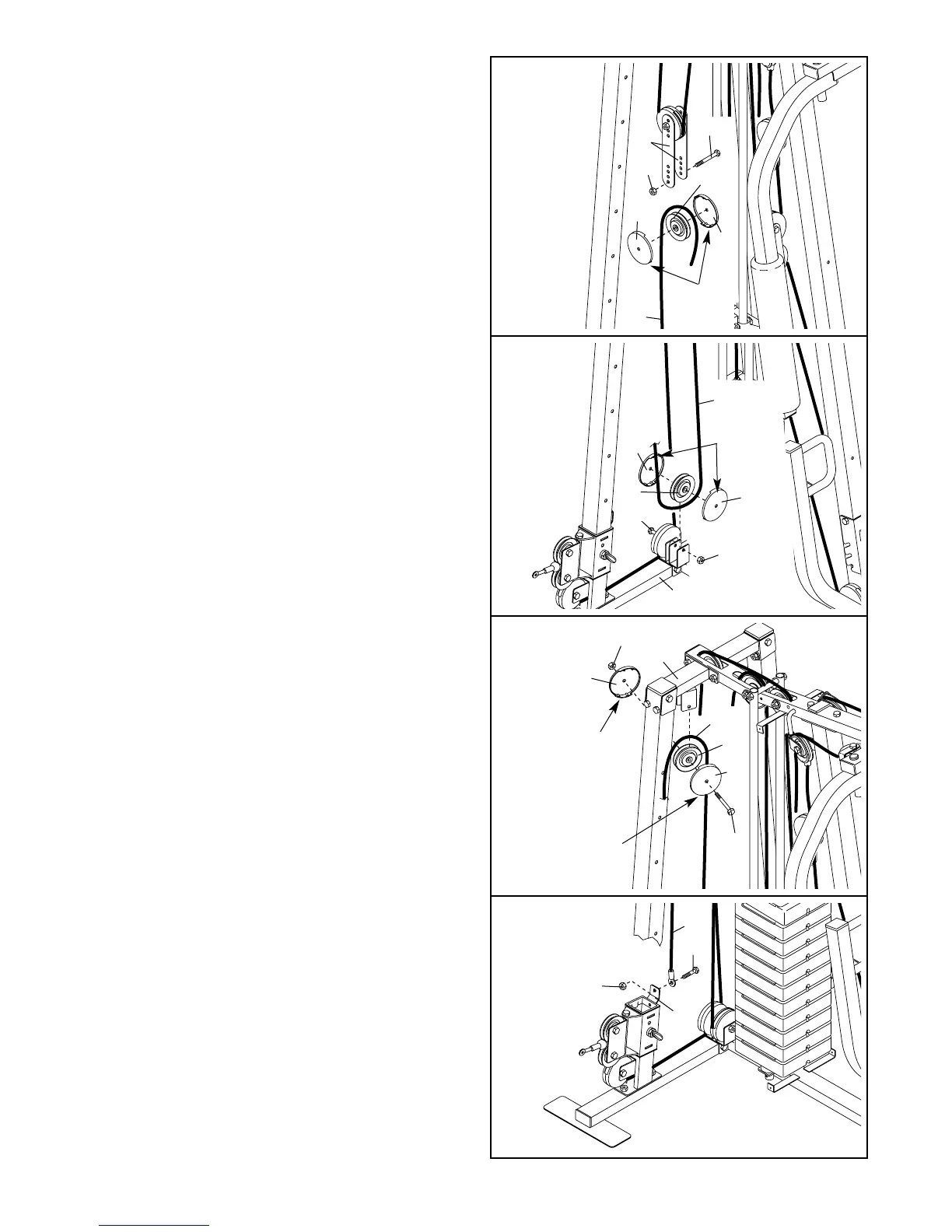

41. Wrap the Carriage Cable (83) around a 90mm
Pulley (15). Attach the Pulley and a pair of Pulley
Covers (40) to the first set of holes from the bot-
tom of the two Large Pulley Plates (91) with an
M10 x 52mm Bolt (12) and an M10 Nylon Locknut
(21). Make sure the small tabs on the Pulley
Covers are on bottom.
43. Wrap the Carriage Cable (83) around a 90mm
Pulley (15). Attach the Pulley and a pair of Pulley
Covers (40) inside the bracket on the Right
Upright Bracket (93) with an M10 x 52mm Bolt
(12) and an M10 Nylon Locknut (21). Make sure
the small tabs on the Pulley Covers are on the
bottom.
44. Attach the Carriage Cable (83) to the Carriage
(89) with an M10 x 20mm Bolt (98) and an M10
Nylon Locknut (21).
42. Wrap the Carriage Cable (83) under a 90mm
Pulley (15). Attach the Pulley and a pair of Pulley
Covers (40) inside the other bracket on the
Stabiliser (5) with the M10 x 105mm Bolt (106)
used in step 40, and an M10 Nylon Locknut (21).
Make sure the small tabs on the Pulley Covers
are on top.
41
42
43
44
12
21
91
40
40
15
83
Small
Tab
40
40
15
106
21
5
83
Small
Tab
Small
Tab
40
40
12
93
15
83
21
21
89
83
98
Small
Tab
