Weider 9250 - FRAME ASSEMBLY

6
1.

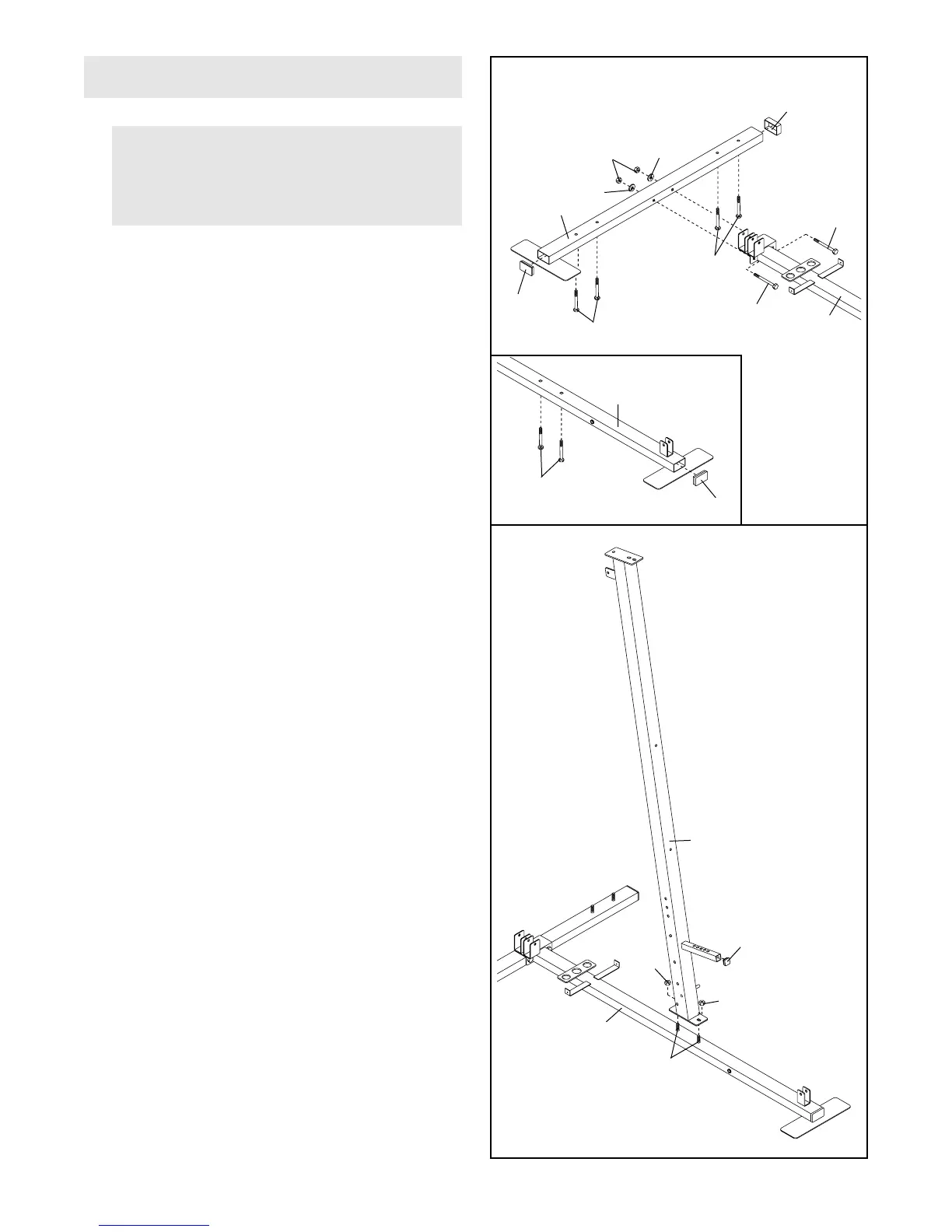

Press a 40mm x 60mm Outer Cap (10) onto the
end of the Stabiliser (5). Press two 40mm x
60mm Inner Caps (27) into the ends of the Base
(4) and the Stabiliser.
Insert six M10 x 55mm Carriage Bolts (1) up
through the Base (4) and the Stabiliser (5). Place
the Base and the Stabiliser flat on the floor.
Attach the Base (4) to the Stabiliser (5) with two
M10 x 78mm Bolts (14), two M10 Washers (9),
and two M10 Nylon Locknuts (21).
2. Press the 25mm Square Inner Cap (97) into the
Front Upright (42).
Attach the Front Upright (42) to the Base (4) with
the two M10 x 55mm Carriage Bolts (1) and two
M10 Nylon Locknuts (21).
Before beginning assembly, make sure you
have read and understood the information
in the box on page 5. This introduction will
save you more time than it takes to read it.
