19
29. Route the High Cable (44) over a Pulley (69).
Attach the Pulley (69) and a Cable Trap (71) to
the right side of the Top Frame (6) with an M10
x 93mm Bolt (63), an M10 Washer (88), and an
M10 Locknut (74). Make sure that the Cable
Trap is oriented to hold the High Cable in
the groove of the Pulley.
28
29
7
4
74
71
6
9
69
88
44
44
6
95
95
66
6

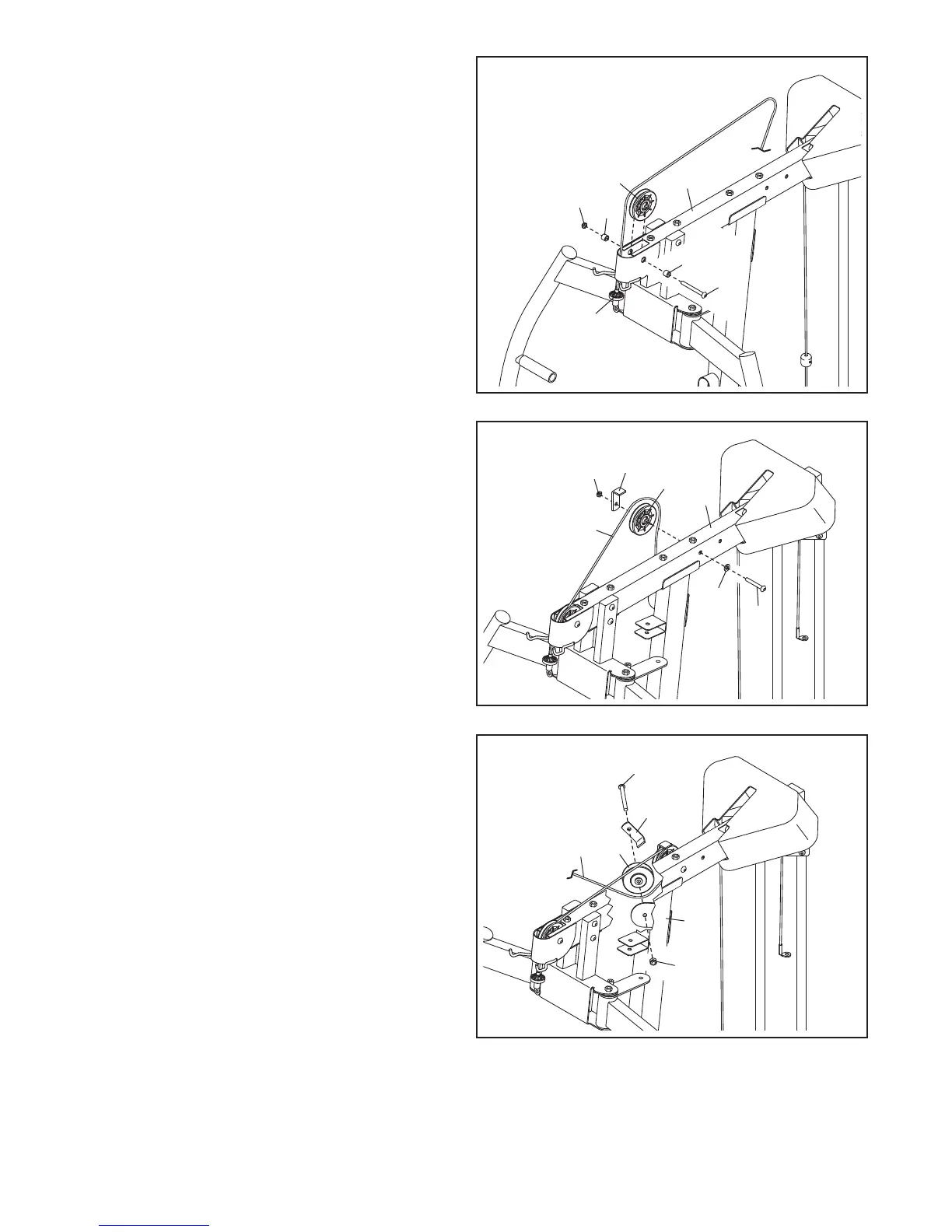

28. Identify the High Cable (44). Route the High
Cable through the bracket on the Top Frame (6)
and over a Pulley (69).
Attach the Pulley (69) inside the Top Frame (6)
w
ith an M10 x 68mm Bolt (66), two 14.8mm
Spacers (95), and an M10 Locknut (74).
63
30. Route the High Cable (44) under a V-pulley
(67).
Attach the V-pulley (67) and a Cable Trap (71)
to the Upright (5) with an M10 x 57mm Bolt (93)
and an M10 Locknut (74). Make sure that the
Cable Trap is oriented to hold the High
Cable in the groove of the V-pulley.
30
93
74
71
5
67
44
