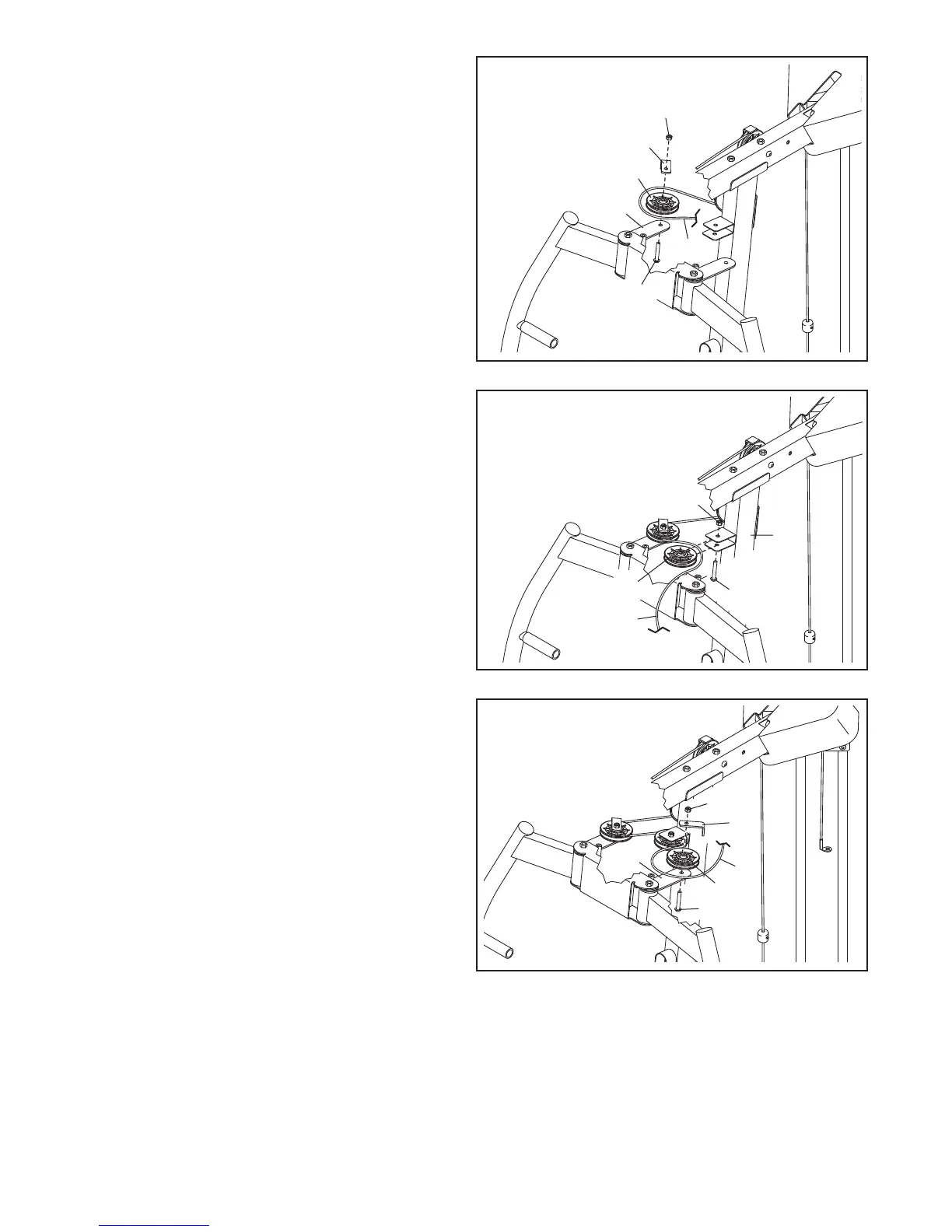

1. Route the High Cable (44) around a Pulley (69).
Attach the Pulley (69) and a Cable Trap (71) to
the Right Butterfly Pulley Bracket (21) with an
M
10 x 47mm Bolt (91) and an M10 Locknut
(74). Make sure that the Cable Trap is ori-
e
nted to hold the High Cable in the groove
of the Pulley.
31
74
7
1
69
2
1
44
91
32. Route the High Cable (44) around a Pulley (69).
Attach the Pulley (69) to the Upright (5) with an
M10 x 43mm Bolt (65) and an M10 Locknut
(74).
32
5
65
74
44
69
33
74
71
44
69
20
91
33. Route the High Cable (44) around a Pulley (69).
Attach the Pulley (69) and a Cable Trap (71) to
the Left Butterfly Pulley Bracket (20) with an
M10 x 47mm Bolt (91) and an M10 Locknut
(74). Make sure that the Cable Trap is ori-
ented to hold the High Cable in the groove
of the Pulley.
