Weider 9900i - Page 24

24
42

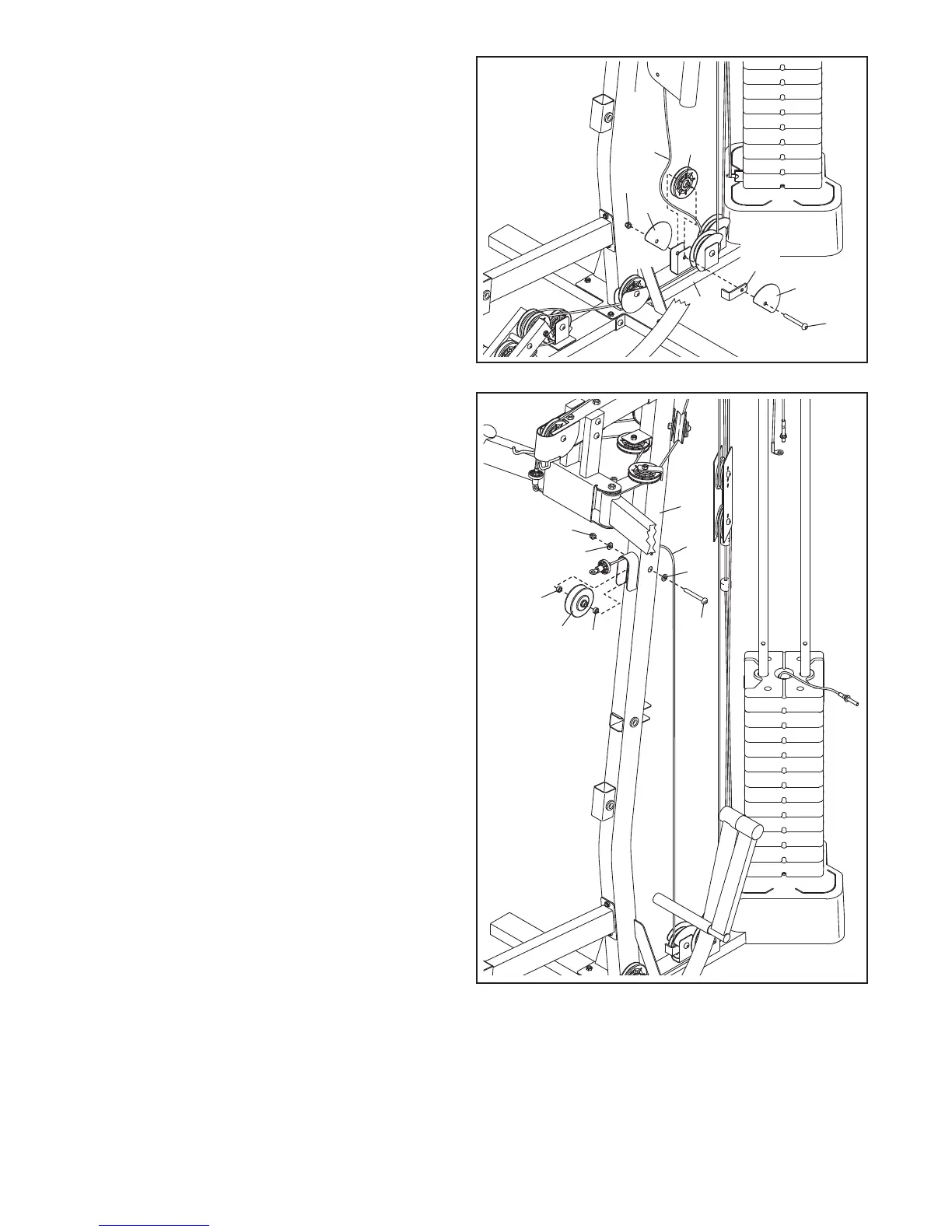

42. Route the Low Cable (43) under a Pulley (69).
Attach the Pulley (69) and a Cable Trap (71) to
t
he front bracket on the Base (1) with an M10 x
50mm Button Bolt (76), two Half Guards (72),
a
nd an M10 Locknut (74).
Make sure that the Cable Trap (71) is ori-
ented to hold the Low Cable (43) in the
groove of the Pulley (69). Make sure that the
Half Guards (72) are outside the bracket.
69
74
76
72
72
1
43
43
43. Route the Low Cable (43) through the Upright
(5) as shown.
Attach a V-pulley (67) inside the Upright (5)
under the Low Cable (43) with an M10 x 65mm
Bolt (75), two M10 Washers (88), two 6.35mm
Spacers (94), and an M10 Locknut (74).
5
43
75
88
88
74
94
94
67
71
