Weider 9900i - Page 27

27
49

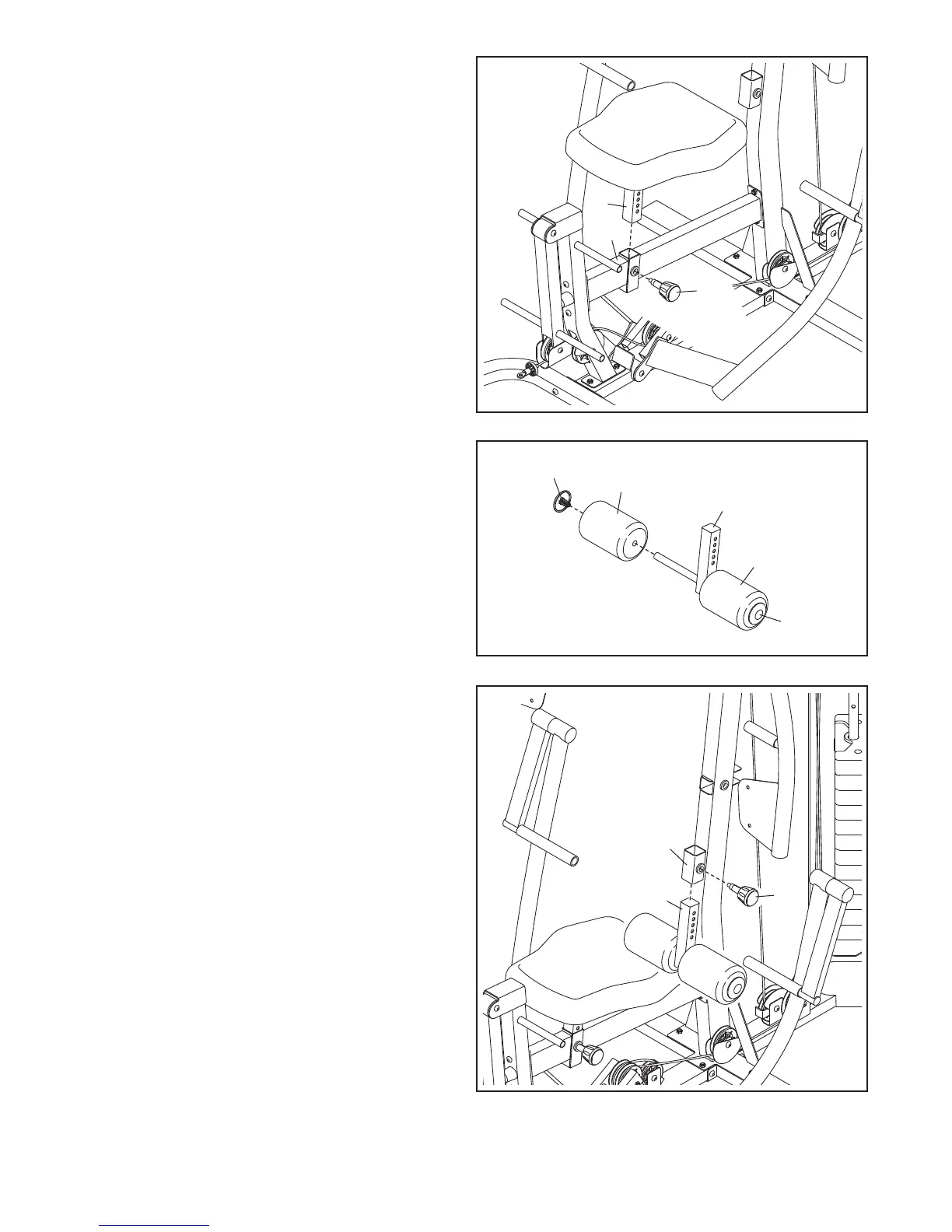

49. Insert the Cushion Frame (9) into the Seat Tube
(8).
T
ighten an Adjustment Knob (29) into the Seat
Tube (8) and one of the holes in the Cushion
F
rame (9). Make sure that the Adjustment
Knob is engaged in a hole.
29
9
8
50
50. Orient the Leg Lock Frame (12) as shown.
Slide a Foam Pad (35) onto each side of the
Leg Lock Frame (12). Then, press a Pad Cap
(36) into each Foam Pad.
12
36
35
36
35
51. Insert the Leg Lock Frame (12) into the indi-
cated bracket on the Upright (5).
Tighten an Adjustment Knob (29) into the
Upright (5) and one of the holes in the Leg Lock
Frame (12). Make sure that the Adjustment
Knob is engaged in a hole.
51
5
29
12
