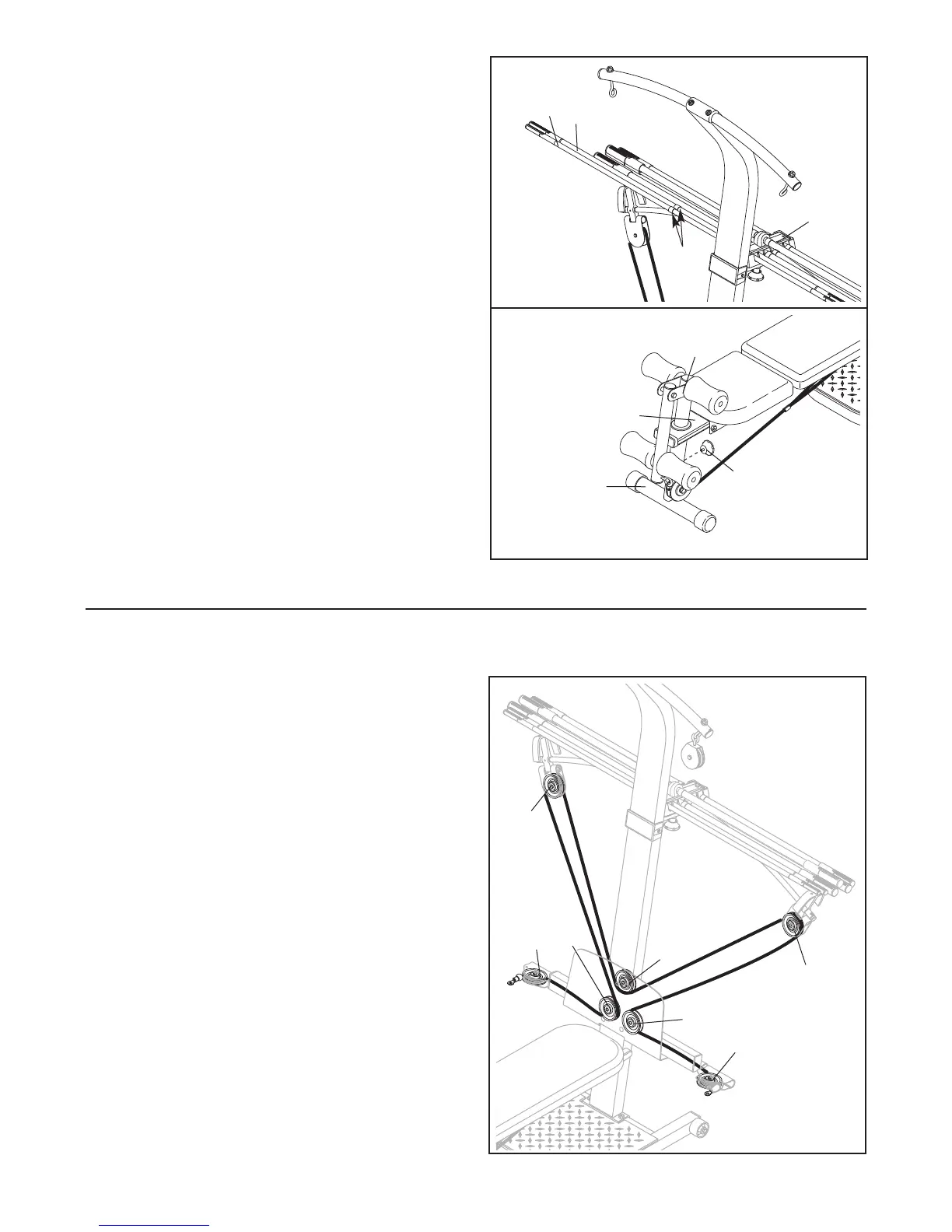

CABLE DIAGRAM
The cable diagram shows the proper routing of the
Long Cable (80). Use the diagram to make sure that
the cable has been assembled correctly. If the cable
has not been correctly routed, the resistance system
will not function properly and damage may occur. The
numbers show the correct route for the cable.
7
4
5
6
1
2
Long Cable (80)
3
16
USING THE REMOVABLE RESISTANCE BARS
The Removable Resistance Bars (36, 67) can be used
to exercise apart from the resistance system, as shown
in the video or on the exercise guide. To remove a
Resistance Bar, pull it out of the Tray (35).
T
o replace the Removable Resistance Bars (36, 67),
slide them into the Tray (35) from the side shown, so
that the arrows on the rings point toward the Tray.
Make sure the rings are pushed against the Tray.
35
19
42
6
5
36
67
Rings
ADJUSTING THE LEG DEVELOPER
To adjust the height of the Leg Developer (19),
remove the Bench Knob (42) from the Front Leg (6).
Align the hole in the Leg Developer with one of the
holes in the Front Leg. Retighten the Knob into the
Front Leg and Leg Developer.
To Next Page
