Weider Cross Bow By 1500x User Manual

75
6

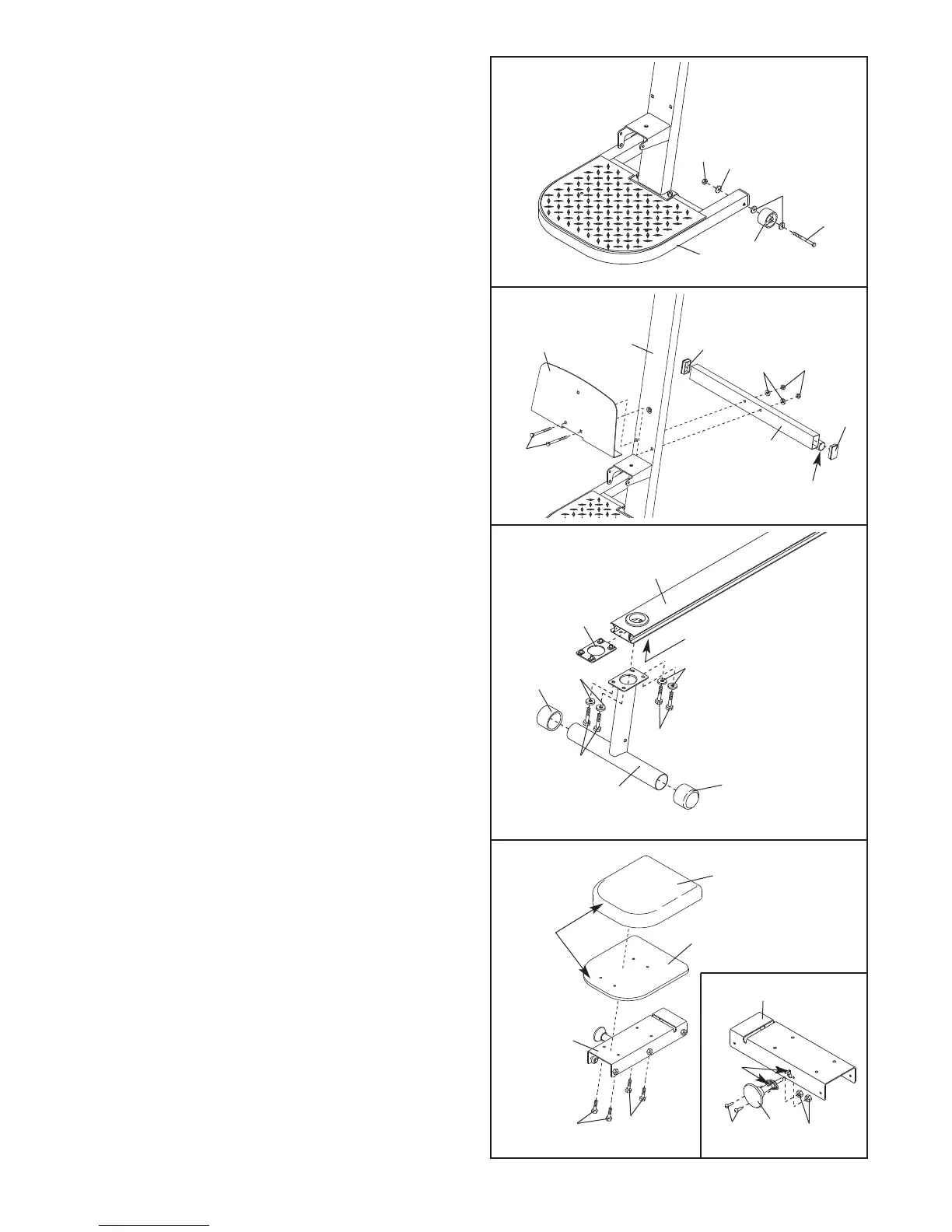

2. Attach a Wheel (31) to the outside of the Base (1)
with an M10 x 108mm Bolt (81), three M10
W
ashers (75), and an M10 Nylon Locknut (76).
Do not overtighten the Nylon Locknut; the
W
heel must be able to turn easily.
Attach the other Wheel (not shown) in the
same manner.
2
1
31
75
76
75
81
3. Press a 38mm x 64mm Inner Cap (41) into each
end of the Cross Tube (11).
Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom. Attach the Foot Plate
(23) and the Cross
Tube to the Upright (3) with
two M10 x 140mm Carriage Bolts (73), two M10
Washers (75), and two M10 Nuts (47).
Do not
insert a bolt into the top hole in the Foot Plate
yet.
3
4
41
3
73
41
Welded
Tube
11
47
23
5. See the inset drawing. Snap the Seat Knob (45)
into the Seat Carriage (12) and attach it with two
M6 x 16mm Screws (82) and two M6 Black Nylon
Locknuts (69). Make sure the slot in the Knob
is aligned with the slot in the Seat Carriage.
Orient the Seat (13) and Seat Backing (9) as
shown.
Attach the Seat and Seat Backing to the
Seat Carriage (12) with four M6 x 16mm Screws
(82).
4. Press two 57mm Round Outer Caps (27) onto the
ends of the Front Leg (6).
Orient the Bench Rail (5) as shown. Slide the Rail
Bracket (105) into the indicated end of the Bench
Rail, and align the holes in the Bracket with the
holes in the Bench Rail.
Orient the Front Leg (6) as shown. Attach the
Front Leg to the Bench Rail (5) with the Rail
Bracket (105), four M8 x 25mm Button Screws
(46), and four M8 Split Washers (52).
5
5
105
Holes
6
46
52
52
46
27
27
13
9
Round
End
Slot
12
12
45
69
82
82
82
