Weider Cross Bow By 1500x User Manual

8

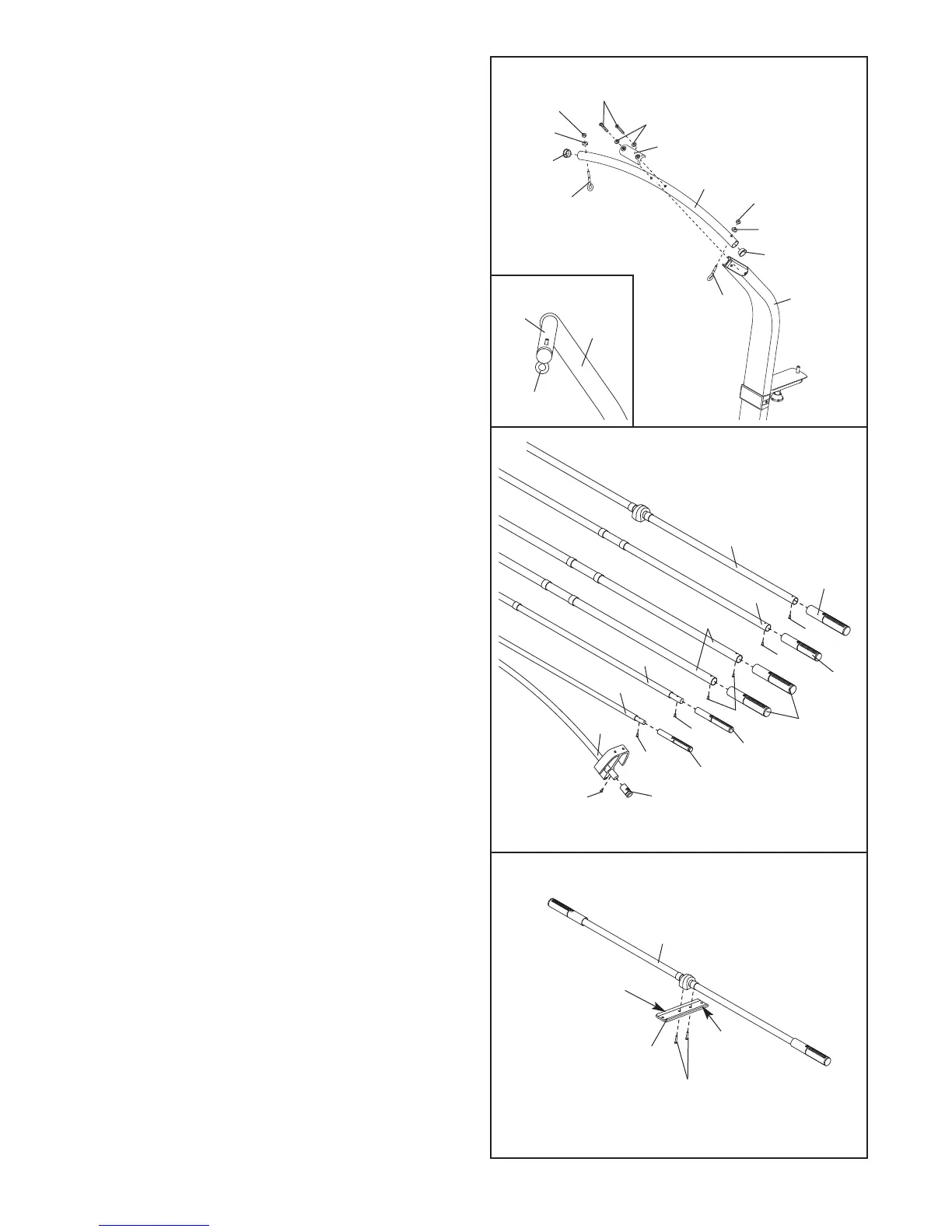

9. Press two 38mm Round Inner Caps (38) into the
ends of the Top Frame (10).
Attach two Eyebolts (34) to the Top Frame (10)
w
ith two M8 Washers (59) and two M8 Nylon
Locknuts (65). Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Head Screws (70),
two M10 Washers (75), and the Top Frame Cover
(93).
Make sure that the Eyebolts (34) are ori-
ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reat-
tach it.
9
3
8
65
65
10
34
59
34
70
59
9
3
75
4
38
34
10
4
Side View
10. Attach the two 10-pound Short Resistance Bar
Caps (20) to the 10-pound Resistance Bar (44)
with two M4 x 12mm Flat Head Screws (85).
Using twelve M4 x 12mm Flat Head Screws (85),
attach the two 10-pound Resistance Bar Caps
(101) to the 10-pound Removable Resistance Bar
(67), the two 20-pound Resistance Bar Caps (88)
to the 20-pound Removable Resistance Bar (36),
the six 80-pound Resistance Bar Caps (100) to
the two 80-pound Resistance Bars (95) and the
80-pound Top Resistance Bar (111), and the two
40-pound Resistance Bar Caps (79) to the 40-
pound Resistance Bar (96).
10
79
88
101
20
100
100
67
36
95
96
85
85
85
85
85
44
85
111
11. Orient the Resistance Bar Cover Plate (72), with
the edges up. Attach the 80-pound Top
Resistance Bar (111) to the Resistance Bar Cover
Plate with the two 1/4” x 25mm Flat Head Screws
(112).
Note: The Top Resistance Bar is closer
to the back of the Cover Plate.
11
111
112
72
Edges
up
Back
