РАСЕ 9 WEIDER SPORTING GOODS

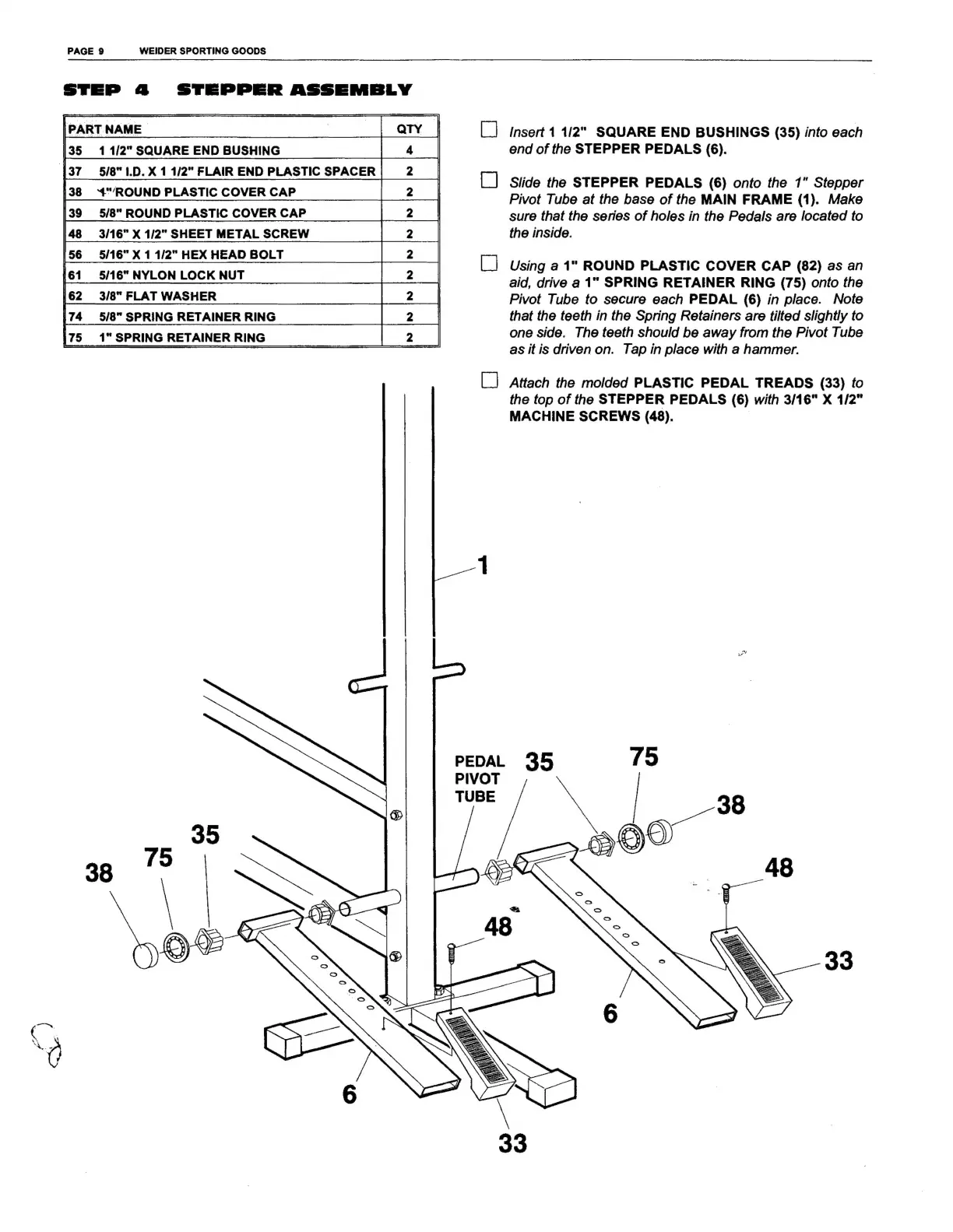

STEP 4 STEPPER ASSEMBLY
[PART NAME
37
518"1р.
X
1
1/2"
FLAIR
END
PLASTIC
SPACER
|
138
*"ROUNDPLASTICCOVERCAP
—
—
|
39 5/8" ROUND PLASTIC COVER CAP
48 3/16" X 1/2" SHEET METAL SCREW
156 5/16" Х 1 1/2" НЕХНЕАОВОТ — —
161 5/16" NYLON LOCK NUT
75 1" SPRING RETAINER RING
[L——————————————————M———
L
0
Lj
PEDAL 35
PIVOT
Insert 1 112" SQUARE END BUSHINGS (35) into each
end of the STEPPER PEDALS (6).
Slide the STEPPER PEDALS (6) onto the 1" Stepper
Pivot Tube at the base of the MAIN FRAME (1). Make
sure that the series of holes in the Pedals are located to
the inside.
Using a 1" ROUND PLASTIC COVER CAP (82) as an
aid, drive a 1" SPRING RETAINER RING (75) onto the
Pivot Tube to secure each PEDAL (6) іл place. Note
that the teeth in the Spring Retainers are tilted slightly to
one side. The teeth should be away from the Pivot Tube
as it is driven on. Tap in place with a hammer.
Attach the molded PLASTIC PEDAL TREADS (33) fo
the top of the STEPPER PEDALS (6) with 3/16" X 1/2"
MACHINE SCREWS (48).
