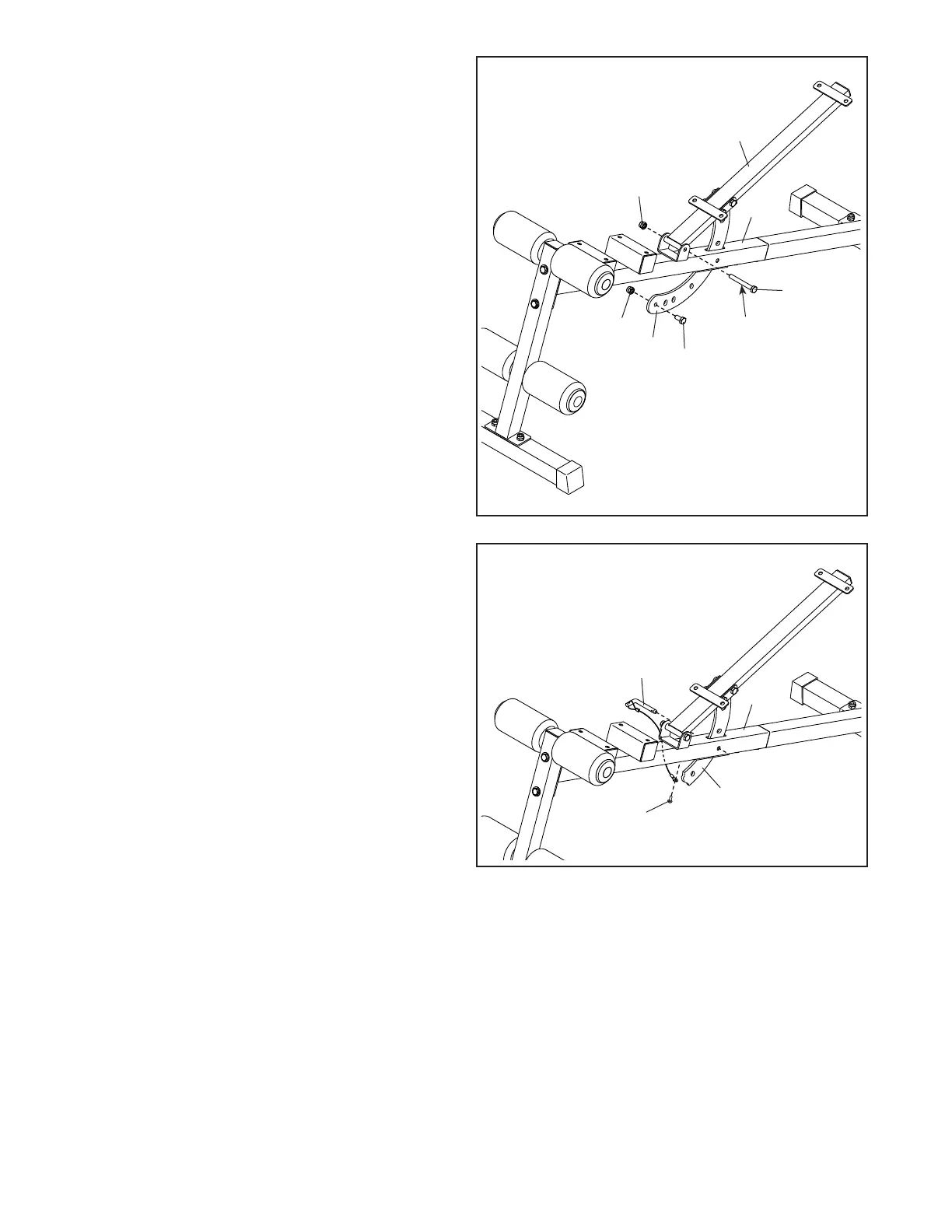

9. Attach the tether on the Locking Pin (21) to the
Frame (1) with an M4 x 19mm Screw (28). Next,
insert the Locking Pin into the Frame and into an
adjustment hole in the Pivot Bracket (6).
6
9
21
1
28
8
8. Using a plastic bag to keep your fingers clean,
apply some of the included grease to an
M10 x 85mm Bolt (23).
Insert the Pivot Bracket (6) into the slot in the
Frame (1). Attach the Backrest Frame (5) to
the Frame with the M10 x 85mm Bolt (23) and
an M10 Locknut (19). Do not overtighten the
Locknut; the Backrest Frame must pivot
easily.
Then, attach an M10 x 20mm Bolt (25) and an
M10 Locknut (19) to the hole in the end of the
Pivot Bracket (6).
See step 7. Tighten the M10 Locknuts (19).
23
19
19
5
6
Grease
1
25
To Next Page
