Weider Platinum XP600 - Page 7

2. 2

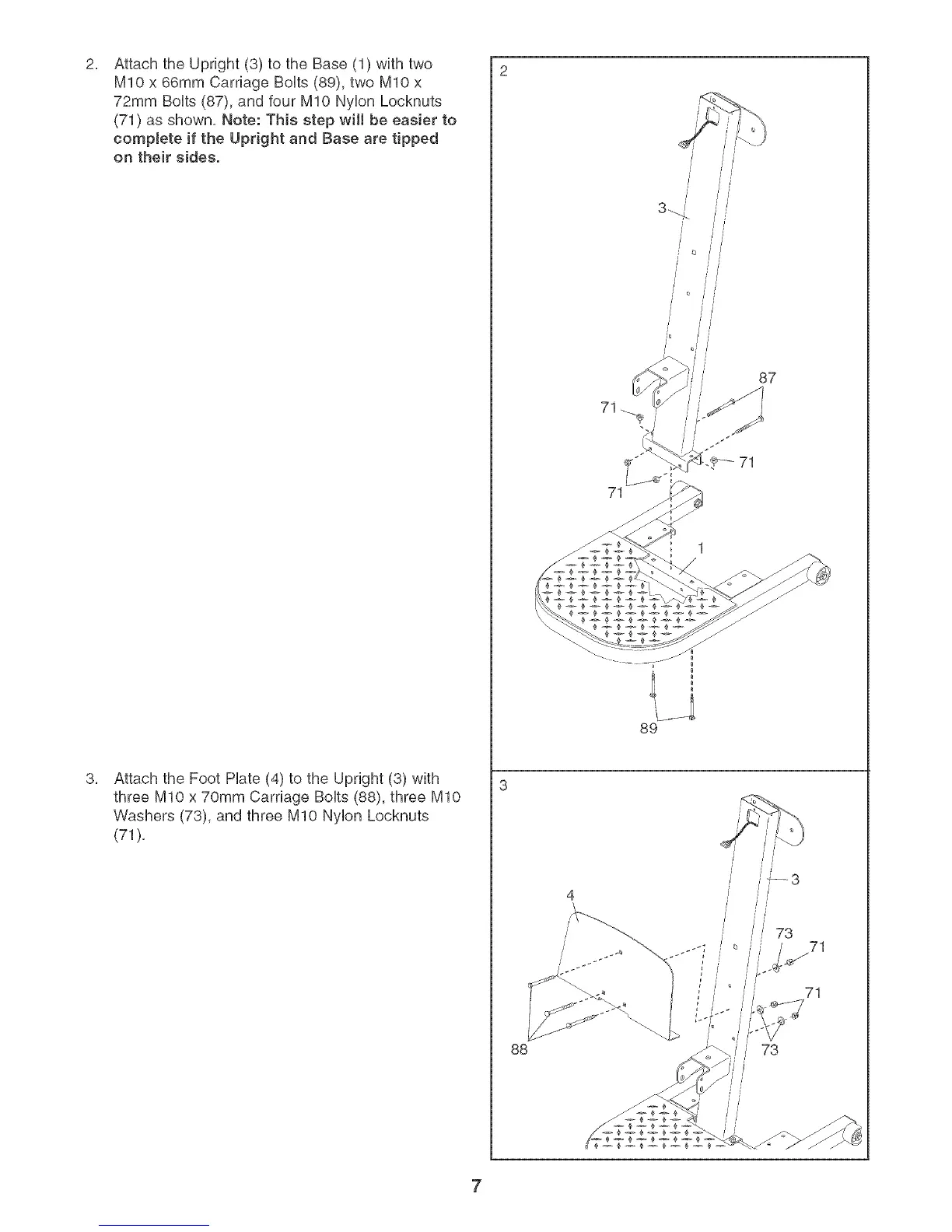

Attach the Upright (3) to the Base (1) with two
MIO x 66mm Carriage BoUts(89), two MIO x
72mm BoUts(87), and four MIO NyUonLocknuts
(71) as shown. Note: This step will be easier to
complete if the Upright and Base are tipped
on their sides.
Attach the Foot Hate (4) to the Upright (3) with
three MIO x 70mm Carriage BoUts(88), three MIO
Washers (73), and three MIO NyUon Locknuts
(71).
88
i i i
/ o
'° ii
/
//
87
71
71
89
73
7
