1.

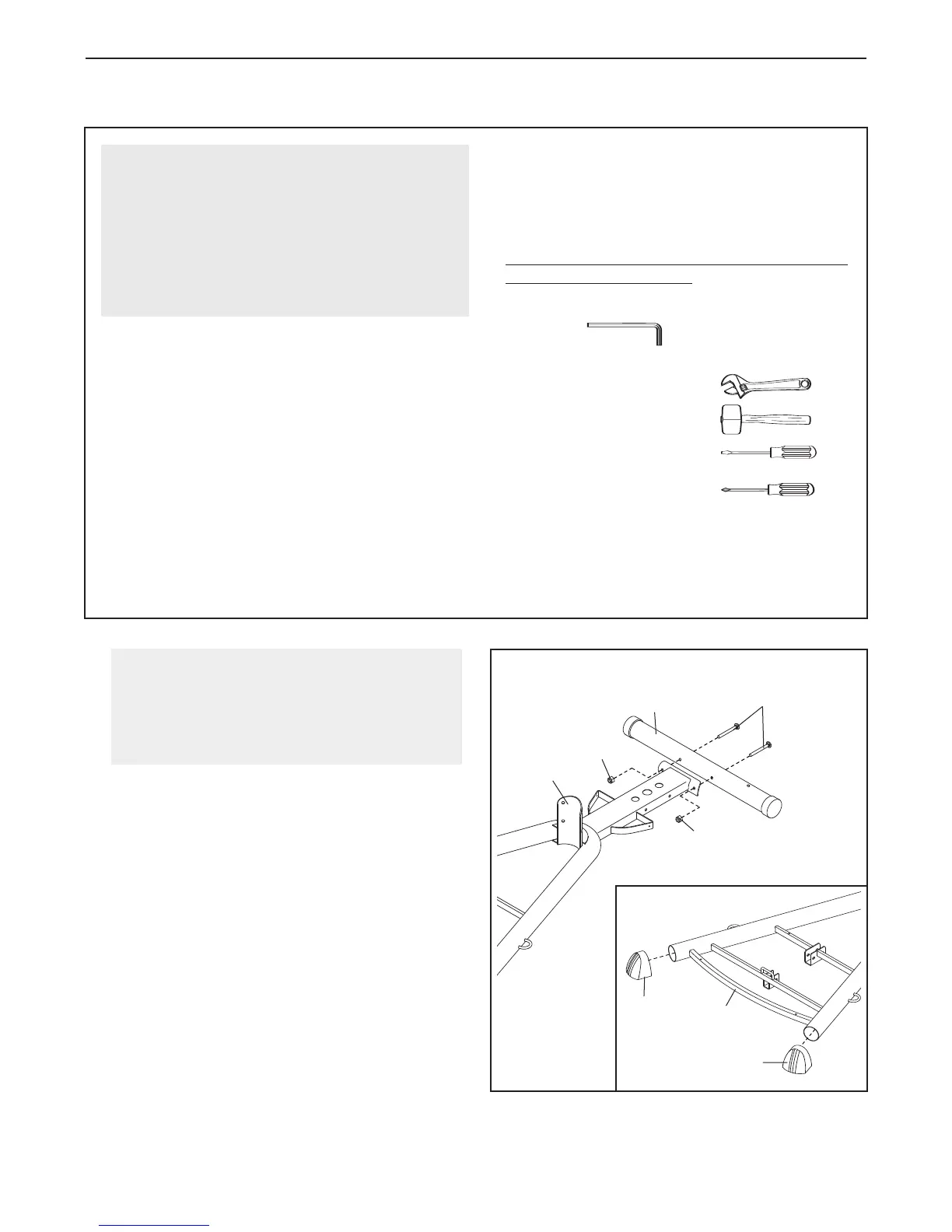

Attach the Rear Stabilizer (5) to the Base (1) with
the two M8 x 76mm Carriage Bolts (59) and two
M8 Nylon Locknuts (74).
See the inset drawing. Press the two Base Caps
(38) onto the Base (1).
1
1
1
5
59
74
38
38
74
Before beginning assembly, make sure you
understand the information in the box
above. For help identifying small parts, use
the PART IDENTIFICATION CHART in the
center of this manual.
ASSEMBLY
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Because of its weight and size, the weight sys-
tem should be assembled in the location where it
will be used. Make sure that there is enough
clearance to walk around the weight system as
you assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
Assembly may be require the included grease
and hex key , and the following tools
(not included):
•
Two adjustable spanners
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape, and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end span-
ners, or a set of ratchet spanners.
Make Things Easier for Yourself
Everything in this manual is designed to ensure
t
hat the weight system can be assembled suc-
cessfully by almost anyone. However, the weight
system has many parts and the assembly
process will take time. By setting aside plenty of
time, assembly will go smoothly.
To Next Page
