Weider Pro 9510 - VKR Assembly

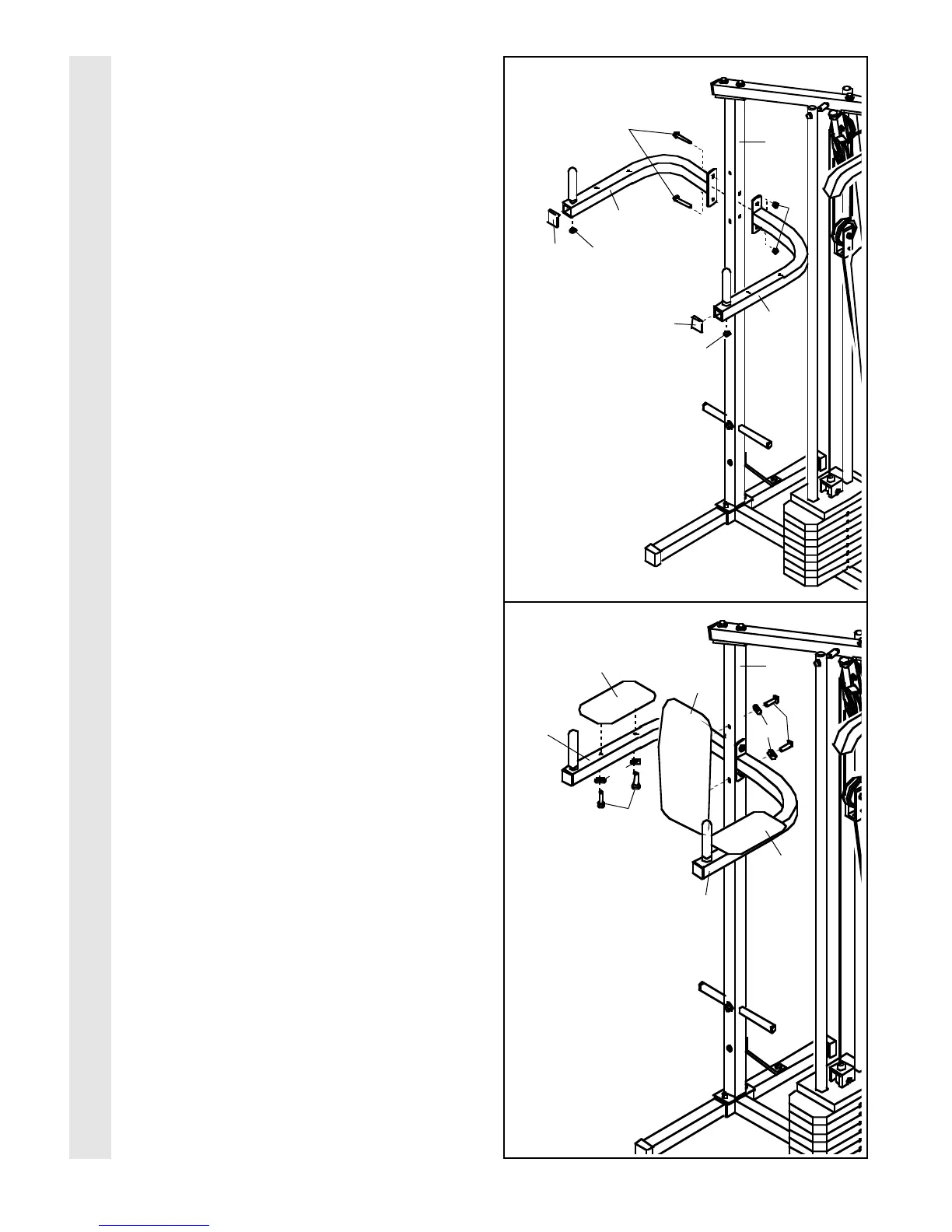

36. Press 1 1/2” Square Inner Caps (32) into the
ends of the Left VKR Arm (79) and the Right
VKR Arm (80). Press 1” Round Inner Caps
(49) into the ends of the handles on the Left
VKR Arm and the Right VKR Arm.
Attach the Left VKR Arm (79) and the Right
VKR Arm (80) to the Rear Upright (56) with
two 5/16” x 3” Bolts (81) and two 5/16” Nylon
Locknuts (3).
37. Attach a VKR Armrest (78) to the Right VKR
Arm (80) with two 1/4” x 2” Screws (24) and
two 1/4” Flat Washers (10).
Attach a VKR Armrest (78) to the Left VKR
Arm (79) in the same manner.
Attach the VKR Backrest (77) to the Rear
Upright (56) with two 1/4” x 2 1/2” Screws
(43) and two 1/4” Flat Washers (10).
36
81
3
32
32
80
79
10
43
77
78
78
24
80
79
37
16
VKR ASSEMBLY
49
49
10
56
56
