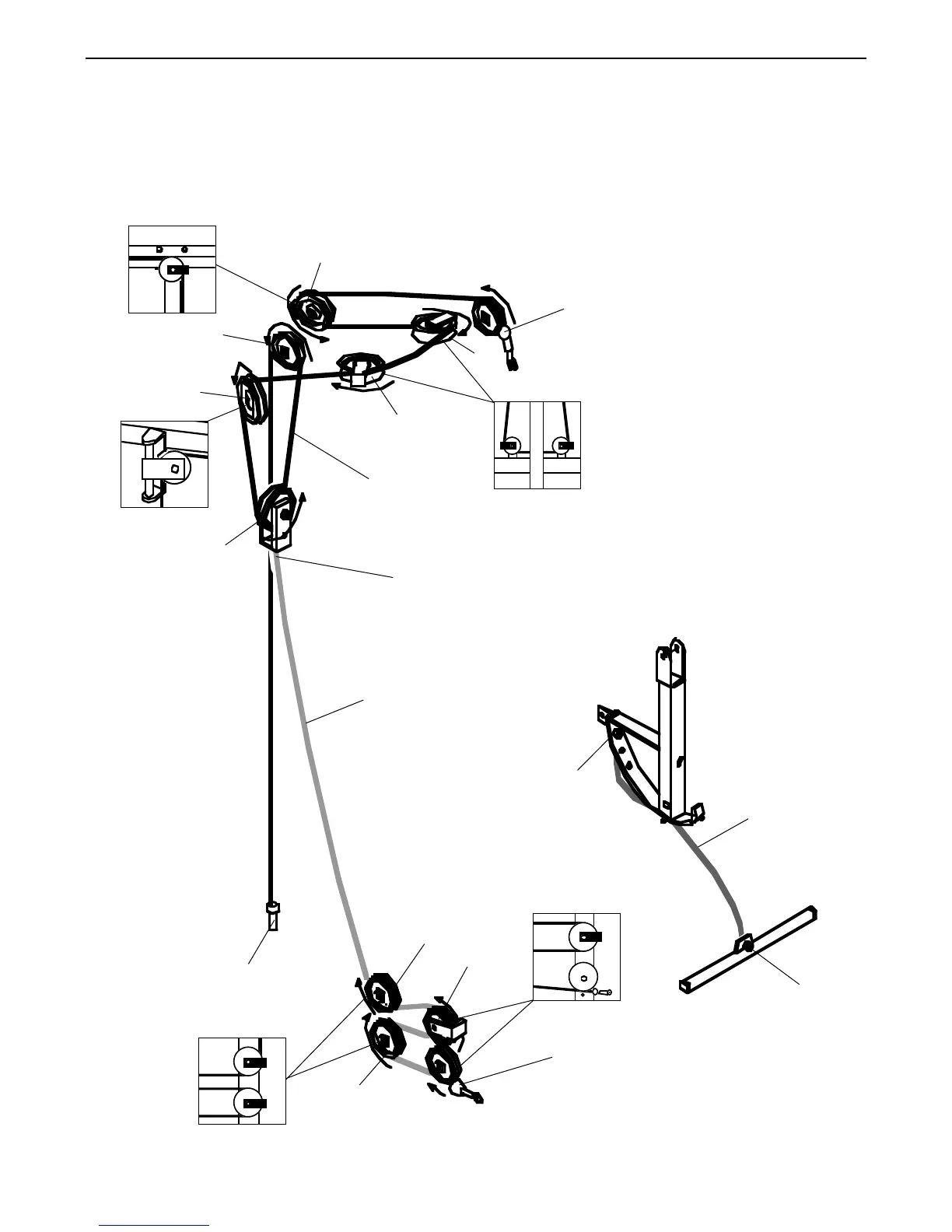

CABLE DIAGRAM
The diagram below shows the proper routing of the Short Cable (35), the Medium Cable (58), and the Long
Cable (23). Use the diagram to be sure that the cables and the cable traps have been assembled correctly. If
the cables have not been correctly routed, the home gym system will not function properly and damage may
occur. The inset drawings show the proper positioning of the cable traps. The cable traps should be positioned
so that the cables will not come off the pulleys. Be sure that the cable traps do not touch or bind the cables.
4
3
2
7
6
5
4
3
TOP VIEW
2
8—Weight Stack
Long Cable (23)
1—Low Pulley
Medium Cable
(58)
2
1—High Pulley
5—Long “U”-Bracket
Short Cable (35)
1
