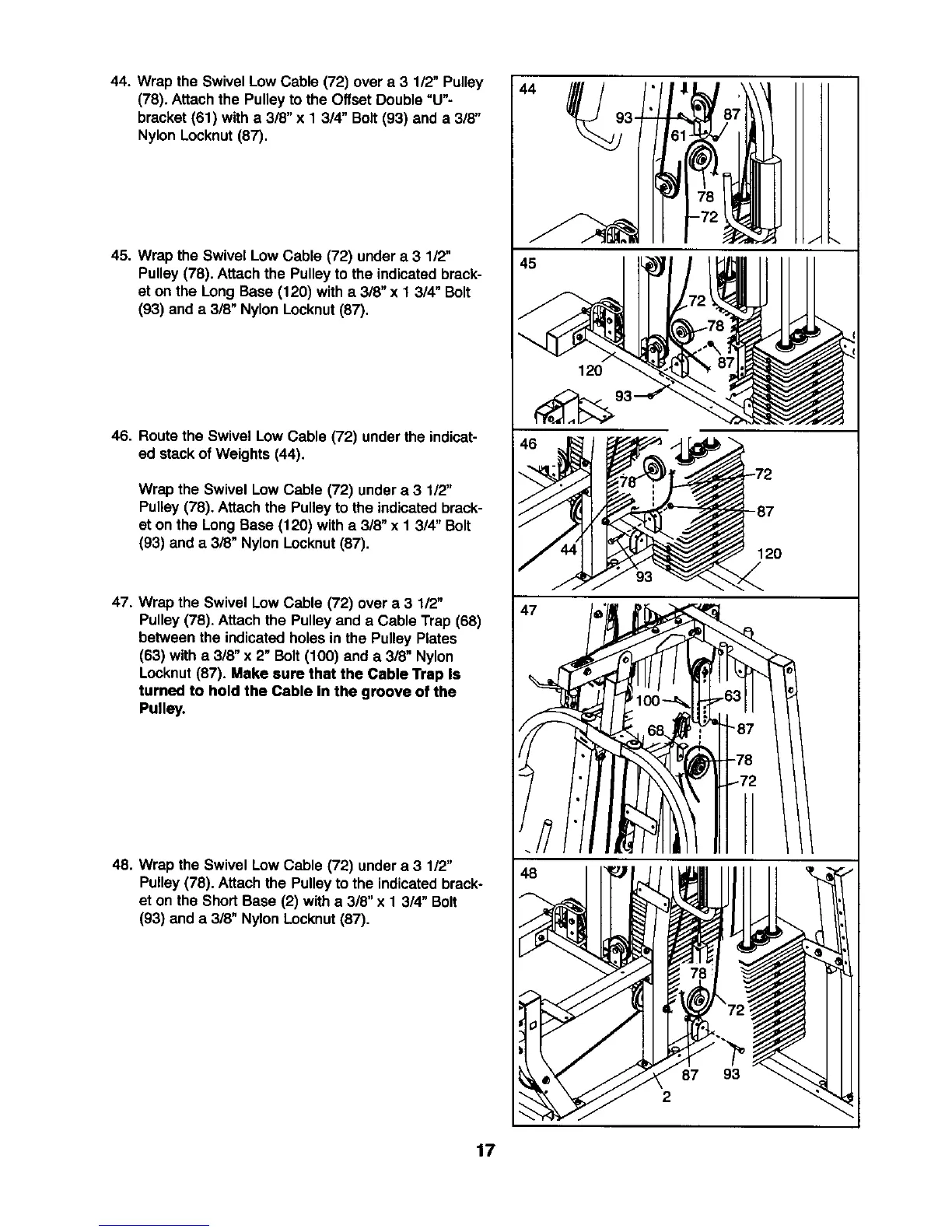

44. Wrap the Swivel Low Cable (72) over a 3 1/2" Pulley
(78). Attachthe Pulleyto the Offset Double "U"-
bracket (61) with a 3/8" x 1 3/4" Bolt(93) and a 3/8"
Nylon Locknut(87).
45. Wrap the Swivel Low Cable (72) under a 3 1/2"
Pulley (78). Attach the Pulley to the indicatedbrack-
et on the Long Base (120) with a 3/8" x 1 314"Bolt
(93) and a 318"Nylon Locknut(87),
46. Routethe Swivel LowCable (72) under the indicat-
ed stack of Weights (44).
Wrap the Swivel Low Cable (72) undera 3 1/2"
Pulley (78). Attach the Pulleyto the indicated brack-
et on the Long Base (120) with a 318"x 1 3/4" Bolt
(93) and a 3/8" Nylon Locknut(87).
47. Wrap the Swivel Low Cable (72) over a 3 1/2"
Pulley (78). Attach the Pulleyand a Cable Trap (68)
between the indicatedholes in the Pulley Plates
(63) with a 318"x 2"Bolt (100) and a 3/8" Nylon
Locknut(87). Make sure that the Cable Trap Is
turned to hold the Cable In the groove of the
Pulley.
48. Wrap the Swivel Low Cable (72) undera 3 1/2"
Pulley(78). Attach the Pulley to the indicatedbrack-
et on the Short Base (2) with a 3/8" x 1 3/4" Bolt
(93) and a 3/8" NylonLocknut(87).
44
45
f
120
J
47
o/
48
A
120
93
