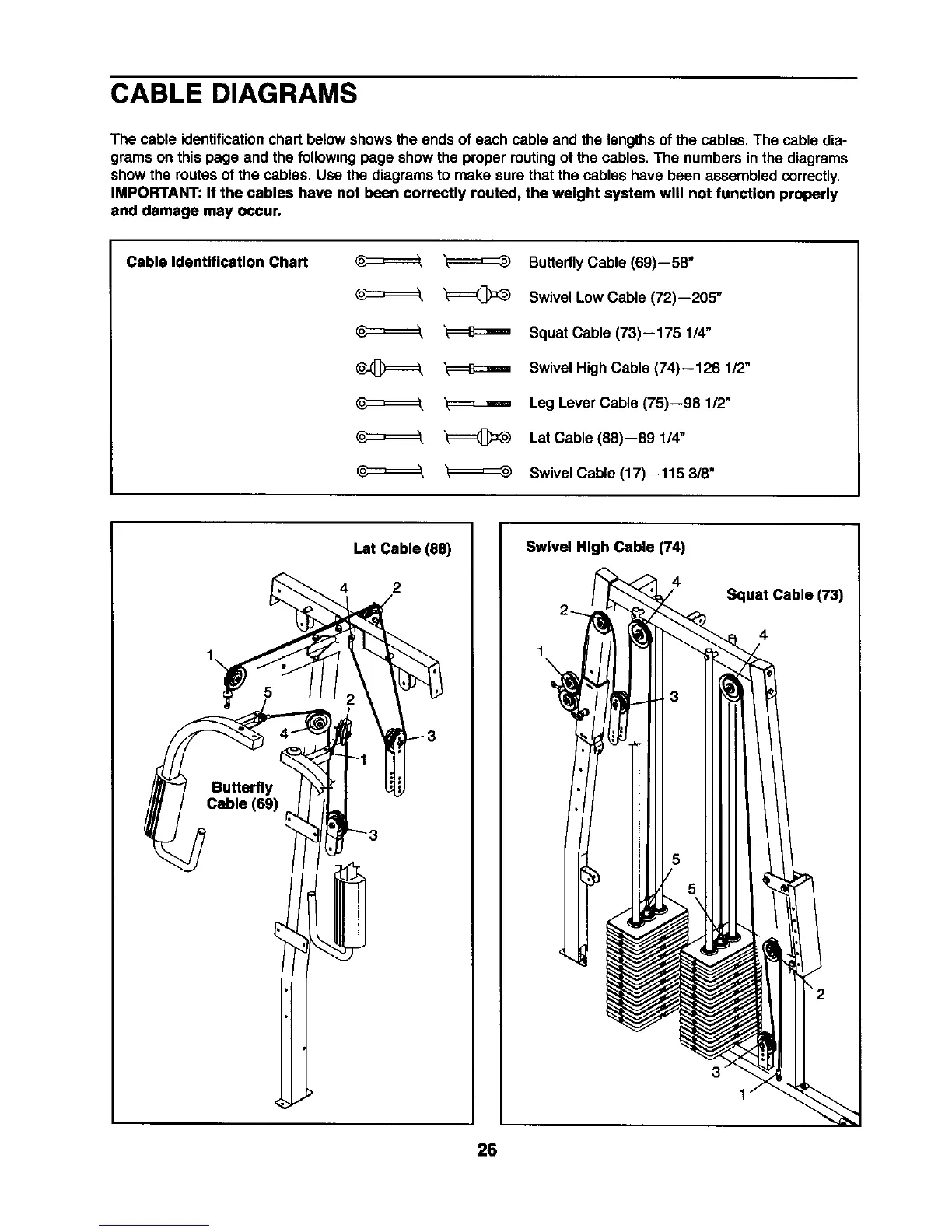

CABLE DIAGRAMS
The cable identificationchart below shows the ends of each cable and the lengthsof the cables. The cable dia-
grams on this page and the followingpage show the proper routingof the cables. The numbers inthe diagrams
show the routes ofthe cables. Use the diagrams to make sure that the cables have been assembled correctly.
IMPORTANT: If the cables have not been cor_=ctly routed, the weight system wnl not function properly
and damage may occur.
Cable Identification Chart
ButterflyCable (69)--58"
Swivel Low Cable (72)--205"
Squat Cable (73)--175 1/4"
Swivel HighCable (74)--126 1/2"
Leg Lever Cable (75)--98 1/2"
LatCable (88)--89 1/4"
Swivel Cable (17)--115 3/8"
I.at Cable (88)
4 2
Swivel High Cable (74)
4
1
Squat Cable (73)
4
I
26
