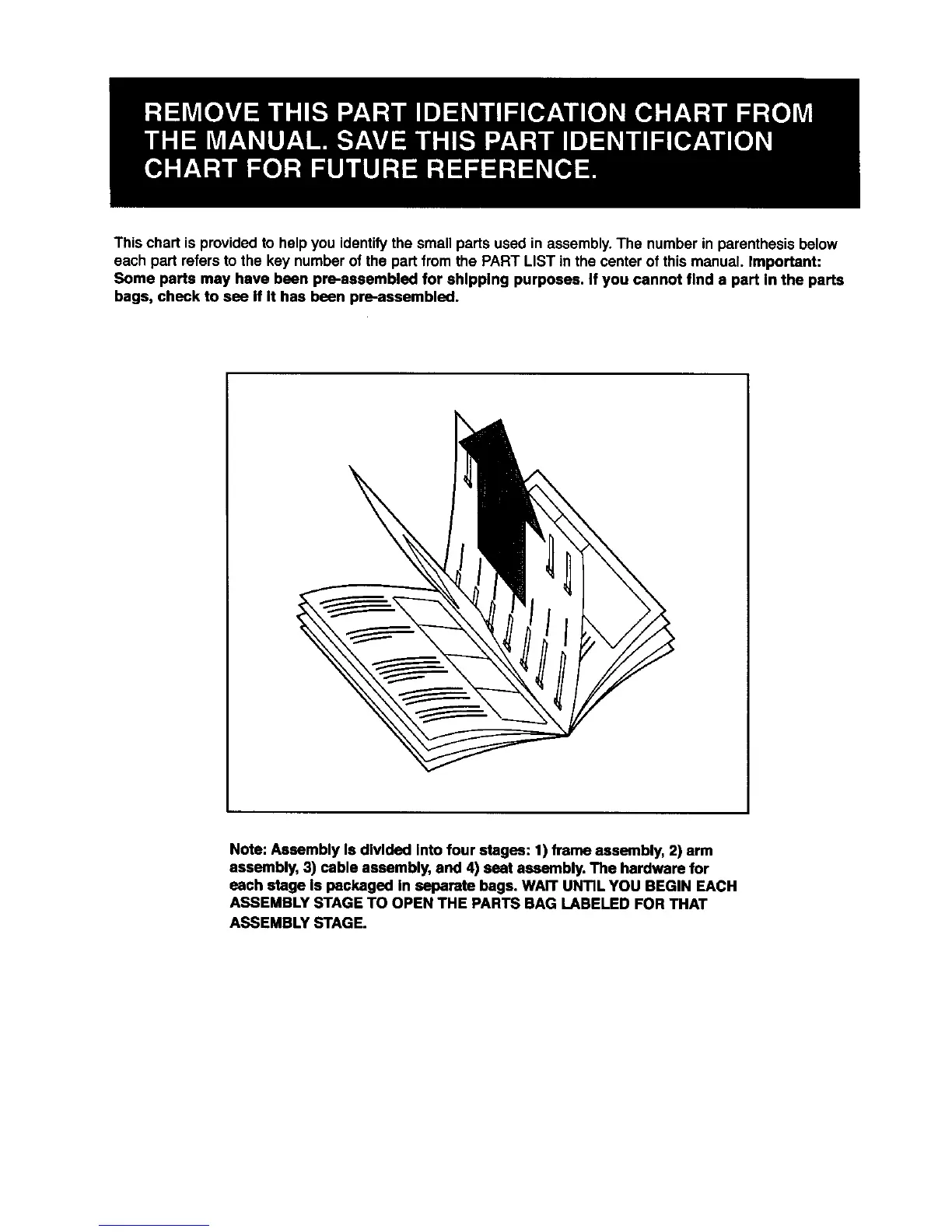

This chart is providedto helpyou identifythe small parts used in assembly.The number in parenthesis below
each part refers to the key number ofthe part from the PART LIST in the center of this manual. Important:
Some parts may have bean pre-aseambled for shipping purposes. If you cannot find a part In the parts
bags, check to sea if it has bean pre-assembled.
Note: Assembly Is divided Into four stages: 1) frame assembly, 2) arm
assembly, 3) cable assembly, and 4) seat assembly. The hardware for
each stage Is packaged In separate bags. WAIT UNTIL YOU BEGIN EACH
ASSEMBLY STAGE TO OPEN THE PARTS BAG LABELED FOR THAT
ASSEMBLY STAGE.
