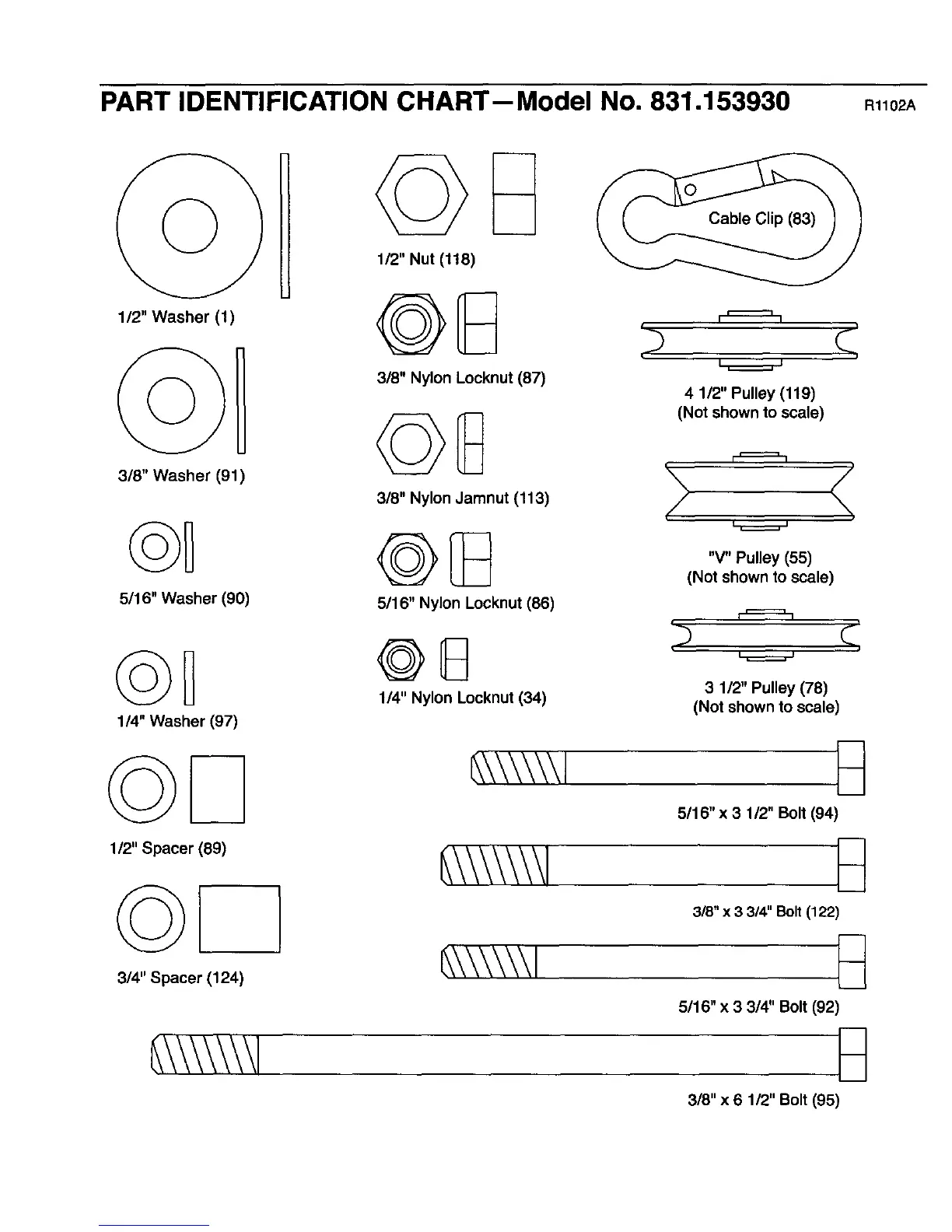

PART IDENTIFICATION CHART--Model No. 831.153930 R11oz_
1/2" Washer (1)
3/8" Washer (91)
5116" Washer (90)
I1
114 Washer (97)
1/2" Spacer (89)
3/4" Spacer (124)
1/2" Nut (118)
318" Nylon Locknut (87)
©8
3/8"Nylon Jamnut (113)
5/16" Nylon kocknut (88)
©8
1/4" Nylon kocknut (34)
4 1/2" Pulley (119)
(Not shown to scale)
r-=_==_
} (,
t-c_J
"V" Pulley (55)
(Not shown to scale)
r-====_
3 112" Pulley (78)
(Not shown to scale)
_\\\\\\\1
5/16" x 3 1/2" Bolt (94)
D
3/8" x 3 3/4" Bolt (122)
5/16" × 3 3/4" Bolt (92)
D
3/8" x 6 1/2" Bolt (98)
