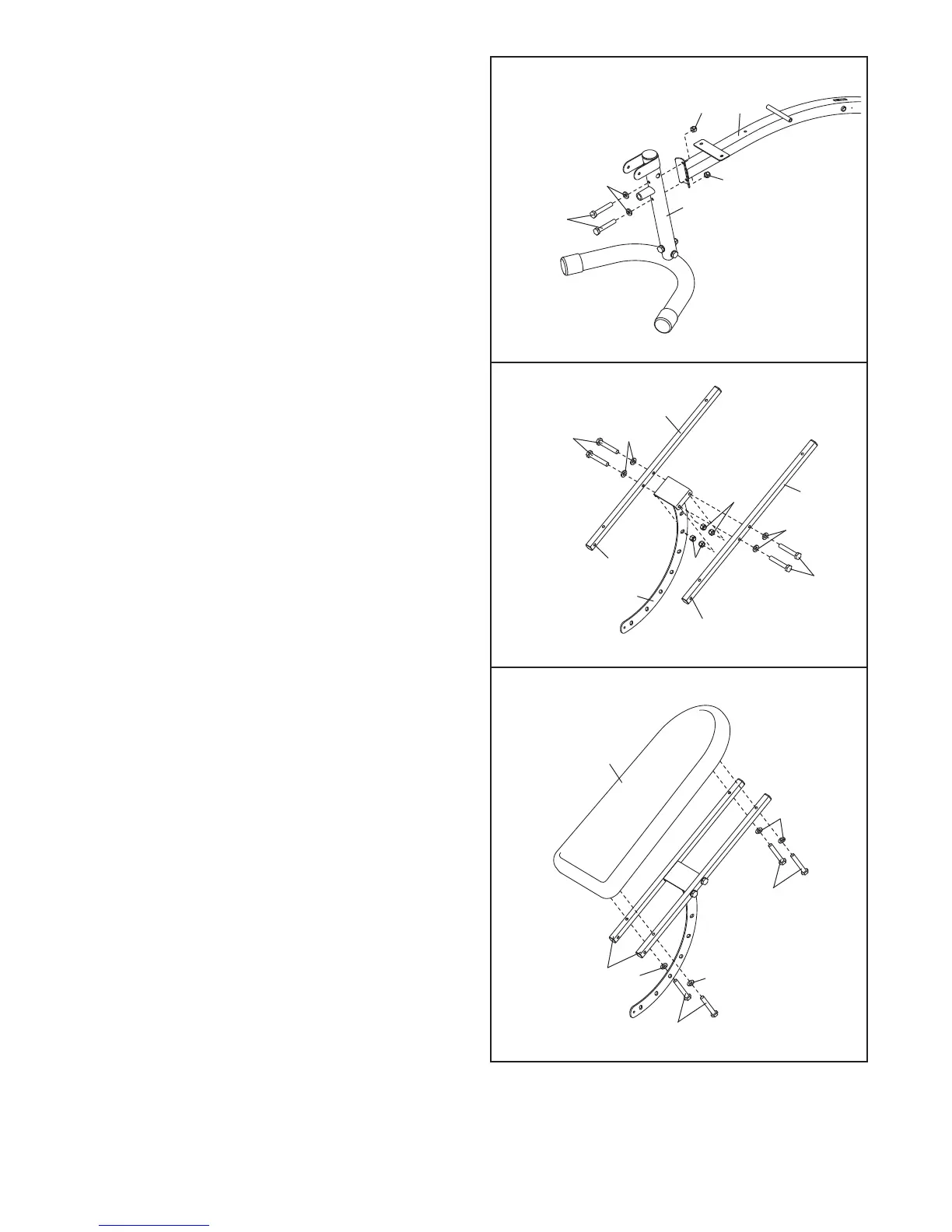

3. Attach the Front Leg (4) to the Frame (1) with two
M10 x 73mm Bolts (101), two M10 Washers (96),
a
nd two M10 Nylon Locknuts (94).
S
ee steps 1 and 2 and tighten the M10 Nylon
Locknuts (94).
4. Orient the the two Backrest Frames (7) as shown;
the indicated holes are closest to the edge of the
frame. Attach the Backrest Frames to the
Backrest Bracket (6) with four M10 x 45mm Bolts
(104), four M10 Washers (96), and four M10
Nylon Locknuts (94).
Do not tighten the Nylon
Locknuts yet.
4
3
7
7
94
96
96
104
104
94
101
1
6
Hole
Hole
94
94
96
4
5. Attach the Bench Backrest (9) to the Backrest
Frames (7) with four M6 x 39mm Screws (107)
and four M6 Washers (98). Do not tighten the
Screws yet.
5
98
98
98
107
107
9
7
