7

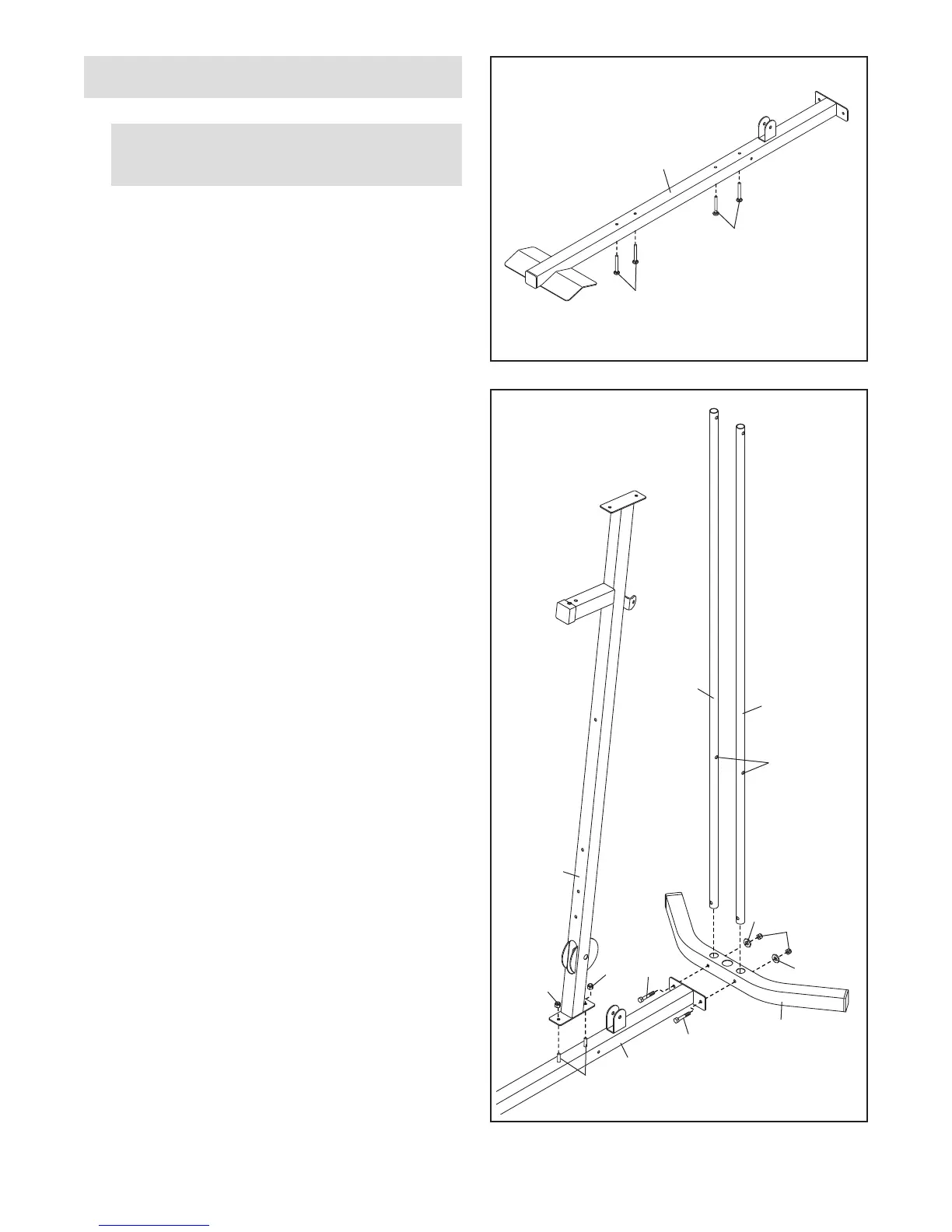

2. Orient the two Weight Guides (21) as shown, so
the indicated holes are closer to the lower ends.
Attach the Weight Guides and the Stabilizer (2) to
the Base (1) with two M10 x 67mm Bolts (71),
two M10 Washers (57), and two M10 Locknuts
(56). Fully tighten the Locknuts.
Attach the Upright (3) to the Base (1) with the two
indicated M8 x 63mm Carriage Bolts (64) and two
M8 Locknuts (58). Do not tighten the Locknuts
yet.
1.
Insert four M8 x 63mm Carriage Bolts (64) up
through the Base (1). Note: It may be helpful to
place a piece of tape over the bolt heads to
hold them in place.
T
o make assembly easier, read the assem-
bly tips on page 6 before you begin.
Frame Assembly
64
56
58
3
1
58
71
71
2
57
57
21
Holes
21
2
1
64
64
1
To Next Page
