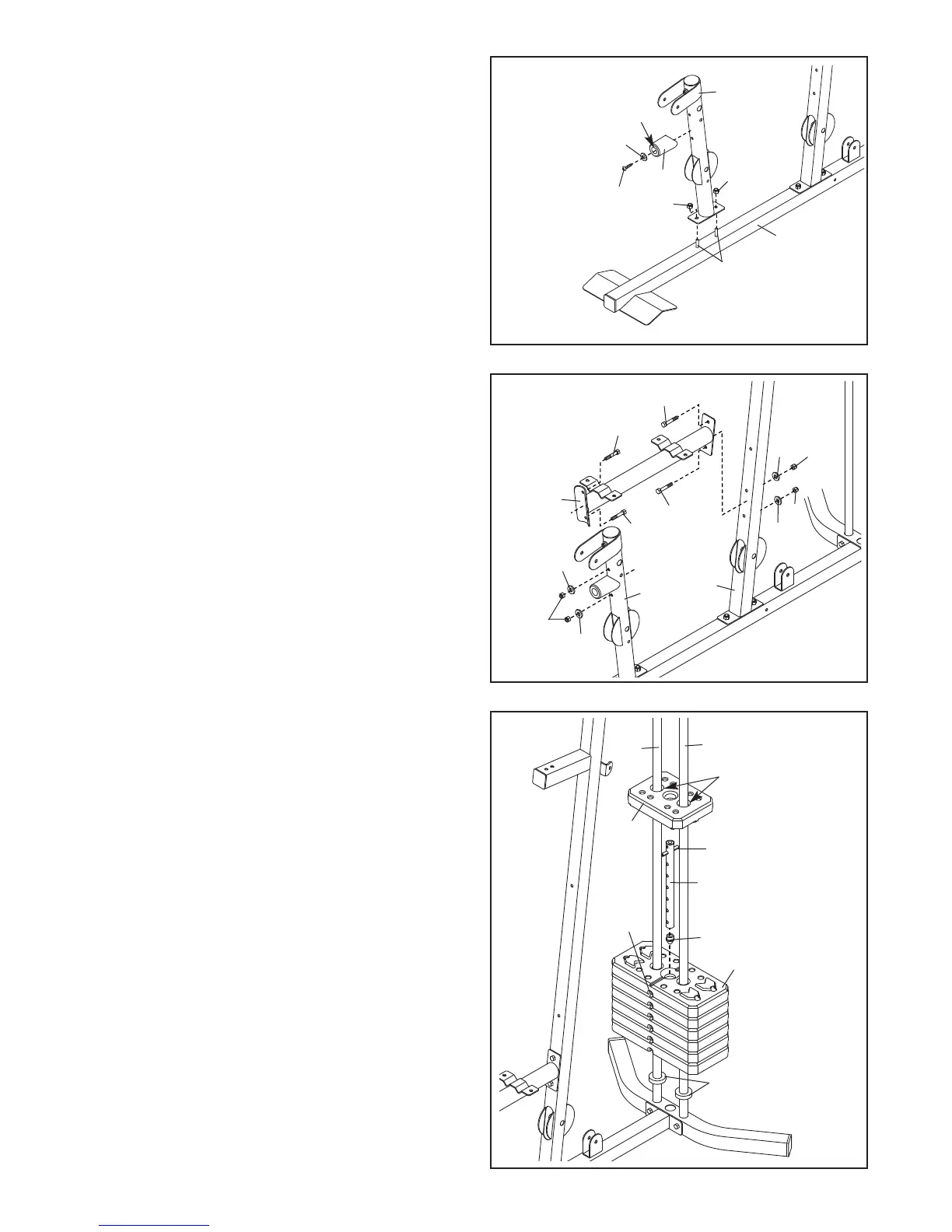

3. Attach the Front Leg (7) to the Base (1) with the
two M8 x 63mm Carriage Bolts (64) and two M8
Locknuts (58). Do not tighten the Locknuts yet.
Attach the Leg Bumper (60) to the Front Leg (7)
w
ith an M4 x 20mm Self-tapping Screw (69) and
an M4 Washer (33). Make sure that the end of
the Leg Bumper is pointing upward.
4. Attach the Seat Frame (6) to the Upright (3) with
two M8 x 65mm Bolts (68), two M8 Washers (59),
and two M8 Locknuts (58). Do not tighten the
Locknuts yet.
Attach the Seat Frame (6) to the Front Leg (7)
in the same way.
5. Slide the two Weight Bumpers (27) onto the
Weight Guides (21). Orient the six Weights (22)
with the pin holes on the bottom as shown. Slide
the Weights onto the Weight Guides.
Insert the Weight Selector Cap (23) into the
Weight Selector (24). Insert the Weight Selector
into the six Weights (22). Make sure that the pin
on the Weight Selector is oriented as shown.
Apply some of the included grease to the indicat-
ed holes in the Top Weight (25). Slide the Top
Weight onto the Weight Guides (21).
25
21
21
22
27
23
24
Pin
Pin
Hole
Grease
5
6
68
68
68
59
59
59
59
3
7
58
58
58
68
4
64
5
8
5
8
69
33
Upward
60
7
1
3
