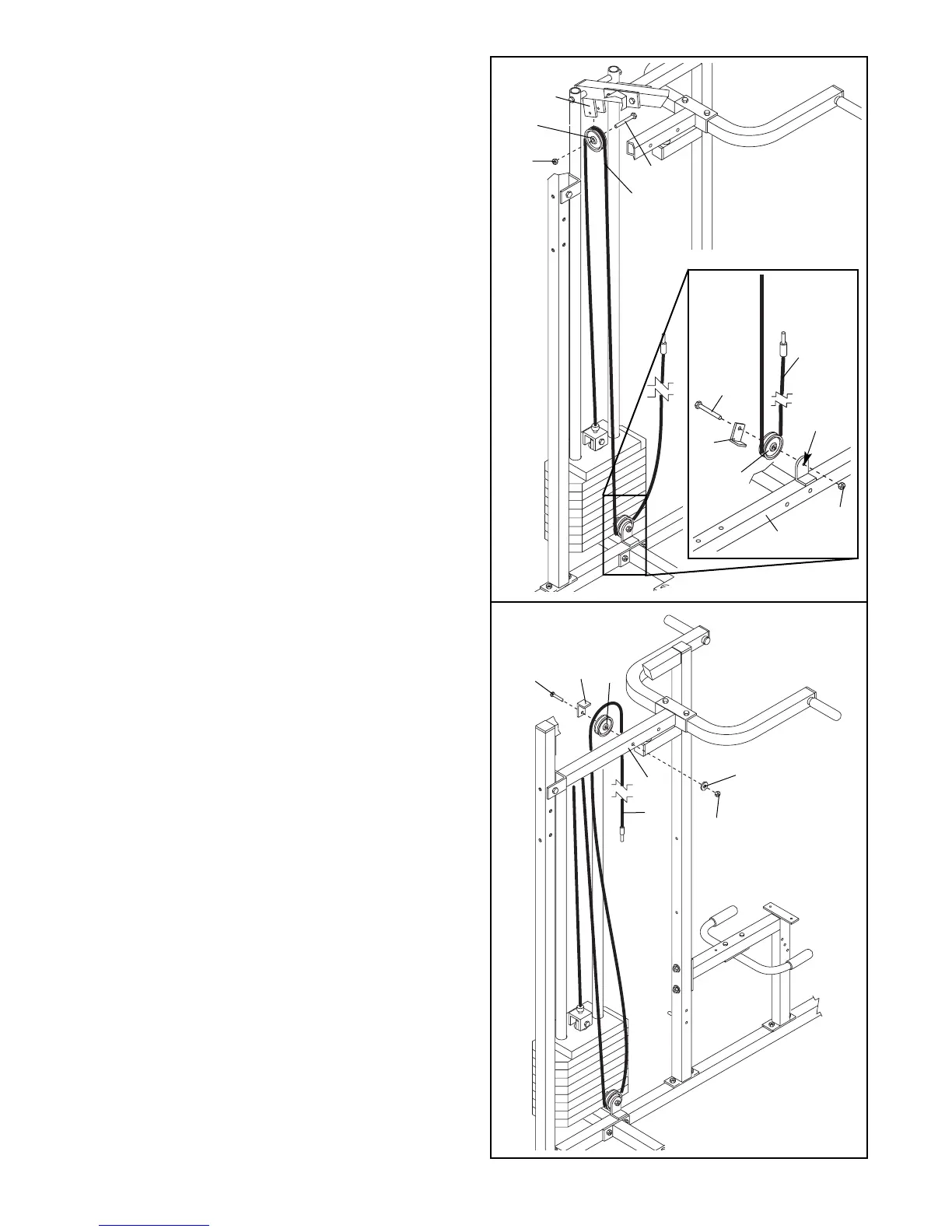

32. Wrap the Military Press Cable (72) around a
3 1/2” Pulley (15). Attach the Pulley to the Top
Frame (55) with a 3/8” x 2” Bolt (12) and a 3/8”
Nylon Locknut (21).
See the inset drawing. Wrap the Military Press
Cable (72) around a 3 1/2” Pulley (15). Attach the
Pulley and a Cable Trap (66) to the bracket on
the Stabilizer (5) with a 3/8” x 2” Bolt (12) and a
3/8” Nylon Locknut (21). Be sure that the Cable
Trap is turned to hold the Cable in place.
33. Wrap the Military Press Cable (72) around a
3 1/2” Pulley (15). Attach the Pulley and a Cable
Trap (66) to the Pivot Arm (101) with the 3/8” x
3 3/4” Bolt (88), a 3/8” Washer (9), and a 3/8”
Nylon Locknut (21). Be sure that the Nylon
Locknut is on the side shown and that the
Cable Trap is positioned to hold the Cable in
place.
